NanoPi Fire3 Development Board 1.4GHz Samsung S5P6818 Cortex-A53Ubuntu+Qt5.9

Availability: In stock, usually dispatched in 1 business day

Quantity	3+ units	10+ units	30+ units	50+ units	More
Price /Unit	$77.63	$76.04	$73.67	$70.50	Contact US

Buy it now Add cart

pls read the manual first :

Click Manual

Introduction:

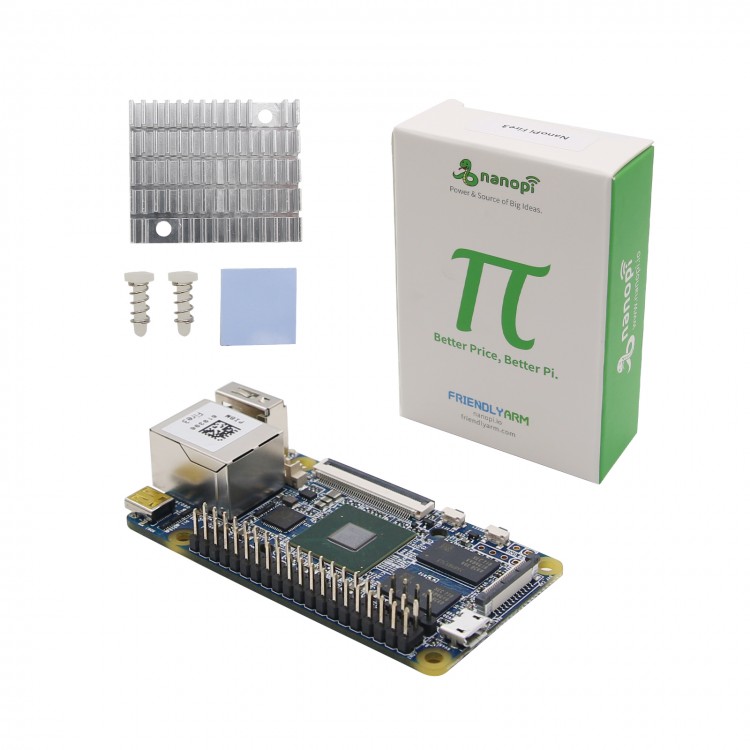

The NanoPi Fire3 is a high performance ARM Board developed by FriendlyElec for Hobbyists, Makers and Hackers for IOT projects. It features Samsung's Cortex-A53 Octa Core S5P6818@1.4GHz SoC and 1GB 32bit DDR3 RAM. It has a Gbps Ethernet port. It boots Android and Debian from a TF card. It integrates an HDMI and LCD interface. Its adoption of the Raspberry Pi's GPIO pin header makes it compatible with both Raspberry Pi's external GPIO modules and Arduino's shield boards. Its PCB dimension is 75 x 40 mm.

Hardware Spec

CPU: S5P6818, 1.4GHz
RAM: 1GBMB DDR3
Connectivity: Gbps Ethernet port
PMU Power Management: Implemented by a Cortex-M0 MCU, support software power-off, and RTC alarm power-on functions
USB 2.0 Type A x 1
Debug Serial Port/UART0 x 1
microSD Slot x 1
microUSB x 1: for data transmission and power input
LCD Interface: 0.5 mm pitch SMT FPC seat, for full-color LCD (RGB: 8-8-8)
HDMI: HDMI 1.4A, microHDMI(Type-D), 1080P60
DVP Camera Interface: 0.5mm spacing FPC socket. It includes ITU-R BT 601/656 8-bit, I2C and IO
GPIO: 2.54mm spacing 40pin, compatible with Raspberry Pi's GPIO. It includes UART, SPI, I2C, PWM, IO etc
Button: Power Button x 1, Reset Button x 1
LED: LED for Power Indication x 1, System LED x 1
RTC: RTC Battery Seat
PCB Dimension: 75 x 40mm
Power: DC 5V/2A
Temperature measuring range: -20℃ to 80℃
OS: Android, Debian and FriendlyCore(Linux Kernel 4.4 + Qt5.9 + OpenGL2.0)

Linux Kernel 4.4
npi-config: npi-config: system configuration utility for setting passwords, language, timezone, hostname, SSH and auto-login
networkmanager: manage network
system log output from serial port
welcome window with basic system information and status
auto-login with user account "pi" with access to npi-config
LibMali & OpenGL2.0 driver supported
Qt5.9 TLS with OpenGL hardware acceleration
HD video playing with hardware decoding
GStreamer 1.0 with VPU hardware acceleration
RPI.GPIO Support: work in progress, not ready yet
WiringPi Support: work in progress, not ready yet
