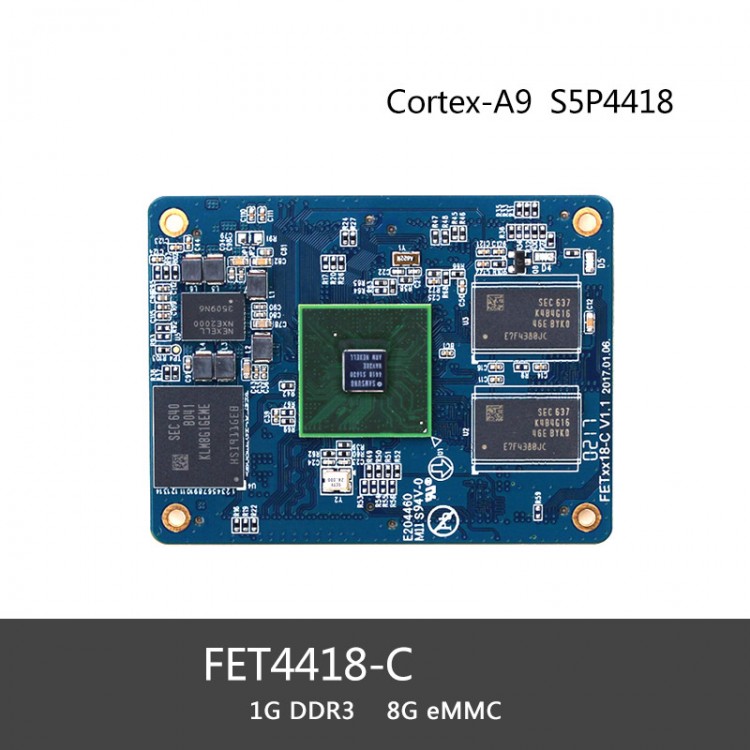

S5P4418 Core Board Quad-Core Module Development Board for Samsung A53 Android FET4418-C 8GB eMMC 1GB
Description:
FET4418-C core board is designed with Samsung CORTEX-A9 architecture quad-core processor S5P4418, CPU frequency up to 1.4GHz, using 32-bit RISC instruction set, 28nmHKMG low power consumption process, has powerful multimedia performance, supports 1080P hardware video editing Decoding and 3D graphics hardware acceleration, support LCD, HDMI, MIP, LVDS and other display interfaces, support DVP, MIPI dual camera. The core board comes standard with 1GB memory, 8 GBeMMC, compact size only 60 * 45MM, using four ultra-thin connectors with a combined height of 2MM, the number of pins is up to 320PIN. Support Android5.1, Linux3.4.39, QI5.6, QI4.8.6, suitable for human-computer interactive digital signage, handheld devices, medical electronics, smart home and other fields, is a high-performance, low-power embedded The core module.
Specifications:
Name: FET4418-C Core Board
Configuration: 1GB DDR3, 8GB eMMC
Operating Temperature Range: 0° C to +70 ° C
Features:
-Small and thin, with random design. The core board size is 60mm * 45mm, with 8-layer PCB immersion gold process. Using four ultra-thin board-to-board connectors with a combined height of only 2mm, the industry's exclusive anti-reverse insertion design effectively prevents misoperation. The core board reserves four 2.0mm fixing holes, making the vibration environment more reliable.
-Rich bus interface, expansion is more flexible. The number of pins on the core board is 320PIN, which leads all the CPU functions, supports 6 UART, 3 IIC, 3 SPI, 2 SD / MMC / SDIO, 3 IIS, 1 Gigabit Ethernet port, 16-bit data bus 14 Bit address bus.
-Four cores and eight cores are fully compatible. The core board fully considers the compatibility of the S5P4418 and S5P6818 processors. The two CPUs share a set of core board design solutions. Users can upgrade the 4418 core board to the 6818 core board without changing the bottom board.
-The powerful multimedia performance makes the display unique. Support 3D graphics hardware acceleration, 1080P video hardware encoding and decoding. Support RGB, LVDS, MIPI, HDMI and other display interfaces, the highest resolution can reach 2048 * 1280.
-Support dual screen, dual camera, open a new horizon. The core board supports the dual-screen different display, dual-screen simultaneous display, and picture-in-picture functions of various display interface screens. Support DVP, MIPI dual-channel camera, easy image acquisition.
-One-click SD card programming, OTA remote upgrade, production and maintenance are more convenient. The core board supports SD card system one-key programming, OTG programming, and supports OTA system remote upgrade.
-Lithium battery charge and discharge management system. The core board comes with a power management system that supports lithium battery charge and discharge management. Users do not need to redesign this part when designing the backplane. And support dynamic frequency modulation, product power consumption is lower.
-It is widely used in the fields of multimedia, medical treatment, digital signage, security, vehicle, finance, education, electric power, communication, clear energy home, consumer electronics, handheld devices, display control, etc.
Package Included:
1 x FET4418-C 1GB Core Board
