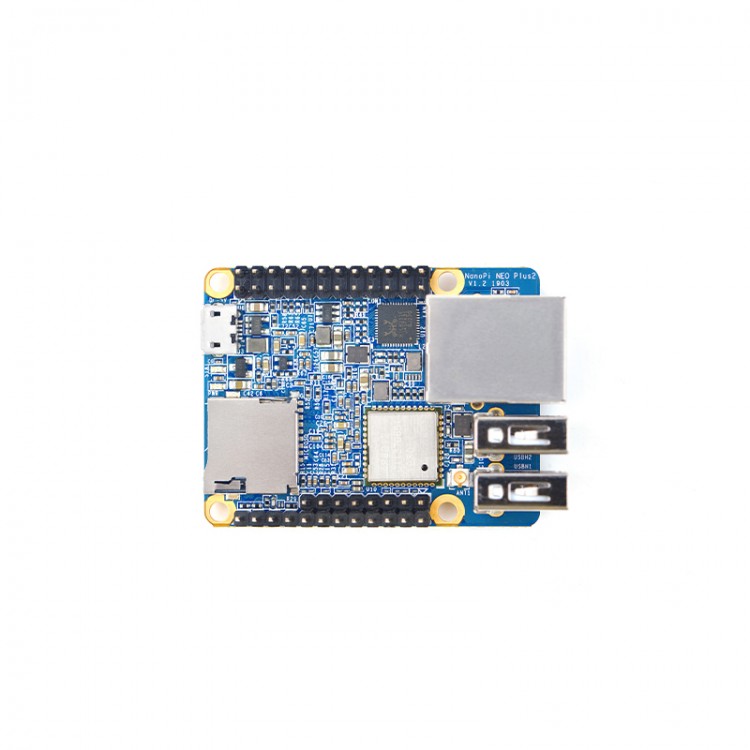

NanoPi NEO Plus2 H5 Development Board Wifi Bluetooth IoT Development Board (512MB RAM + 8GB EMMC)

NanoPi NEO Plus2 H5 Development Board Wifi Bluetooth IoT Development Board (512MB RAM + 8GB EMMC)

Download Materials:
1. WiKi tutorial (firmware introduction, instructions, operation steps, etc.)
http://wiki.friendlyelec.com/wiki/index.php/NanoPi_NEO_Plus2
2. System firmware
http://download.friendlyelec.com/nanopineoplus2
3. Schematic (in pdf)
http://wiki.friendlyelec.com/wiki/images/4/48/NanoPi_NEO_Plus2-20190328.pdf
4. Dimensions (dxf format)
http://wiki.friendlyelec.com/wiki/index.php/File:Dimensions_NanoPi_NEO_Plus2_V2_1907_PCB.rar

Product Features:
- High-speed storage and high-speed network high-performance board is made for DIY and born for the Internet
- 512MB RAM + 8GB eMMC; Gigabit Ethernet; Wifi and Bluetooth; USB 2.0*4
- Built-in H5. For Cortex-A53 quad-core Soc; 64-bit architecture; Mali-450 GPU; 1.5Ghz frequency; 8GB eMMC
- With a small size of only 40 x 52mm/1.6 x 2", the NanoPi NEO Plus2 has rich on-board resources: AP6212 WiFi & Bluetooth module, Gbps Ethernet and two USB hosts. It supports system-boot from a MicroSD card
- Complete GPIO programming library. After connecting to GIT, users can download a powerful assistant
- Safe and stable. 64-bit for Ubuntu Core Xenial and newly stable mainline kernel
- Aluminum heat sink has efficient heat dissipation performance. Tailor-made; pure aluminum refined; meticulous professional, well-designed; strong heat dissipation capability

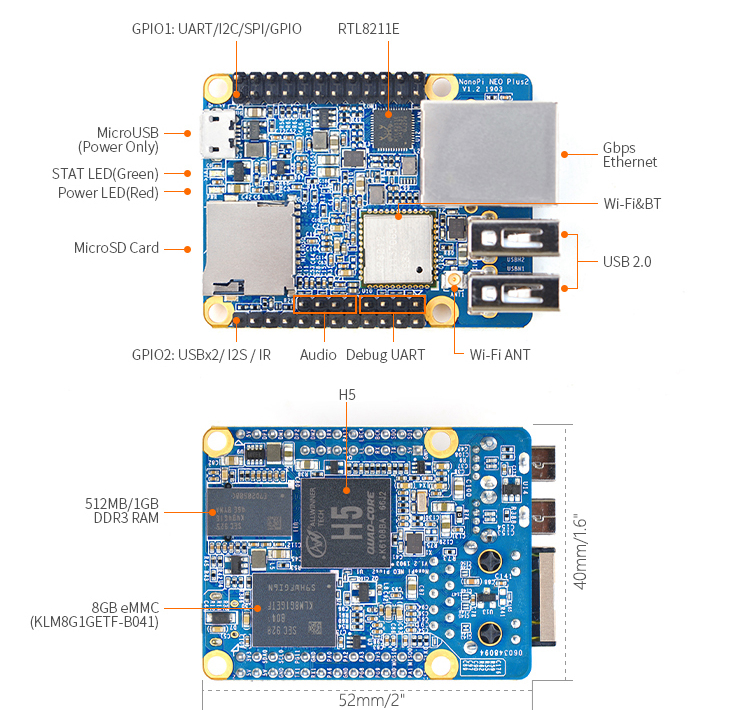

Characteristics of Hardware:
- For Allwinner H5, quad core, 64-bit, Cortex A53
- DDR3 RAM: 512MB
- Storage: 8GB eMMC
- Network: Gigabit Ethernet
- WiFi: 802.11b/g/n based on AP6212
- Bluetooth: Bluetooth 4.0 dual mode
- USB Host: 2 independent USB Host
- MicroSD card: support booting from MicroSD card and external memory card
- Audio input/output: 5-Pin, 2.0mm header
- Micro USB: Power supply input
- Debug serial port: 4Pin, 2.54mm header
- LED: 1x power indicator, 2x status indicators

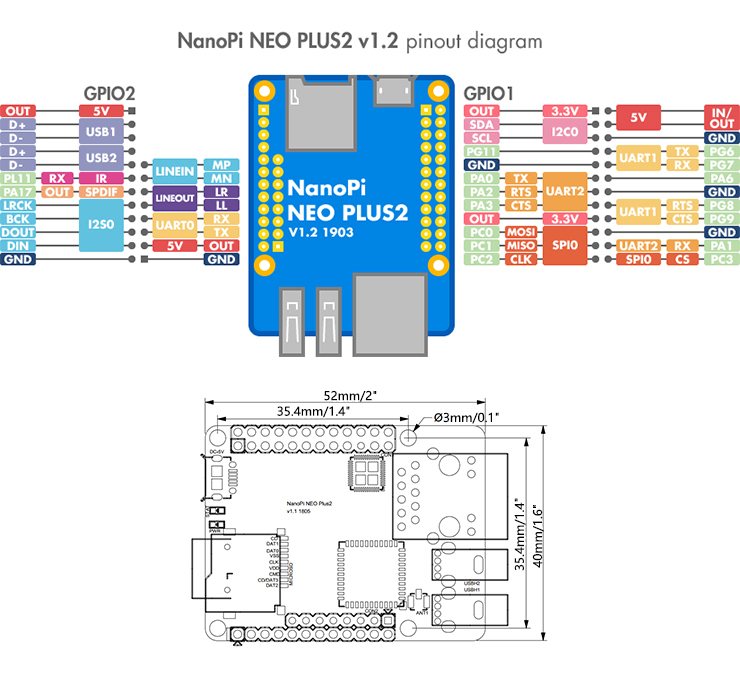

- GPIO1: 24Pin, 2.54mm double-row header, including UART, SPI, I2C and IO
- GPIO2: 12Pin, 2.54mm single-row header, including USB, IR receiver, and I2S
- Power supply: DC 5V/2A
- Dimensions: 40 x 52mm/1.6 x 2"
- Number of PCB layers: 6 layers

Software Features:
For UbuntuCore with Qt Embedded:
- Mainline kernel: for Linux-4.x.y
- For Ubuntu Core 16.04
- 64-bit OS
- Support our BakeBit Kit
- Support our NanoHAT OLED
- Pre-installed NanoHAT Motor Python library
- Pre-installed GPIO tool WiringPi
- Pre-installed GPIO tool RPi.GPIO
- npi-config: system configuration tool can set password, language, time zone, host name, SSH and automatic login tools for network management
- Automatically log in with the username "pi" and enable npi-config
- Gigabit Ethernet support
- Support WiFi and Bluetooth
- Support FA-CAM202 USB camera
- Supports audio playing and recording

For Debian for NAS Dock:
- Support for NAS Dock
- Pre-installed OpenMediaVault

Package Included:
- 1 x NanoPi NEO Plus2
- 1 x Quick Start Guide
- 1 x Antenna
