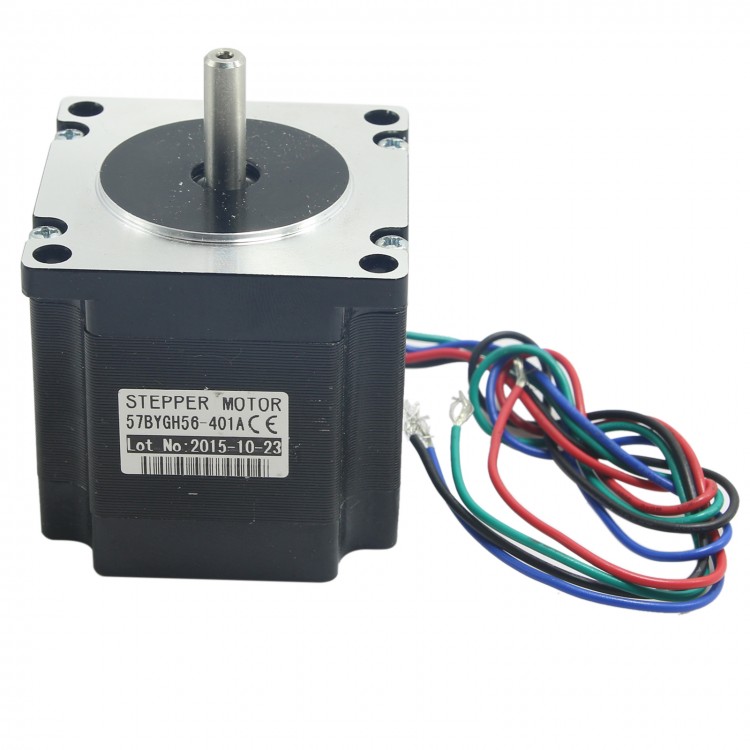

NEMA 23 Stepper Motor 2 Phase 12.6Kgcm 1.8Degre 4Leads 56mm 57BYGH56-401A
Parameters:
- Step Angle Accuracy: ±5%(full step, no load)
- Resistance Accuracy: ±10%
- Inductance Accuracy: ±20%
- Temperature Rise: 80℃CMax.(ratod current,2 phase on)
- Ambient Temperature: -10℃-+50℃
- Insulation Class: B
- Dielectric Strength: 500V AC for one minute
- Shaft Radial Play: 0.06Max.(450g-load)
- Shaft Axial Play: 0.08Max.(450 9-load)
Specifications:
|
Model |
Step angle |
Motor length |
Rated current |
Phase resistance |
Phase inductance |
Holding torque |
Lead wire |
Rotor inertia |
Weight |
|
|
Single Shaft
|
° |
L(mm) |
A |
Ω |
mH |
Oz-in |
Kgf.cm |
No. |
g.cm2 |
kg |
|
57BYGH56-401A |
1.8 |
56 |
2.8 |
0.9 |
2.5 |
175 |
12.6 |
4 |
300 |
0.7 |
