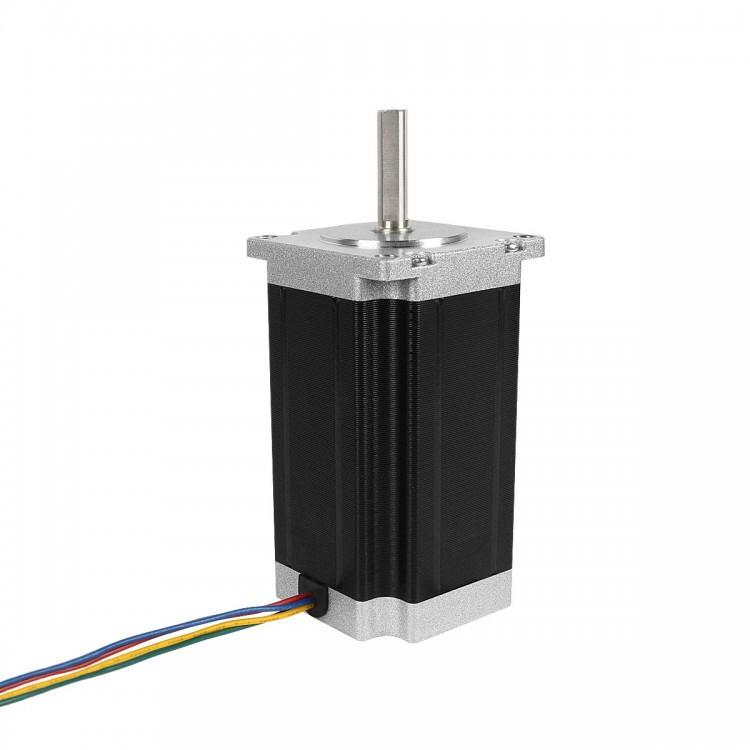

Nema23 4.6A Stepper Motor Step Motor 23HD10003Y-30B for Engraving Machines and Automation Equipment

Availability: In stock, usually dispatched in 1 business day

  • Price:$49.94
  • Price in reward points: 499 Reward Points: 5
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $48.94 $47.94 $46.44 $44.45 Contact US
Quantity:

Nema23 4.6A Stepper Motor Step Motor 23HD10003Y-30B for Engraving Machines and Automation Equipment

Features:

- The coil of the step motor is made of 100% pure copper enameled wire, which is wound by using imported technology, and the copper wire is evenly arranged. During long-term operation, there will be no problems such as excessive temperature rise, torque decay and loud noise.
- Imported bearings: The surface of its rotor is coated with imported epoxy resin glue to prevent burrs from adsorbing on the surface of the rotor. Motor magnetic field is more stable, and the torque is larger than that of similar products. The stepper motor enables smoother and more stable operation, with lower noise and longer service life.

Specifications:
- Body length: 100mm
- Step angle: 1.8 degree
- Phase: 2
- Rated voltage: 3.5V
- Rated current: 4.6A
- Phase resistance: 0.75Ω
- Phase inductance: 2.8mH
- Holding torque: 2800mN.m
- Detent torque: 100mN.m
- Rotor inertia: 660g.cm²
- Motor weight: 1.45kg

Package Included:
- 1 x Stepping Motor
