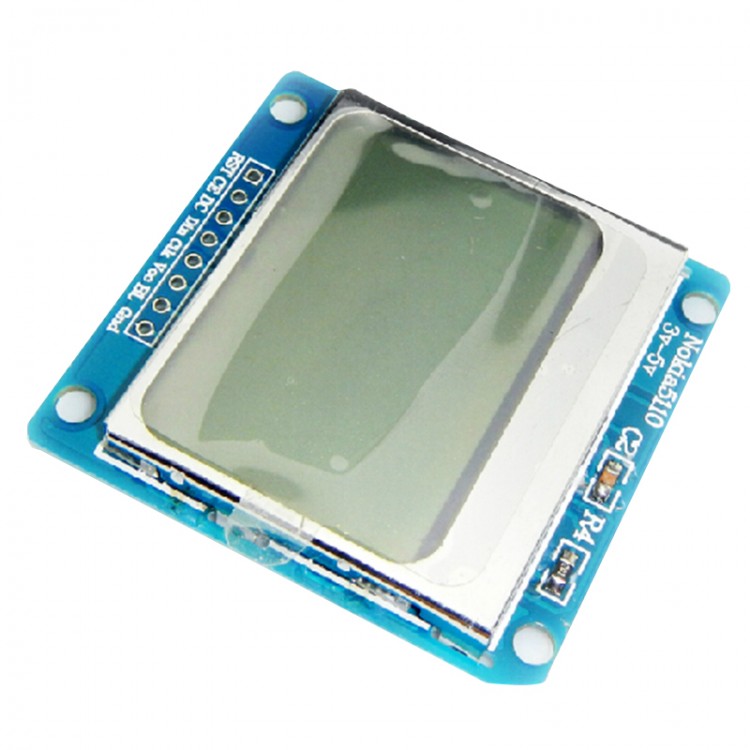

New 45 x 43mm 1.6'' LCD Module Blue Backlight Adapter PCB for Nokia 5110/3310
Description:
- These displays were used in old Nokia 5110/3310 cell phones.The LCD screen ,are sold by us, which is fineness and good quality.
- Model: Nokia 5110
- Color: Blue
- Material: PCB
- Application: 1.6" LCD display, perfect for Arduino DIY project
- Dimensions: 1.77 in x 1.69 in x 0.24 in (4.5 cm x 4.3 cm x 0.6 cm)
- Backplane have positioning holes in the four corners, up and down two rows of wiring ports, arranged as follows:
RST - Reset
CE - Chip Select
DC - data / instruction selection
DIN - serial data line
CLK - serial clock line
VCC - power input (3.3v and 5v can, after experimental verification, no problem)
BL - backlight control
GND - Ground
- Interface for serial SPI interface
Package includes:
- 1 x LCD Screen
- Note: Since the size above is measured by hand, the size of the actual item you received could be slightly different from the size above.Meanwhile, please be reminded that due to lighting effects, monitor's brightness / contrast settings etc, there could be some slight differences in the color tone of the pictures and the actual item.
