New Acrylic Case Automatic/Manual SCART SWITCH Distributor Converter 7 Input 1 Output Divider Board Device

New Acrylic Case Automatic/Manual SCART SWITCH Distributor Converter 7 Input 1 Output Divider Board Device

Features:

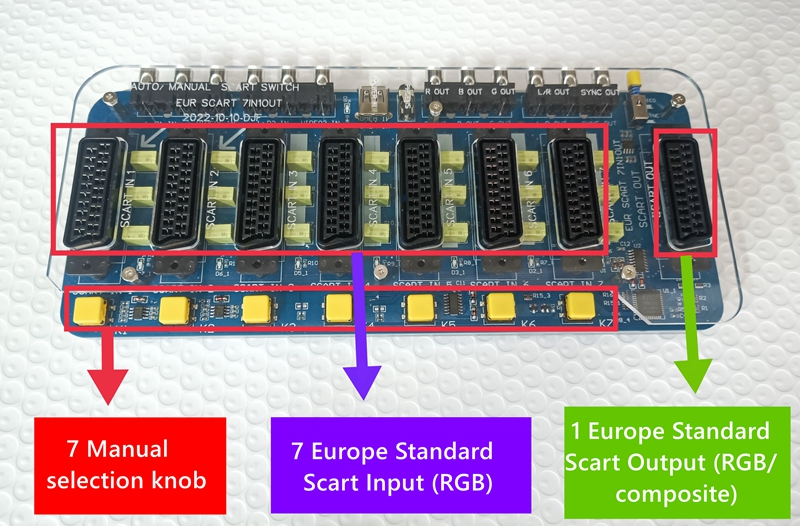

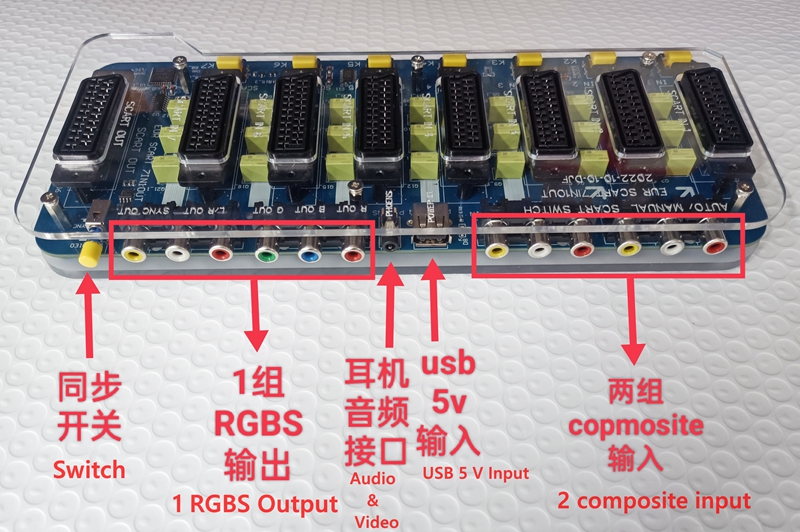

- Seven sets of European SCART inputs (RGB mode)+two sets of extended composite video inputs, one set of European SCART and one set of RGB outputs.
- It is applicable to a variety of SCART and composite video devices.
- The mechanical test runs straight through the working principle. The game screen is zero loss, and there is no compatibility problem. There is no interference when the multiple machines work at the same time.
- In the automatic mode, turn on the power switch of the game machine to automatically output. Multiple machines can work at the same time. The output display is when the power of the last machine is turned on.
- In manual mode, press the corresponding button to output the corresponding game console.
- With synchronization selection function, you can press the synchronization switch in case of interference such as unstable monitoring or TV picture jitter. Note: Synchronization switch cannot be used under composite video input.
- You can use a general mobile phone charger or other USB powered devices to use the power supply.

Precautions:

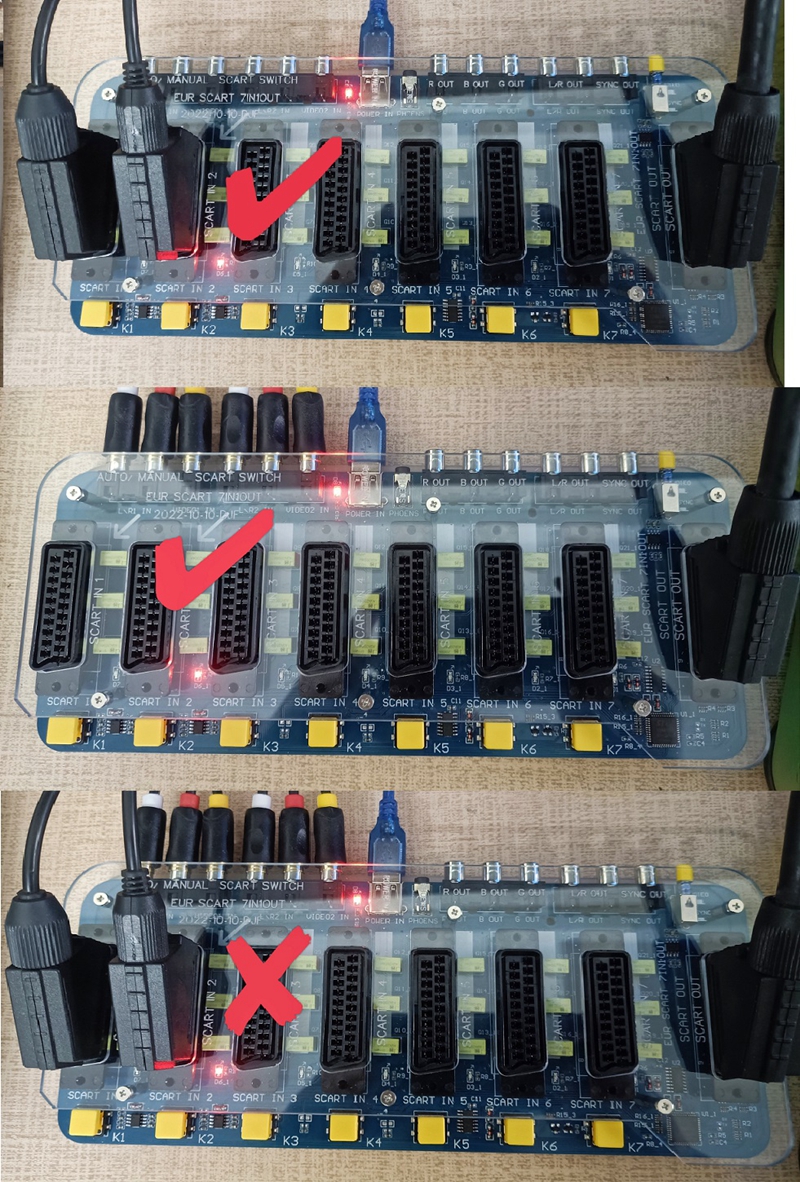

- The corresponding positions of the two groups of composite video inputs are SCART 1 and SCART 2. If composite video inputs are used, SCART cannot be connected to the device, nor can the connecting line be connected. With SCART 1/2, you cannot use composite video input, nor can you connect the cable.
- SCART output and RGBS output cannot be connected at the same time. Only one group of outputs can be selected. The connecting line cannot be connected to two displays at the same time. The display cannot be powered on.
- RGB interface output is generally used for monitors with RGBS interface, and it cannot be used for general TV.

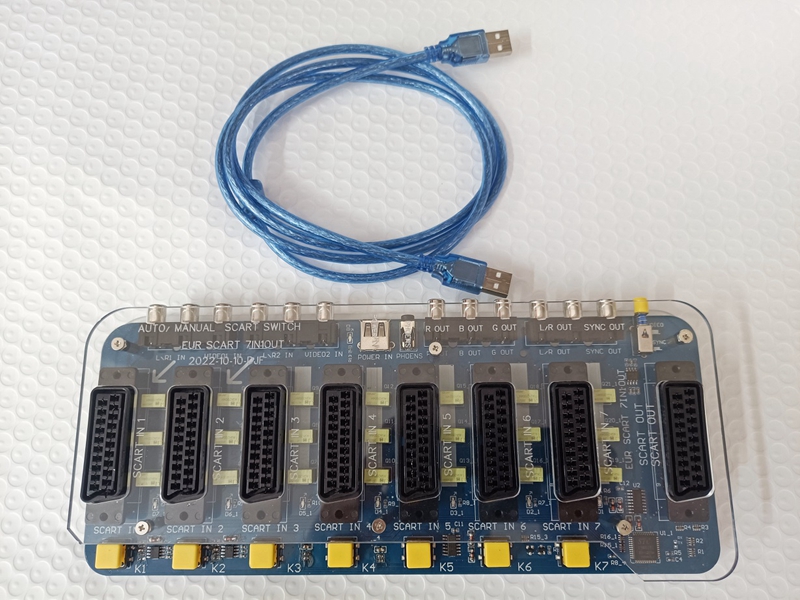

Package Included:
- 1 x Distributor Converter
- 1 x USB Cable
