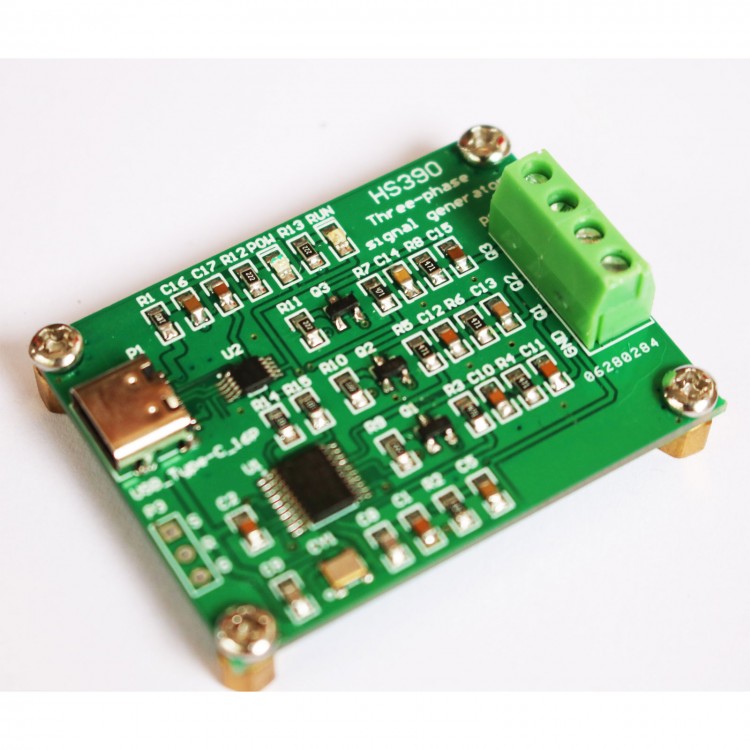

New HS390 USB 1Hz-5kHz Three-phase Sine Wave Signal Generator Module (USB) Support Amplitude Control
Description:
- HS390 is a three-phase sine signal generator that can also control amplitude. Up to 5.0KHz sine wave signal can be generated, easy to use, and frequency data can be input through the upper computer.
- Application: three-phase sine wave generation; signal generator
Specification:
- Output frequency range: 0.1 - 5000Hz
- Output frequency resolution: 0.1Hz
- Phase shift range: 0 - 360 degree
- Phase shift resolution: 1 degree
- Signal amplitude: 1 - 5VDC, maximum amplitude: 5.0Vpp
- Working voltage: 5VDC
- Working current: < 50mA
- Product size: 50 x 35 x 10mm
Interface Description and Related Operation:
- P1 interface (USB interface): USB Type-C
- P2 wiring definition:
1 Q3: C-phase signal output
2 Q2: B-phase signal output
3 Q1: A-phase signal output
4 GND: power supply negative (grounding)
Package Included:
- 1 x Signal Generator Module
