New Mini Micro Pix 32Bit Pixhawk 2.4.6 PX4 Flight Controller for RC UAV Multicopter

Availability: Out Of Stock

  • Price:$65.84
  • Price in reward points: 658 Reward Points: 7
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $64.52 $63.21 $61.23 $58.60 Contact US
Quantity:

New Mini Micro Pix 32Bit Pixhawk 2.4.6 PX4 Flight Controller for RC UAV Multicopter

Description:

Micro Pix flight controller, based on Pixhawk original hardware version, improved the circuit structure and define the expansion accessories interfaces to install and debug. There is no difference in main processor, sensor function and firmware compatibility with the original Pixhawk. Also the size is small an good for mini UAV and multicopters.

Specification:
- Weight: 13g
- Size: 38*38*11mm

Processor
- 32bit STM32F427 Cortex M4 core with FPU
- 168 MHz
- 256 KB RAM
- 2 MB Flash
- 32 bit STM32F103 failsafe co-processor

Sensor
- ST Micro L3GD20H 16 bit gyroscope
- ST Micro LSM303D 14 bit accelerometer / magnetometer
- Invensense MPU 6000 3-axis accelerometer/gyroscope
- MEAS MS5611 barometer

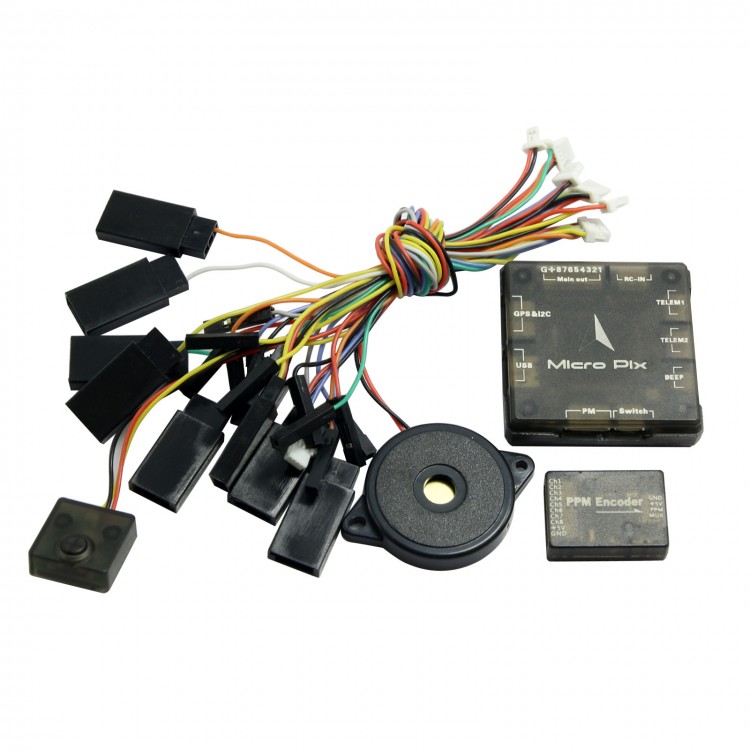

Package included:
- 1 x Micro Pix Flight Controller
- 1 x Pwm to PPM signal converter with case
- 1 x Buzzer
- 1 x Unlock switch
- 1 x Unlock switch
- 2 x Connecting line
