| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $25.66 | $25.13 | $24.35 | $23.30 | Contact US |
Product Details:
- Support volume adjustment independently, it is very convenient.
- Plug and play, no drive is needed for installation, easy to operate.
- Included 3 interfaces for different connections: coaxial /optical, 3.5mm headphone jack, 3.5mm line out for power amplifier.
- Unique design with brushed surface, it looks special and brings comfortable touch.
- Perfect helper for your broken sound card of devices, greatly save money for you.
- Built-in CM6533 chipset, high speed running CPU improves circuit circulation for better sound quality without distortion.
- Equipped with well-known MAXIN MAX9722 chipset, enough headphone amp thrust and balance timbre.
- Compatible with multiple computer system, such as windows, MAC OS, etc. Wide application in computers, PC, headphone power amplifier, and so on.
Specifications:

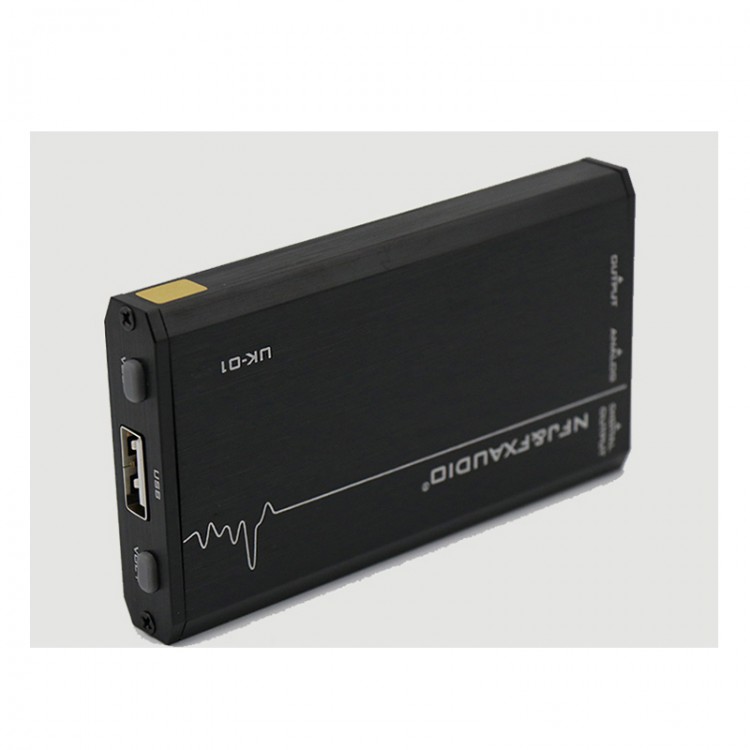

- Item Name: NFJ&FXAUDIO External Sound Card
- Model No: UK-01
- Color: Black
- Chipset: CM6533, MAX9722
- Sampling Rate: 16bit-24bit / 48kHz-96kHz
- Input: USB
- Output: Coaxial /Optical, 3.5mm jack, 3.5mm line out for power amplifier
- RMS Level: 0.9Vrms
- THD: 0.07%@16Ω, 0.05%@32Ω, 0.04%@64Ω
- SNR: 91dB
- Frequency Response: 20Hz-20kHz
- Headphone SNR: 91dB
- Headphone THD: 0.04%
- Headphone Output Power: 180mW@16Ω, 108mW@32Ω, 54mW@64Ω
- Power Supply: USB DC 5V 1A
- Computer System: Windows/MAC OS
- Size: 93.2 x 52 x 13 (mm)
- Gross Weight: 0.11kg
Package Included:
- 1 x External Sound Card
- 1 x USB Cable
- 1 x Manual
- 1 x Guarantee Card
- 1 x Color Box
