USB-8506 Original Dual Port LIN High Speed CAN USB Interface 784664-01 NI-XNET for NI

Availability: In stock, usually dispatched in 1 business day

  • Price:$1,760.49
  • Price in reward points: 17605 Reward Points: 176
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $1,725.28 $1,690.07 $1,637.26 $1,566.84 Contact US
Quantity:

USB-8506 Original Dual Port LIN High Speed CAN USB Interface 784664-01 NI-XNET for NI

Description:

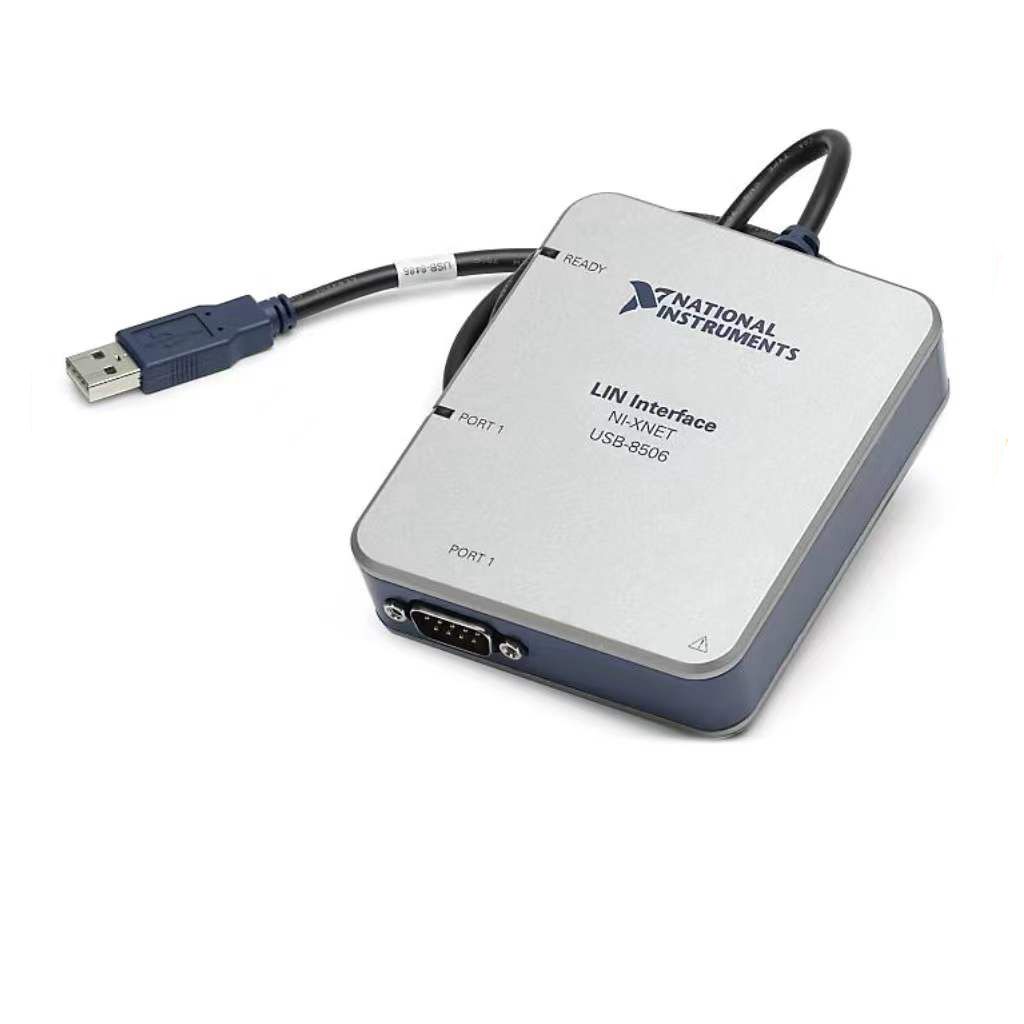

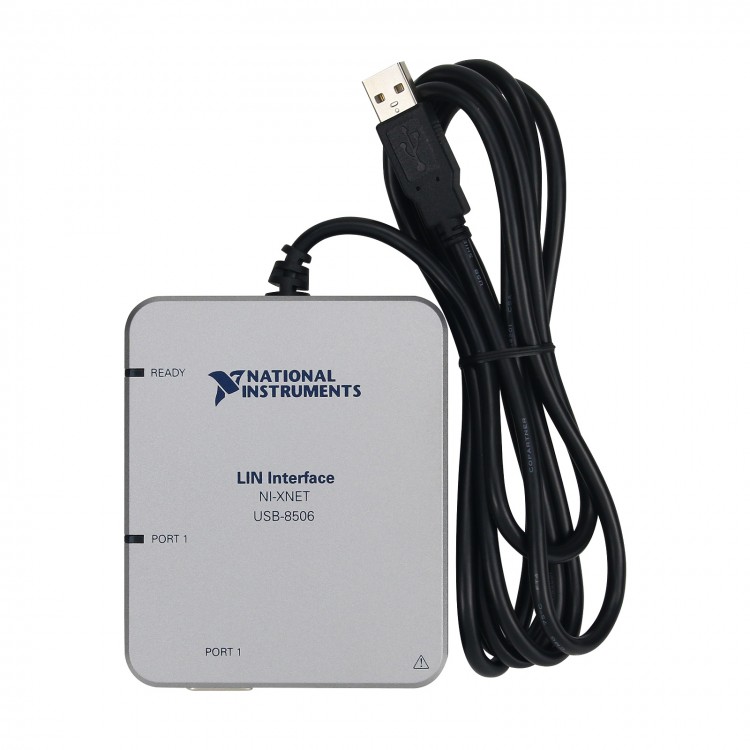

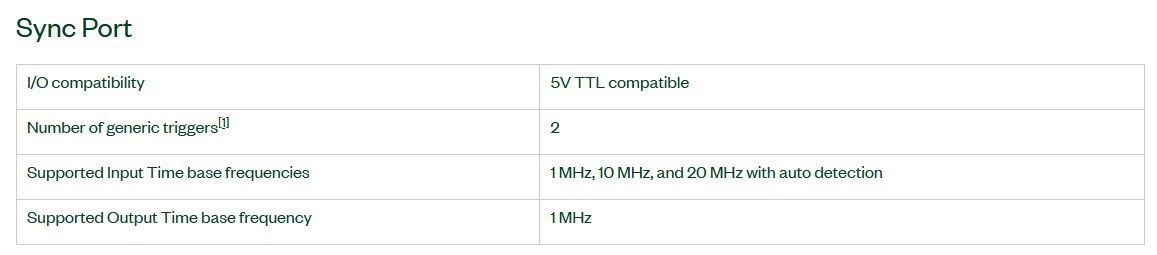

- The single port or dual port USB LIN interface device USB-8506 is a Local Interconnect Network (for LIN) for developing applications with for N-XNET drivers. The USB-8506T is powered by USB without external power supply. The USB-8506 is particularly suitable for applications that need to record or operate hundreds of LIN frames and signals, such as on-board data recording, bus monitoring, automatic control, etc. The DMA engine driven by the for N-XNET device enables the onboard processor to transmit CAN frames and signals between the interface and the user program without interrupting the CPU, thereby minimizing message latency and allowing the host processor time to perform other tasks. The USB-8506 has a three pin COMB I CON synchronization connector, which is used to trigger the internal hardware time base for synchronization of other devices.
- This document explains how to install and configure the USB-8506 LIN Interface Device:
  https://www.ni.com/docs/zh-CN/bundle/usb-8506-getting-started/resource/376702a.pdf

Features:
- Transceiver: for NXP TJA1028
- Max baud rate: 20 kbps

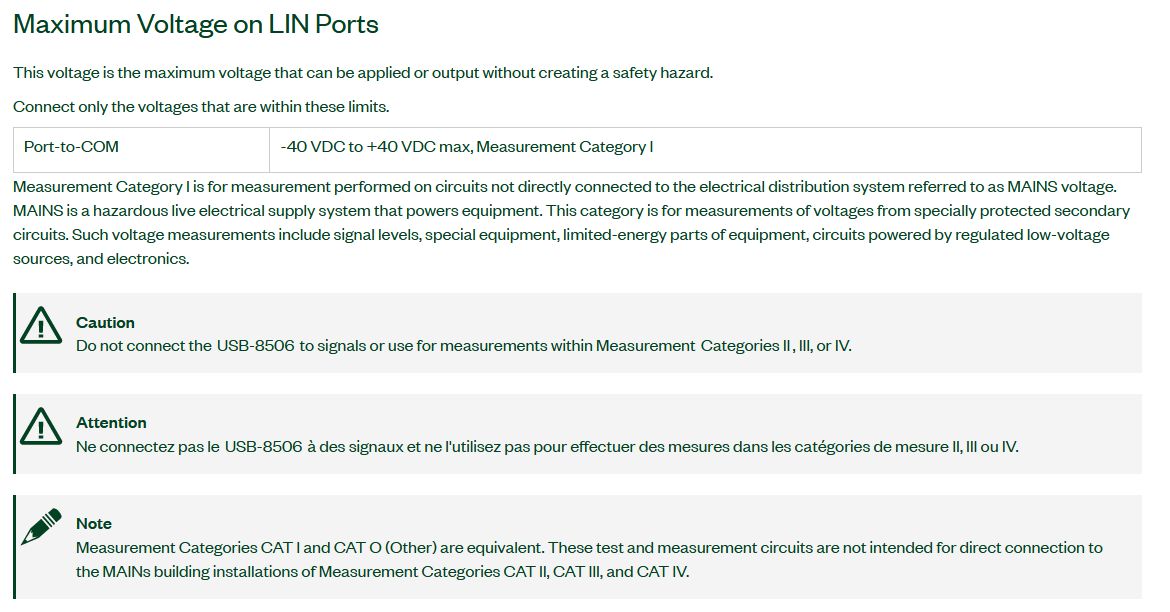

- Battery voltage (VBAT) power requirement (always required) Input Voltage: +8 VDC to +18 VDC
- Typical power consumption from VBAT (tested under VBAT = +12 V)
  Normal mode: 14 mA (with on board termination enabled)
  Standby mode; 7 mA (with on board termination disabled)
  Sleep mode: 290 µA

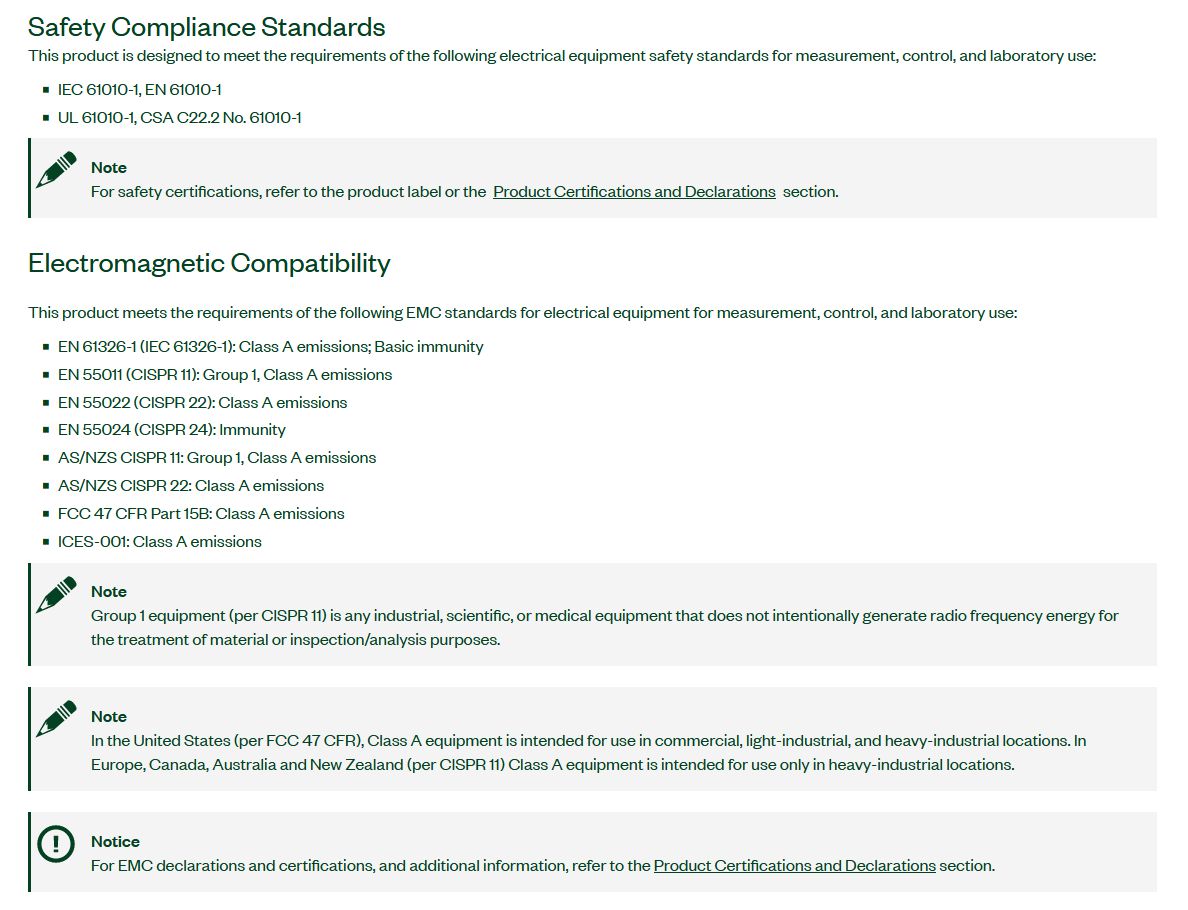

Parameters:

- Specifications are typical at 0 °C to 55 °C unless otherwise noted.
- USB 2.0 High-Speed
- Input voltage: 4.5 V min, 5.25 V max
- Working mode current: 500 mA maximum, 200 mA typical (2 ports), 180 mA typical (1 port)
- USB suspend: 2.5 mA maximum
- Operating environment:
  Ambient temperature: 0 °C to 55 °C
  Relative humidity: 10% to 90%, noncondensing
  Maximum altitude: 2,000 m (800 mbar) at 25 °C ambient temperature
  Indoor use only.
- Storage environment:
  Ambient temperature: -20 °C to 70 °C
  Relative humidity: 5% to 95%, noncondensing
  Pollution Degree: 2
- Dimension:
  1 port: 8.38 cm x 10.29 cm x 2.49 cm (3.30 in. x 4.05 in. x 0.98 in.)
  2 port: 9.27 cm x 10.29 cm x 2.49 cm (3.65 in. x 4.05 in. x 0.98 in.)
- Weight:
  1 port: 207 g (7.30 oz)
  2 port: 215 g (7.58 oz)

Package Included:
- 1 x USB CAN Interface

Note:
- Battery is not included.
