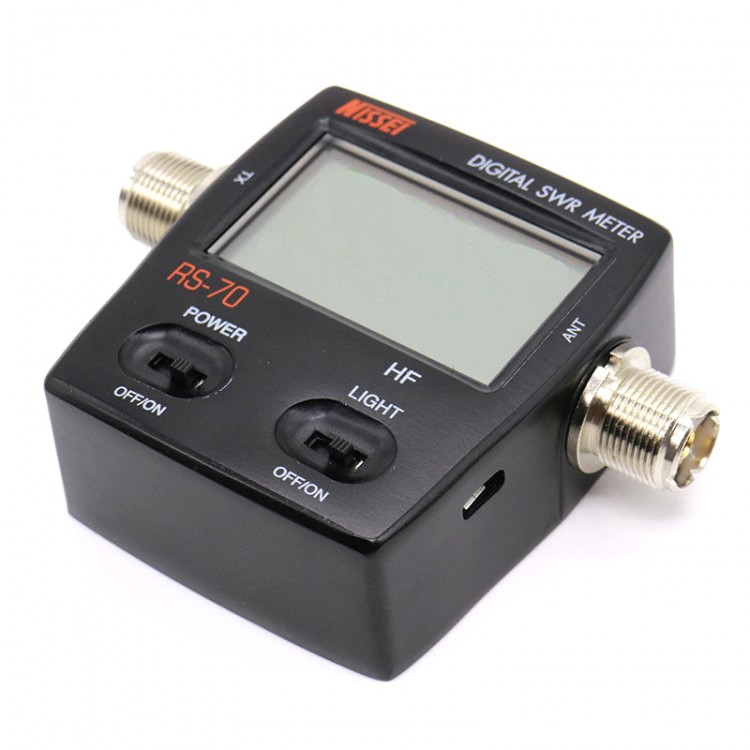

NISSEl RS-70 Digital SWR & Power Meter 1.6-60 Mhz HF 200W For 2 Way Radios

Availability: In stock, usually dispatched in 1 business day

  • Price:$92.12
  • Price in reward points: 921 Reward Points: 9
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $90.28 $88.44 $85.67 $81.99 Contact US
Quantity:

NISSEl RS-70 Digital SWR & Power Meter 1.6-60 Mhz HF 200W For 2 Way Radios

Main Features:
1.Forward/Reversed/VSWR ration in one push button.
2.LED backlight display for easy reading.
3.Powered by AAA batteries/ external USB port.
4.Applicable rechargeable battery.
5.Micro USB-DC 5V output (not include adapter).
6.Convenient control layout for ease operation.

Specifications:
- Frequency range: 1.6-60 Mhz
- Power range:0-200W +/- 5%
- Testing functions: Fwd/Rev Power, SWR
- Insertion loss: 0.3dB or lower
- Impedance: 50 ohm
- Power source: battery "AAA" or Micro USB port
- Connector: "M" type or "N" type (we will send M connector for default, please contact us if you need N connector)
- Dimension: 70W x 78H x 30D mm
- Net Weight: 220g (no batteries)

Measurement:
1, Apply output of transceiver to "TX" and antenna or load to "ANT".
2."POWER" on for ready to use.
3.LCD display show simultaneously "Fwd/Rev Power and SWR".
4.For back-light, please switch "LIGHT" to "ON".
No function in 30 seconds, the backlight will automatically off.
Once PTT launched, the backlight will be back.

Battery installation:
1.Remove the black screw from the cover to open the rear panel.
2.Install 2 pcs "AAA" batteries.
3.Can be used with alkaline or Ni-Ca, Ni-MH rechargeable battery.
4.This unit has no built-in charging circuitry.
5.Be sure to correct polarity of battery.
6.Remove the battery if the unit won't be used in long period.

Package includes:
- 1x RS-70
