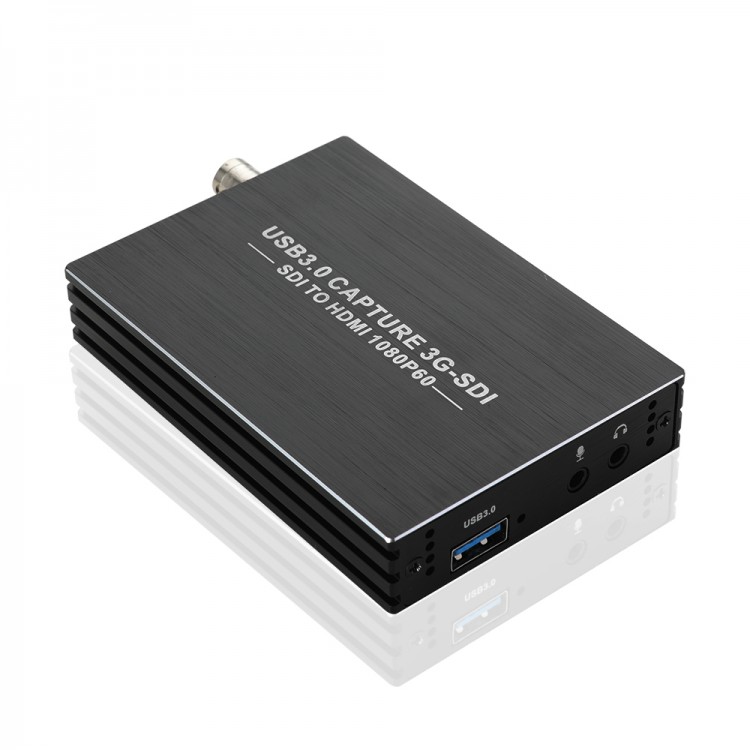

NK-M006 USB3.0 3G-SDI Video Card SDI To HDMI 1080P60 Game Video Acquisition Card For Windows Linux

NK-M006 USB3.0 3G-SDI Video Card SDI To HDMI 1080P60 Game Video Acquisition Card For Windows Linux

Description:
3G-SDI video card, it is easy to carry, have a superior performance,superior compatibility, simple installation and many other features. It can collect one 3G-SDI input, output HDMI 1080p and USB 1080p60 signals. The SDI video collection meets UVC and UAC standard, without having to install drivers and settings, the real PnP, easy to use.

Features:
- No need to install a driver, and it is truly PnP
- For Windows, Linux, OS X operating systems
- USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0
- The process of video and audio is done by the dongle and will not occupy the CPU
- It can collect one single channel SDI video signals
- It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically
- Support SD-SDI/HD-SDI/3G-SDI input
- Support SDI TO HDMI 1080p60 (HDMI loop output 1080p60)
- Support MIC input and audio output

Specifications:
- Host Interface: USB3.0, *300-350MB/s, USB2.0, *40MB/s
- Input Interface: SDI interface. SDI Input Formats: SD-SDI,HD-SDI, 3G-SDI
- HDMI Output Formats: 480i, 480p, 576i, 576p, 720p, 1080i, 1080P
- USB3.0 Output Formats Resolutions: 640x360/800x450/1280x720/960x540/1920x1080
- Frame Rate: 30/40/48/50/59.94/60 fps
- Size: 112x72x19mm (LxWxH)
- Weight: 130g
- Power consumption: ≤2.5W
- Working Temperature: 0 to 50℃
- Storage Temperature: -20℃ to 70℃
- Storage Humidity: 5%-90%

Package Included:
- 1 x Set of 3G-SDI Box
