NMRF 550MHz (510-570MHz) Band Pass Filter Ultra-Small RF Bandpass Filter FBP-550 with SMA Connector
Features:
- Ultra-small size
- Low insertion loss
- Excellent selectivity
- High out-of-band rejection
- High power handling
- Application: 510~570 MHz image transmission receiver dedicated, laboratory and other highly selective applications
Specifications:
- Model: FBP-550
- Impedance: 50 Ohms
- Center frequency: 550 MHz
- Center frequency insertion loss: 2.0～2.5 dB at 550 MHz
- Bandwidth (3 dB): 500 to 585 MHz
- Bandwidth (30 dB): 430 to 700 MHz
- Greater than 50 dB Stop Band: DC to 350 MHz & 850 to 1600 MHz
- Maximum Carrying Power: 10 W (40 dBm)
- Interface: SMA-M and SMA-F
Package Included:
- 1 x Filter

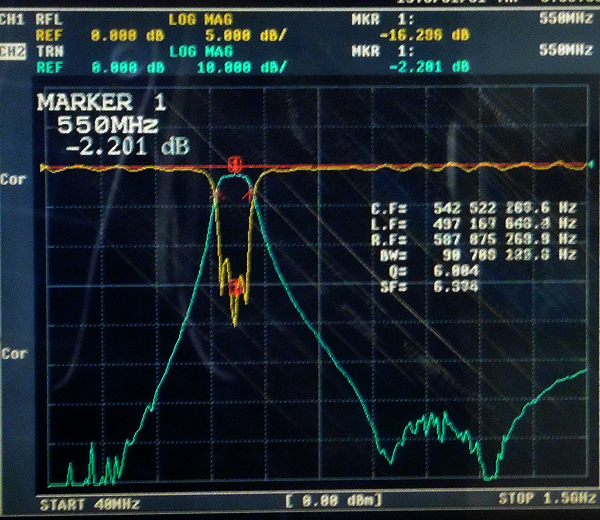

Insertion Loss Chart:

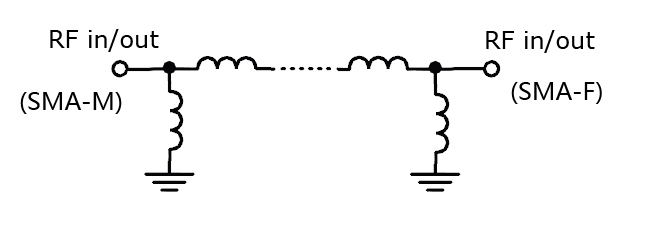

Circuit Mode Diagram (both ports are short-circuited to ground, please pay attention when applying):
