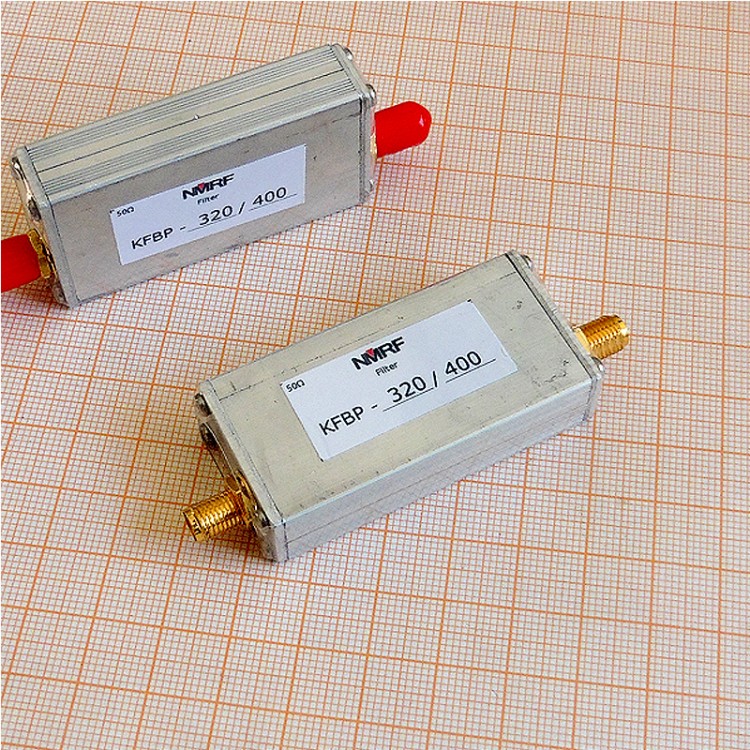

NMRF KFBP-320/400 Band Pass Filter 320-400MHz UHF RF Bandpass Filter 50Ω with SMA Connector
Description:
The passband covers 320-400MHz UHF communication band. It can effectively eliminate signal interference from medium-wave, long-wave, FM radio and television stations. It has ultra-low insertion loss and carries a minimum power of 2W. In addition, it can be used for output filtering of low-power transmitters.
Specifications:
- Model: KFBP-320/400
- System Impedance: 50 Ohms
- Center frequency: 360 MHz
- Center frequency insertion loss: < 5 dB
- Bandwidth (3dB): 320～400 MHz
- Maximum carrying power: 2 W (33 dBm)
Package Included:
- 1 x Filter

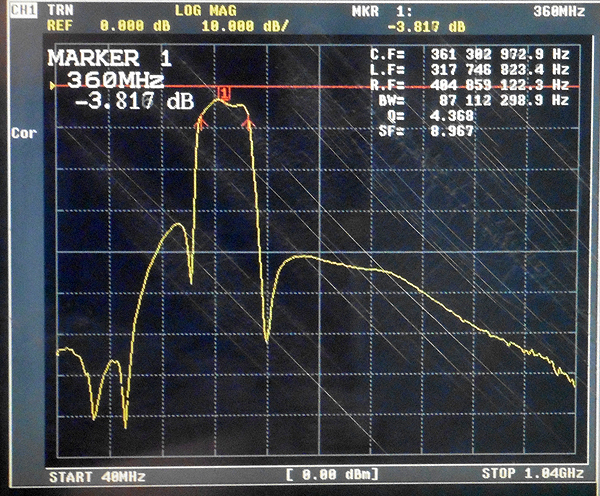

Frequency Response:
