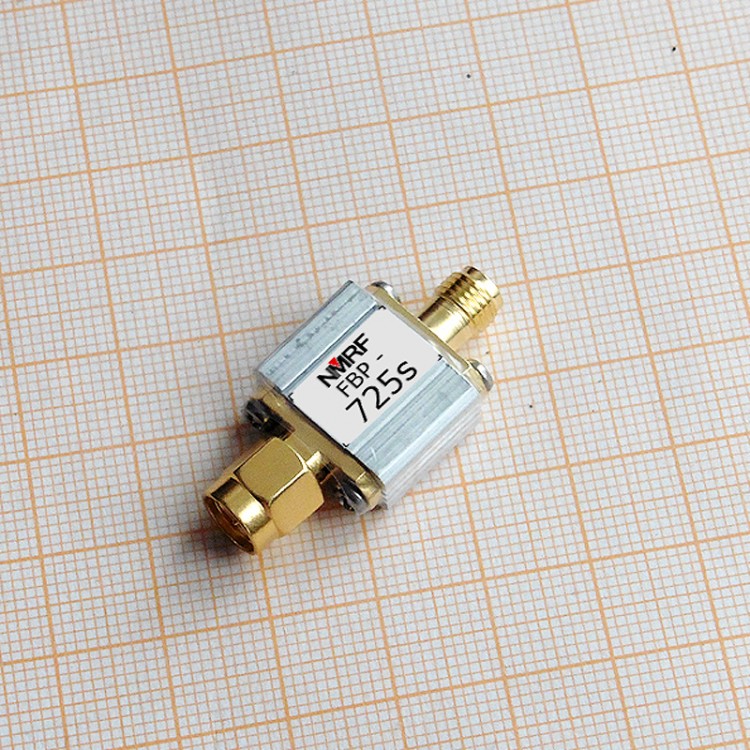

NMRF FBP-725s 725MHz SAW Band Pass Filter 45MHz Bandwidth 1DB SMA for 703-748MHz RF Signal Tests
Description:
This filter has a 1dB bandwidth of 45MHz and a steep cut-off characteristic. It is used for RF signal testing at 703-748MHz. In addition, it effectively filters out out-of-band signals, reduces noise, and increases dynamic range.
Specifications:
- Model: FBP-725s
- Impedance: 50 Ohms
- Center frequency: 725 MHz
- Passband (1dB bandwidth): 703-748 MHz
- In-band insertion loss: < 3.5 dB (typical: ~ 3.0 dB)
- Maximum carrying power: 100 mW (20 dBm)

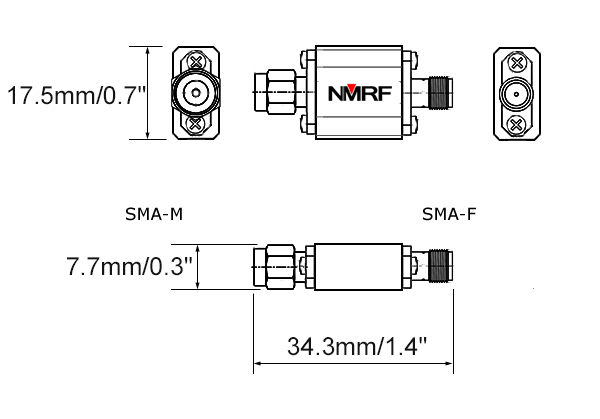

- Interface: SMA-M and SMA-F
Package Included:
- 1 x Filter

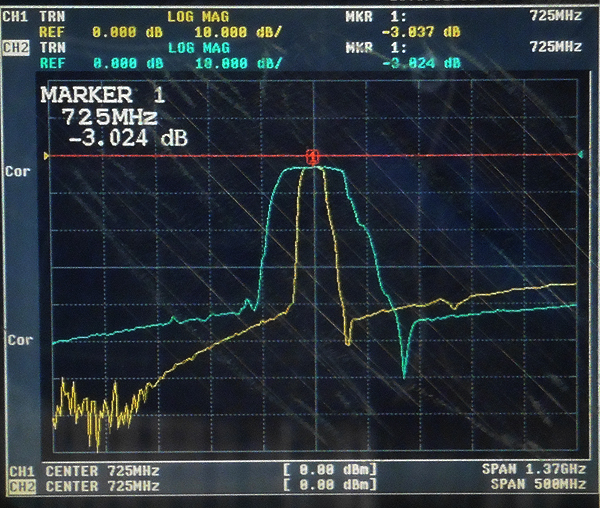

Frequency Response Diagram:
