NRL-2300 Host Network Radio Link Built-in 2W V Module Trunking For Walkie Talkie Signal Forwarding

NRL-2300 Host Network Radio Link Built-in 2W V Module Trunking For Walkie Talkie Signal Forwarding

Function:
It is to connect 2 walkie-talkies or relays in different places through the network, internal network or external network.

Description:
NRL-2300 radio network connector is an advanced embedded device designed for the majority of HAMs to send and receive audio through the network and control your transceiver.

It is suitable for trunking, outdoor and indoor intercom signal expansion, factory broadcast, underground communications and other occasions where long-distance intercom connection is required.

Features:
- Support POE 24V network power supply
- Internal 2W U/V module
- IPX-SMA interface
- Integrated 3 independent indicator lights
- Ultra-thin RJ45 interface
- Size 80x50x20mm

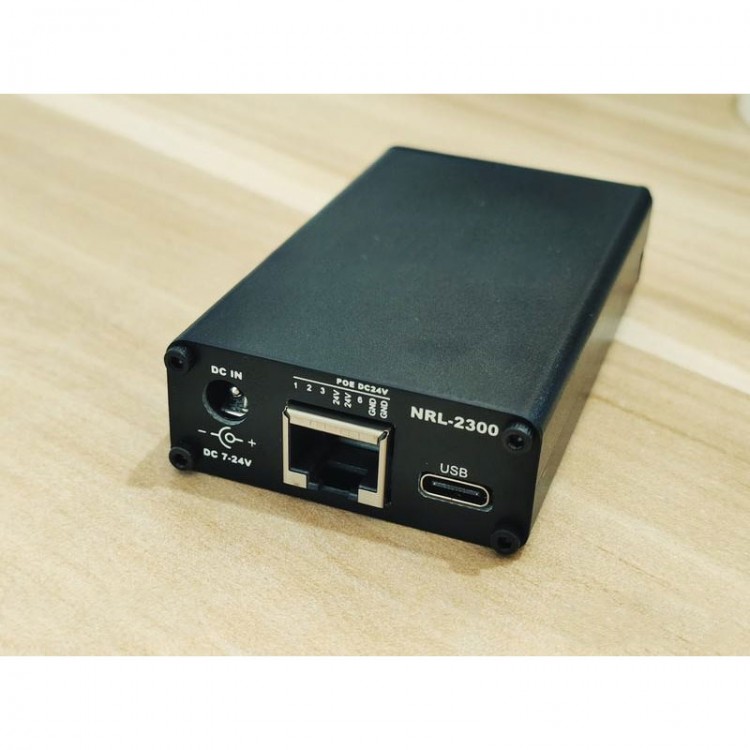

Interfaces:
- DC IN: Inner +, outer -. 5.5/2.1mm, wide power input 7-24V
- RJ45 network port: 100M/10M adaptive, support 568A, 568B. Support POE 24V power supply, 5/6=24V, 7/8=GND
- USB: TYPE-C interface. Used for setting, firmware upgrade, etc., CH340 driver
- ANT U/V: Used to install the built-in U/V module SMA antenna jumper, SMA female
- NET (Blue light): Flashing: not connected with the other party, communication is unsuccessful. Constantly on: The connection with the other party is OK (When this light flashes and the unit is in the PTT transmitting state, the PTT will be forcibly disconnected)
- SQL (Green light): lights up when its receiver is valid (SQL_LO)
- PTT (Red light): lights up when it is transmitting

Package Included:
- 1 x NRL-2300 Host

Note: Walkie talkie is not included.
