Description:
The network communication boxes are specially designed for TS-480. They can connect the main unit and panel of your TS-480 through the network, thus allowing remote operation of the mobile radio.

Through the boxes, you can put the main unit of TS-480 in one place, put the panel and handheld mic in another place, and realize remote SSB call and reception, frequency adjustment, buttoning, power on/off, CW and other operations through the network.

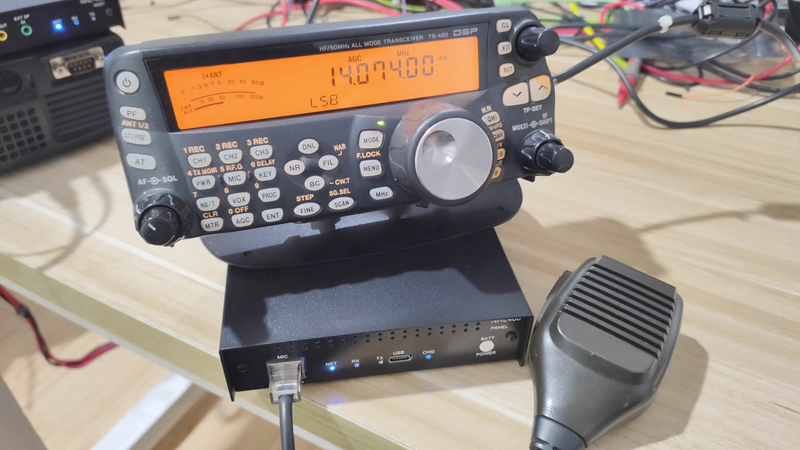

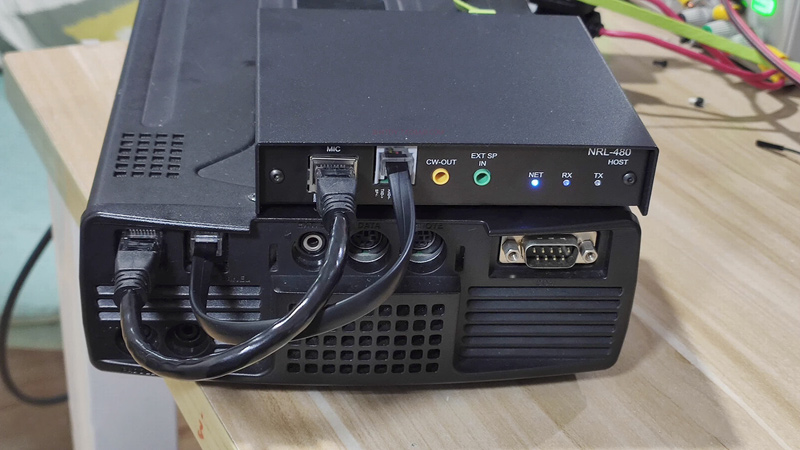

One pair of radio communication boxes should be used together. The box marked with HOST should be connected to the main unit of TS-480 and the one marked with PANEL connected to the panel of TS-480.

Functions and Features:
- Operation of TS-480 main unit and panel; support hand microphone and CW full function
- Support LAN and WAN
- Support IP direct connection, DNS domain name resolution and DHCP
- Full-duplex audio transmission transparent transmission, full-duplex TTL data transparent transmission, full-duplex IO signal transparent transmission and full-duplex CW signal transparent transmission
- TTL data first-in-first-out caching feature
- Audio automatic cache synchronization technology, 8K transceiver cache, G.711 encoding and bitrate 64Kbps (8KB/s)
- Automatic reconnection function when there is disconnection
- Automatic TS480 heartbeat maintenance function
- 100M/10M RJ45 network port supports direct connection of 568A-568B network cable
- Only one network port number is used to support server connections
- Built-in small power audio amplifier to drive 8 ohms 2W speakers
- DC 12-15V wide voltage input
- Integrated USB port for firmware upgrade/setting parameters and parameters can be set by network
- Support user-independent firmware upgrade and automatically set memory
- Size: 120 x 100 x 24mm/4.7 x 3.9 x 0.9"
- Working current: HOST: 12V/150ma, PANEL: 12V/110ma

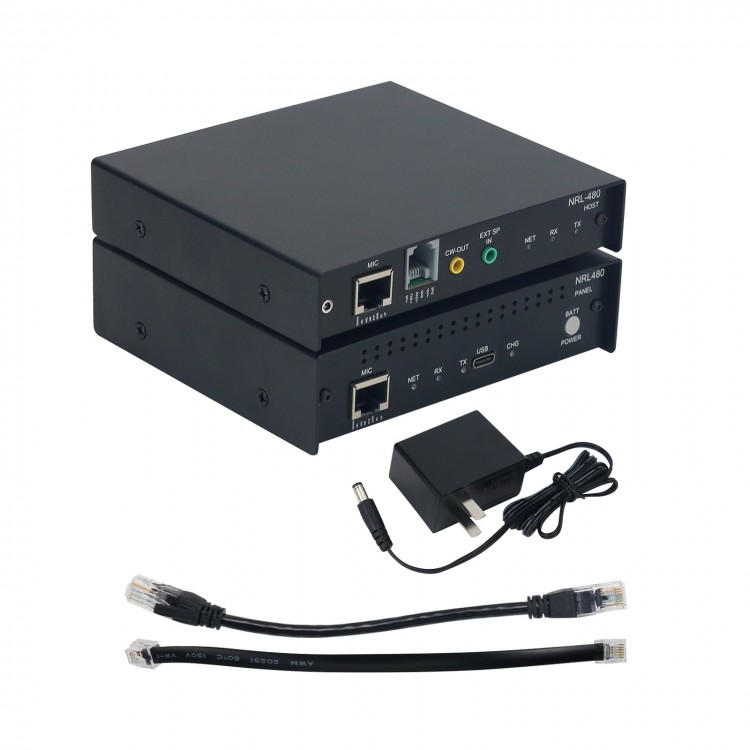

Package Included:
- 1 x HOST Box
- 1 x PANEL Box
- 1 x RJ45 Cable (connected to the MIC port of main unit)
- 1 x RJ11 Cable (connected to the PANEL port of main unit and supplies power to HOST box)
- 1 x 12V/1.0A power adapter (supplies power to PANEL box)

Note:
- In daily use, HOST box does not need an external power supply, and is powered by RJ11 port.
- To use the devices, users need to have certain electrical connection knowledge, computer knowledge and basic network knowledge. HAM users without any basic knowledge is not recommended to use this device.
- TS-480 shortwave transceiver is not included, for demonstration purposes only. Thank you for your understanding!
