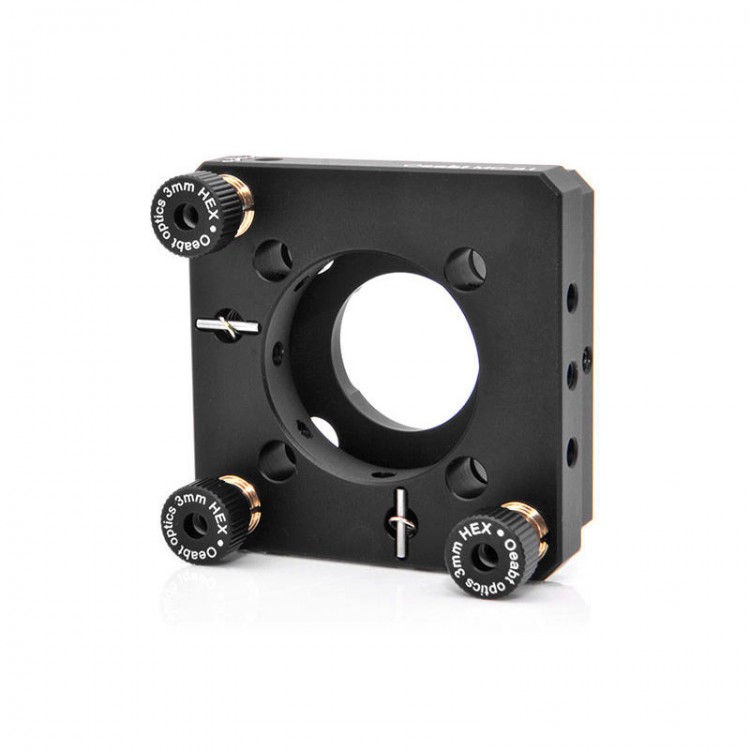

Oeabt MC-S1 Smooth Bore Kinematic Mount for 30mm Cage System Precision Angular Adjustment of Optics
Features:
• ±5º tip/tilt and ±3 mm linear translation
• Compatible with 30mm/1.2" cage system
• Accepts Ø1" (25mm) optics
• Minimum optic thickness: 0.12" (3mm) (for MC-S1)
• M4 holes for post mounting

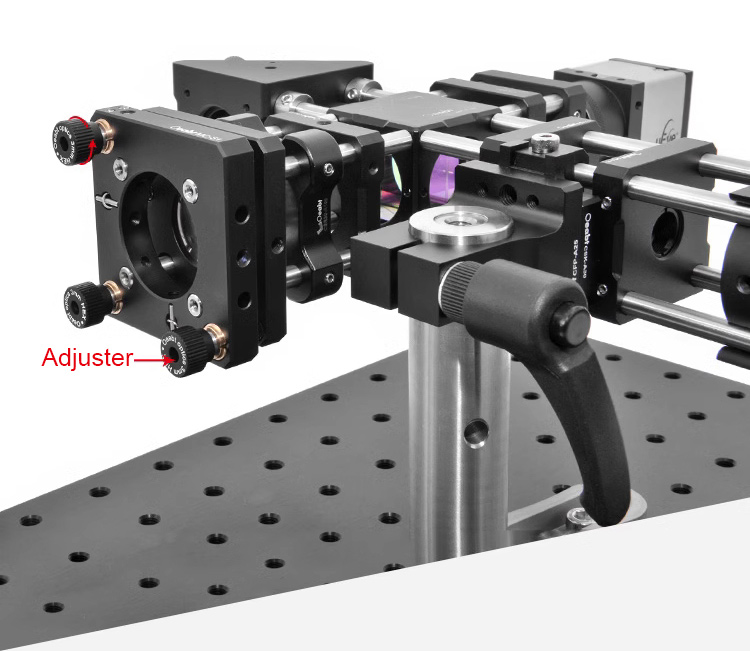

• The MC series is ideal for mounting reflector mirrors or collimated light sources. It is capable of precise beam angle alignment along the axis of the 30mm cage system. There are three M6*0.25 precision hexagonal adjusters that provide 7 mrad adjustment per revolution. The fine adjustment of the manual three-axis adjuster enables precise angular positioning of the optics within the cage system. Each of the mount's three adjusters can be independently locked using a fixing screw

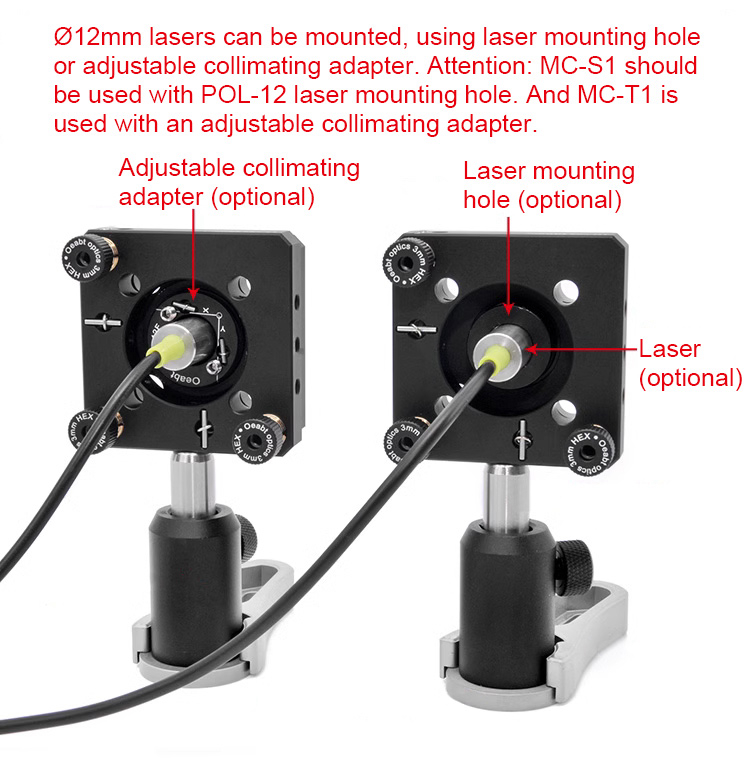

• MC-S1 has a smooth bore for mounting Ø1" optics with a thickness of at least 3mm/0.1". The optic is held in place with a top-located, nylon-tipped locking screw

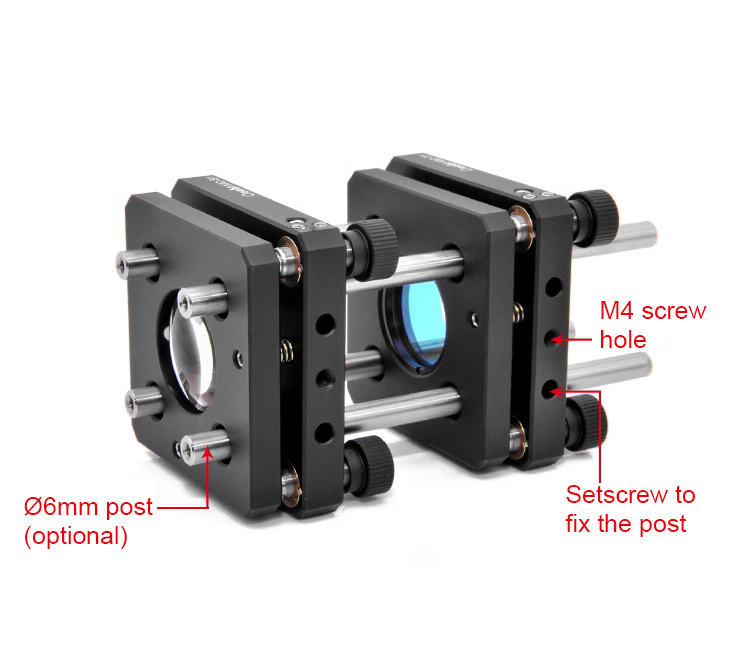

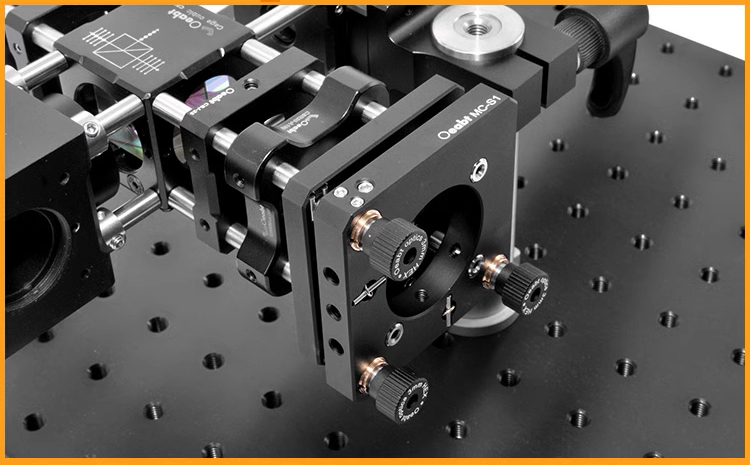

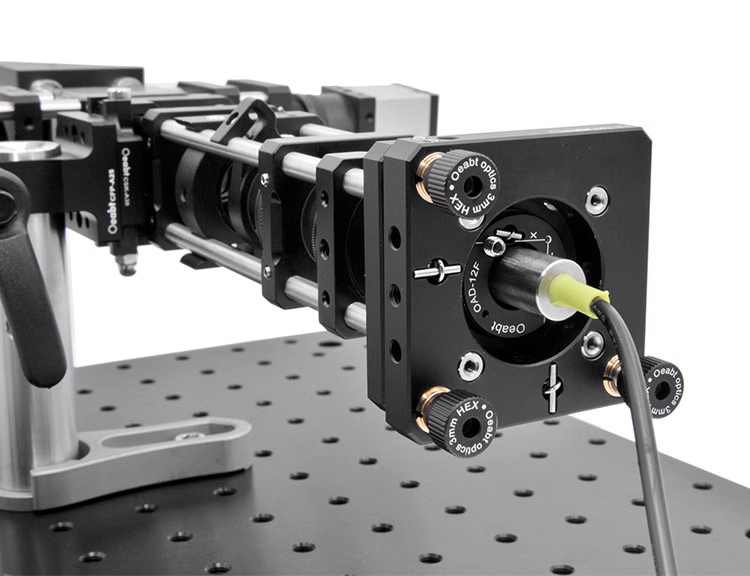

• Both the front and rear plate have been machined with four clearance holes designed for direct compatibility with our 30mm cage system standard. The cage rod holes in the front plate are sufficiently oversized to allow ±4° tip and tilt adjustment without cage rod interference. It can also be connected to posts via an M4 threaded hole
Specifications:
- Model: MC-S1
- Center bore diameter: Smooth bore Ø 33.5mm/1.3"
- Weight: 123.6g/0.3lb
- Product name: Kinematic Mount for 30mm/1.2" Cage System

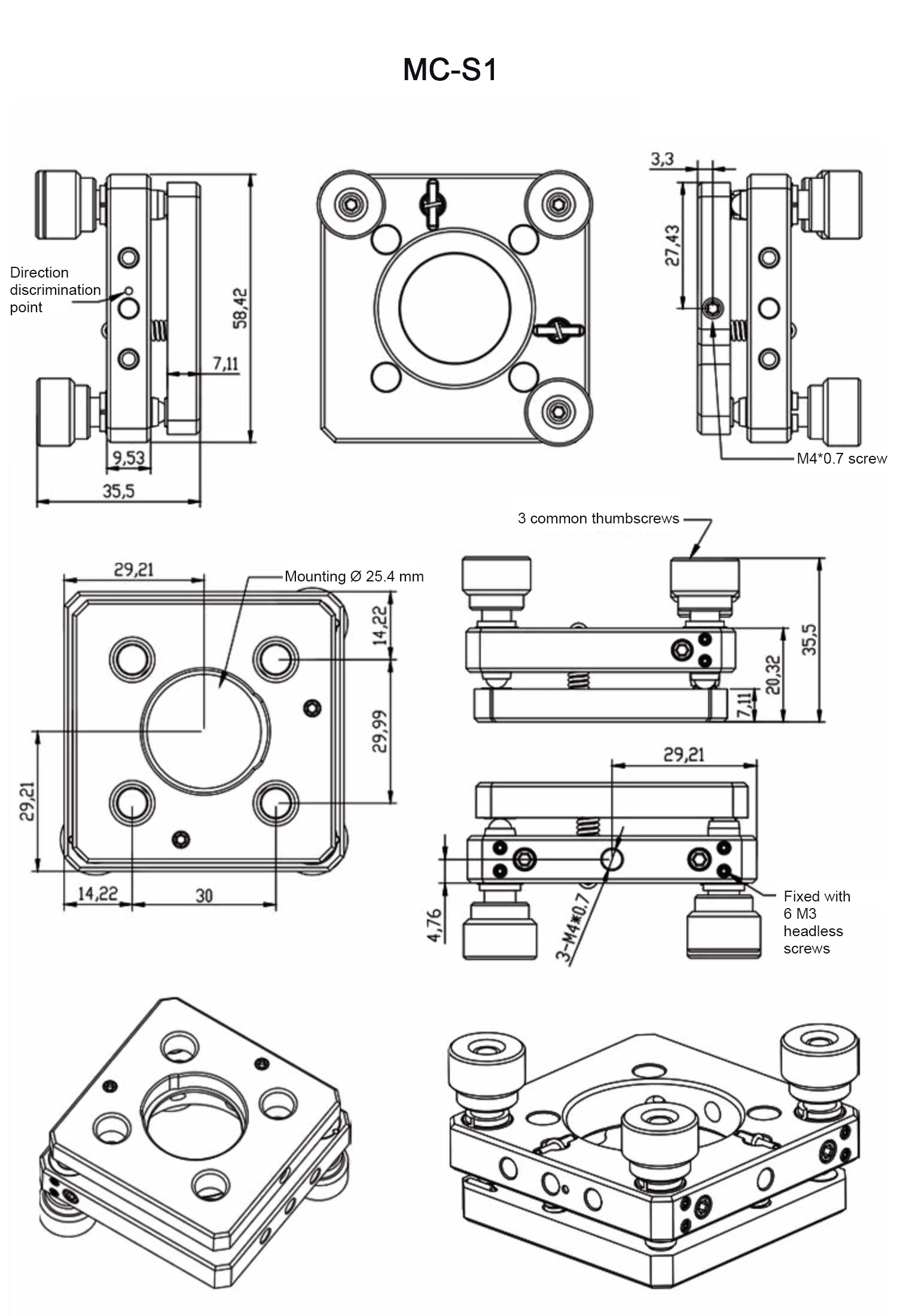

- Size: 58.4 x 58.4 x 33.0mm/2.3 x 2.3 x 1.3"
- Mechanical angular range: ±5º
- Mechanical linear travel: ±3mm/0.1"
- Clearance hole spacing: Ø 6.02mm/0.2", 30x30mm/1.2x1.2"
- Thread type: M4
- Material: 7075 aluminum alloy
Package Included:
- 1 x Kinematic Mount
Note:
- Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
Packaging Details:
- G.W.: 0.35kg
Why do we choose Alcoa 7075 aluminum alloy?

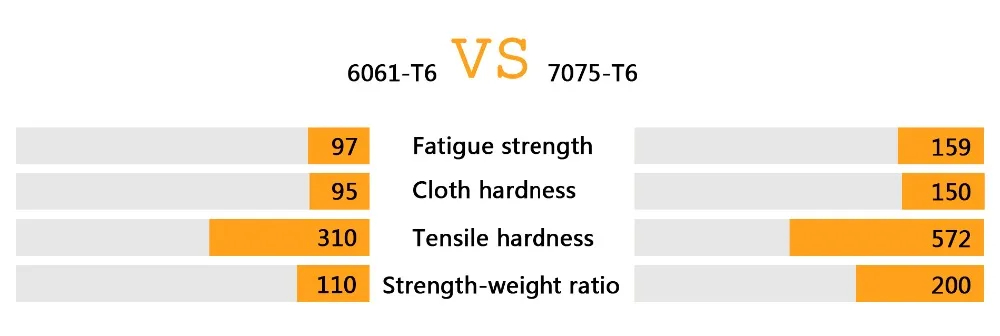

Lighter, stronger, more durable, with superior thermal stability. Because 7075 has better mechanical properties, and has good ductility, high strength, toughness and good fatigue resistance. Compared with 6061, 7075 has 64% and 58% higher fatigue strength and cloth hardness, and 85% and 82% higher tensile strength and strength-to-weight ratio, respectively.
