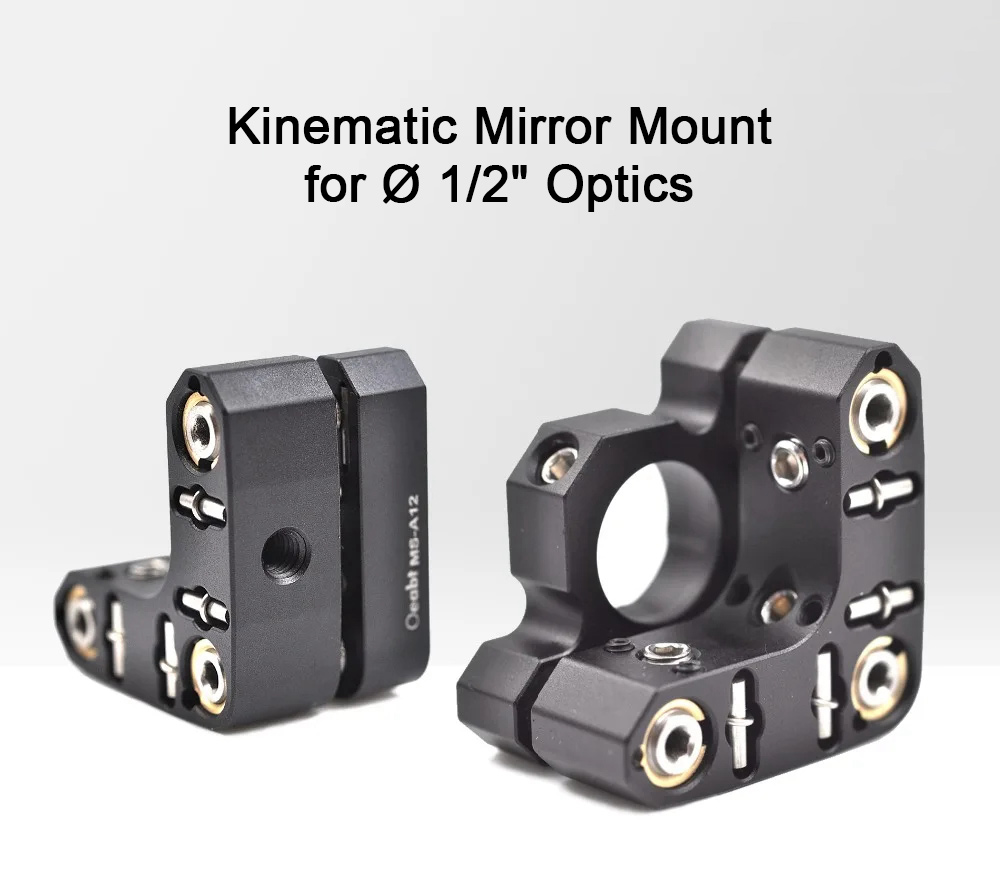

Oeabt MS-A12 Kinematic Mirror Mount for Ø 1/2" and 12mm Optics Precision Experiments OEM Use

Oeabt MS-A12 Kinematic Mirror Mount for Ø 1/2" and 12mm Optics Precision Experiments OEM Use

Features:
- MS-A12 stable and compact kinematic mirror mount is very suitable for OEM use. And it can be integrated into high-precision laser machinery as a component.
- It supports XYZ three-axis tilt and can mount Ø 1/2" and 12mm optics.
- Precise adjustment: 13 mrad (0.75 °) per revolution by three 3/16 "-100 screws.
- Angular range: ±4 °.

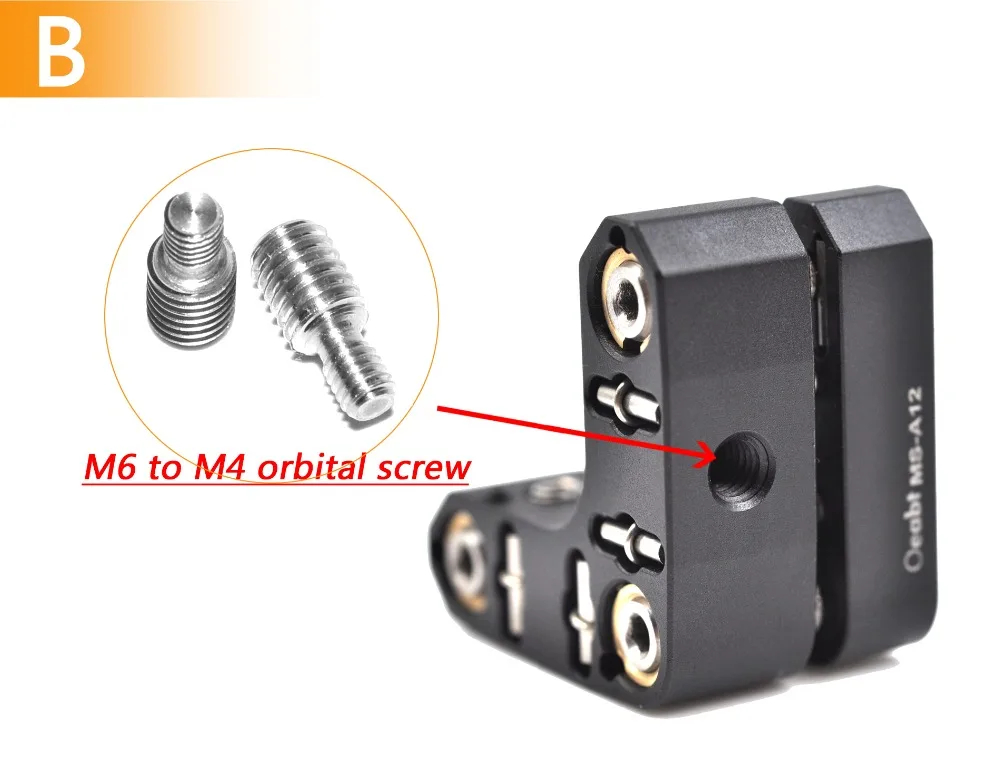

- The kinematic mirror mount can be fixed on posts thanks to two 8-32 (M4) threaded mounting holes at the bottom.
- Tension springs improve the stability of the mount and can be used for the integration of applications for precision experiments.

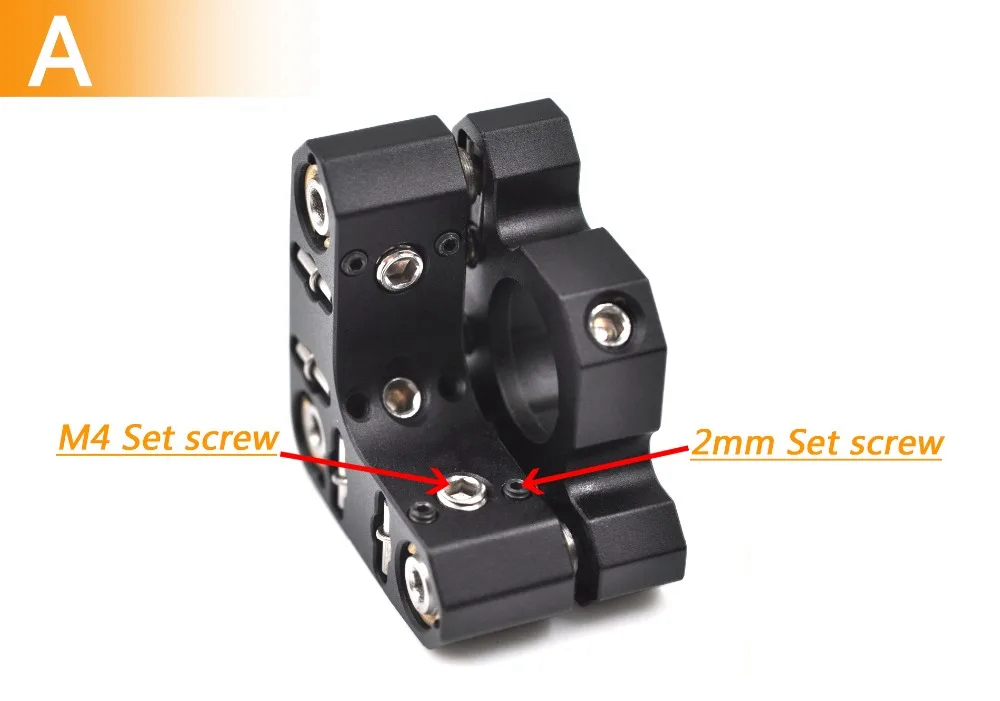

- The L-shaped panel comes with M4 setscrews. Adjust to the desired position and a 5/64" (M4) hex key for locking the screws. In addition, there are 6pcs 2mm diameter setscrews on the side to fix both ends.

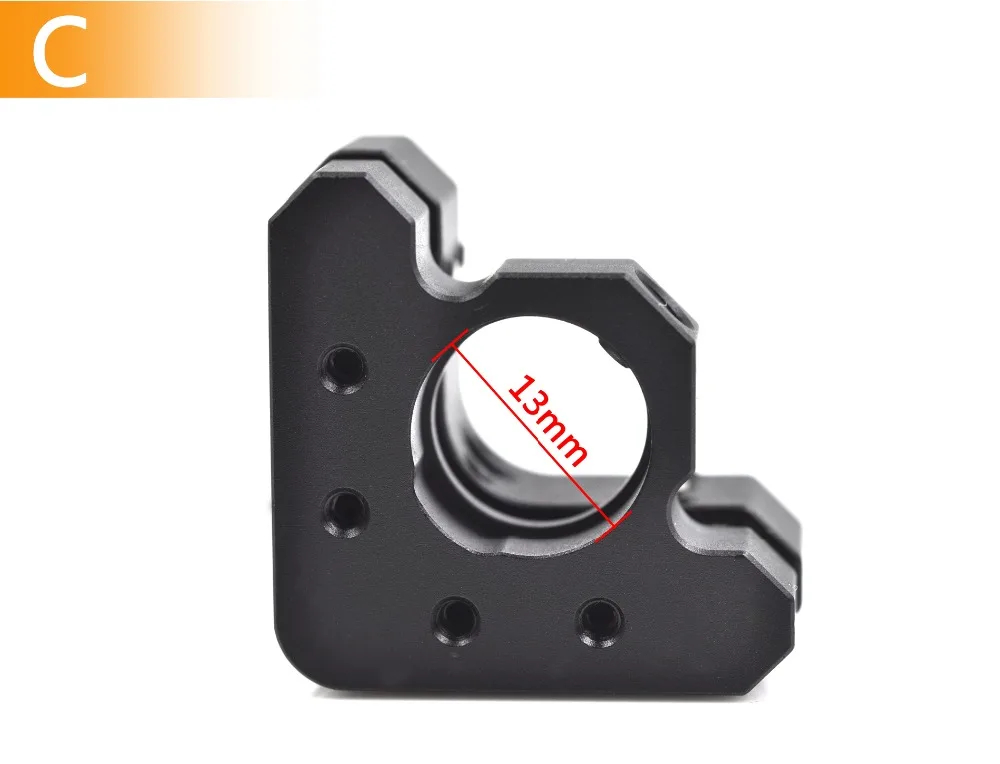

- Ø 1/2" optics with a minimum thickness of 0.07" (1.78mm) and a maximum thickness of 0.3" (8mm) can be mounted through a 13mm diameter mirror hole.

Specifications:
- Model: MS-A12
- Product name: Kinematic Mirror Mount for Ø 1/2" Optics
- Pore diameter: 13mm/0.5"
- Hole depth: 5.5mm/0.2"

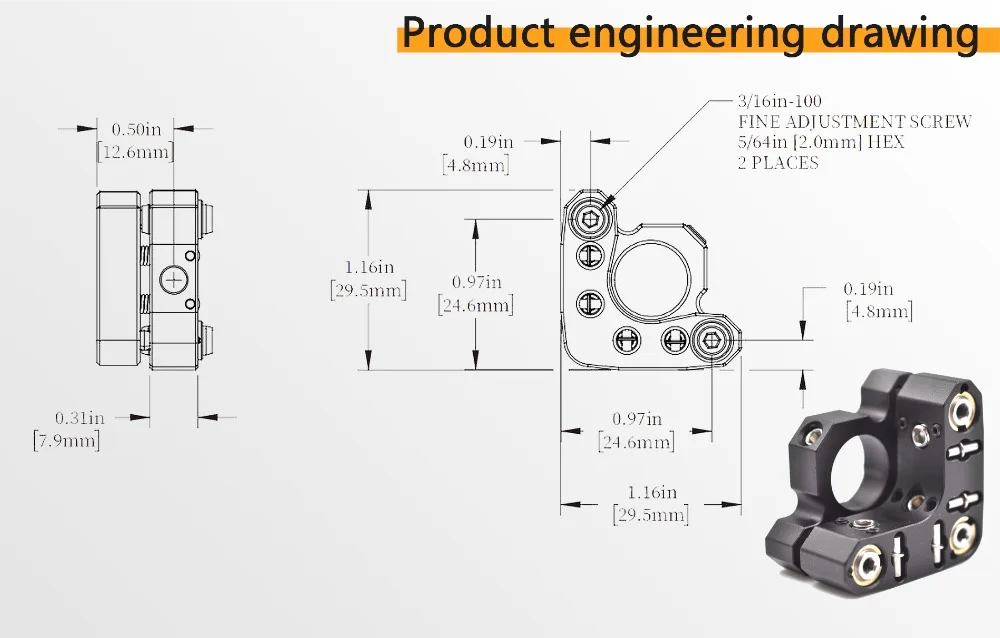

- Size: 29.5 x 29.5mm/1.2 x 1.2"
- Function: XYZ three-axis adjustable
- Material: #7075 aluminum alloy
- Net weight: 24.8g/0.05lb
- Applicable optics: Ø 1/2" and 12mm optics

Package Included:
- 1 x Kinematic Mirror Mount

Packaging Details:
- G.W.: 0.25kg

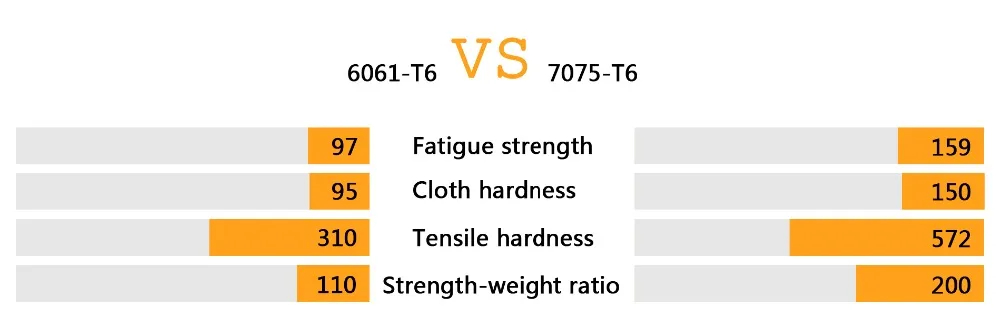

Why do we choose Alcoa 7075 aluminum alloy?
Lighter, stronger, more durable, with superior thermal stability. Because 7075 has better mechanical properties, and has good ductility, high strength, toughness and good fatigue resistance. Compared with 6061, 7075 has 64% and 58% higher fatigue strength and cloth hardness, and 85% and 82% higher tensile strength and strength-to-weight ratio, respectively.
