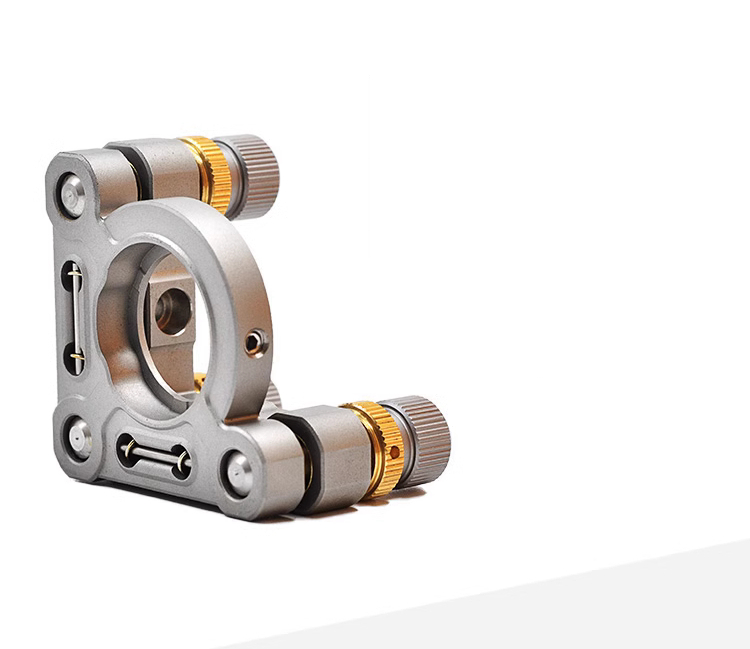

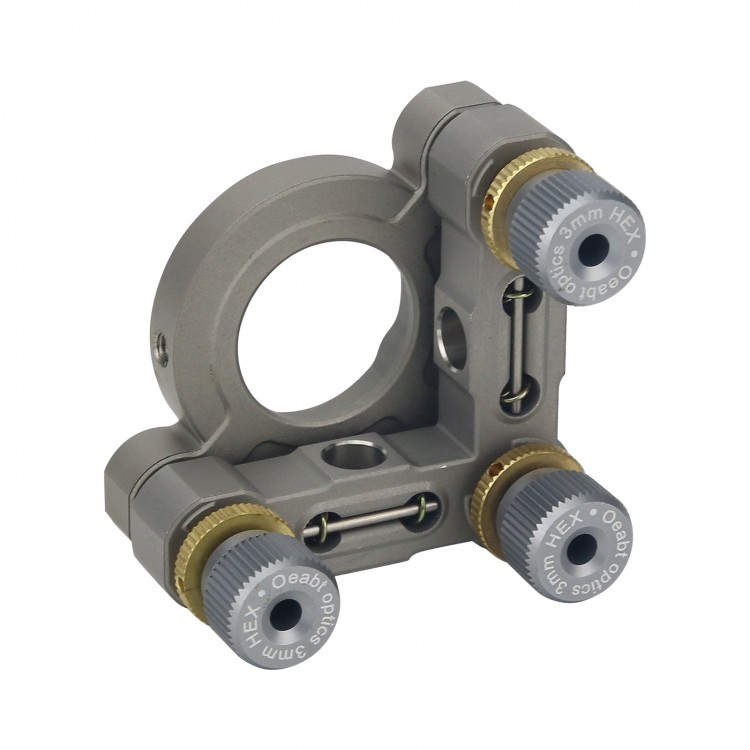

Oeabt OST-K100 Three-Axis Kinematic Mirror Mount Precision Adjustment Suitable for Ø1" Optics
Features:
- OST-K100 is a 3-axis kinematic mirror mount.
- It is suitable for the installation and commissioning of Oeabt's various posts. The various adjustment axes allow for precise adjustment of pitch and tilt angles for various lenses. The single axis has an adjustable angle of ±4°. With M4 screw holes, it can be fixed to a variety of posts or brackets.
- Fine adjustment and fine calibration adjustment: It adopts a special plane spring structure, imported high-quality fine screw drive, with high precision and good stability. Struts are made of stainless steel of standard diameter. Easy to install. Beautiful and applicable.
- Multi-structure clamping installation: Compared with optic mounts, the double adjuster has a thicker rear plate and tighter springs for enhanced stability.
- Hardened steel inserts: Hardened steel inserts at adjustable contact points to reduce wear.
- Metal heat treatment process ensures the quality of the product.
Specifications:
- Model: OST-K100
- Product name: Standard 3-axis Kinematic Mirror Mount
- Mounting hole diameter: 25.4mm/1"
- Tilt angle: Adjustable tilt angle ±4°

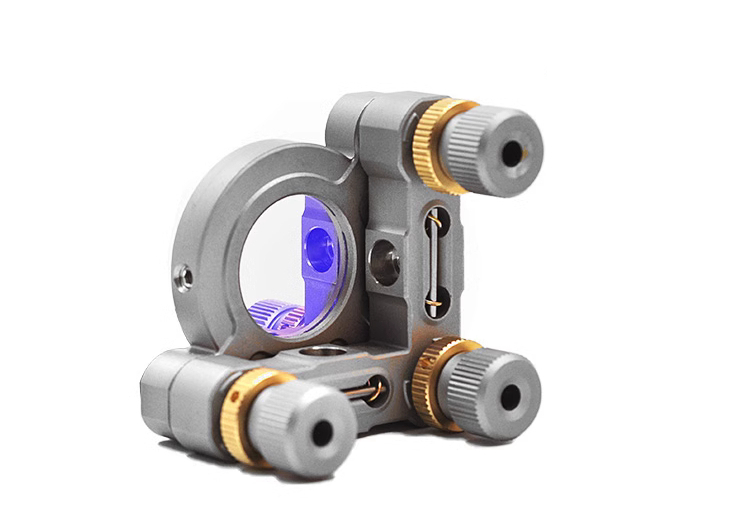

- Applications: Optical lenses 25.4mm/1" in diameter can be mounted

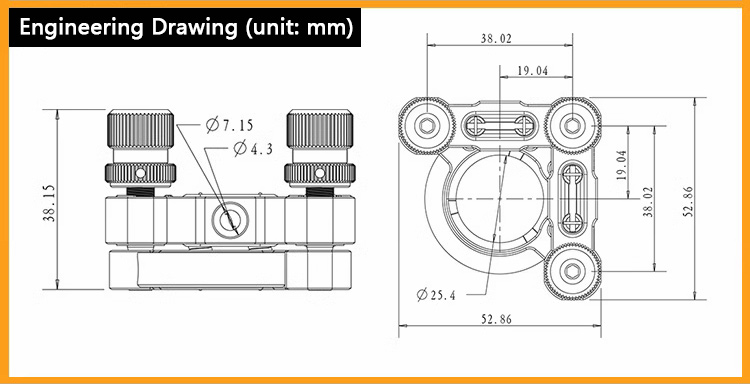

- Specifications: 53mm x 53mm/2.1" x 2.1"
- Lens mounting holes: Compatible with lenses 3-10mm/0.1-0.4" in thickness
- Net weight: 0.20kg/0.4lb
- Material: 304 stainless steel
Package Included:
- 1 x Kinematic Mirror Mount
Packaging Details:
- G.W.: 0.3kg
Note:
- Only the 3-axis kinematic mirror mount is included. Other items pictured are not included, for demonstration purposes only. Thank you for your understanding!
