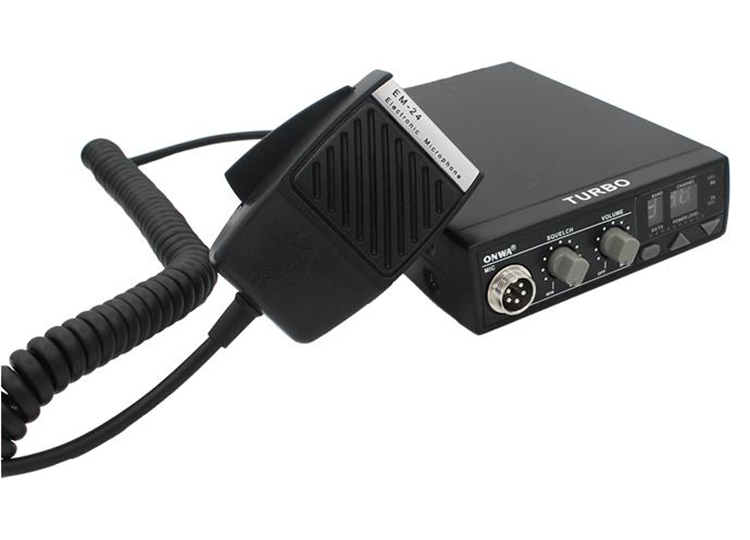

ONWA K-6124L MK2 27MHz CB Marine Radio 6 Bands 240 Channels 5W AM Modulation CB Marine Transceiver

ONWA K-6124L MK2 27MHz CB Marine Radio 6 Bands 240 Channels 5W AM Modulation CB Marine Transceiver

Specification:
- Frequency coverage: all 240 CB Channels 26.065 to 28.755MHz
- Modulation mode: AM modulation (A3)
- Antenna impedance: 50ohm
- Power supply required: 12-16VDC
- Dimensions: 124mm x 38mm x 190mm
- Net weight: 1.2kg

Receiver:
- Sensitivity: 1.0mV or better for 10dB S+N/N
- Adjacent channel rejection: 60dB (at 10KHz); greater than 70dB (for 20KHz)
- Intermediate frequency: 1st IF = 10.695MHz; 2nd IF = 455KHz
- Audio output: 4.5 Watts max.
- Frequency response: 450-2500Hz
- Cross modulation: 45dB or better
- Squelch: adjustable from 1.2mV to 1mV

Transmitter:
- Output power: 4 watts nominal, 5 watts max.
- Modulation capability: 80-90%
- Spurious radiation: 62dB or better
- Frequency tolerance: better than 0.002%
- Current drain (13.8V supply): 1.3 Amps (no modulation), 2.0 Amps (full modulation)

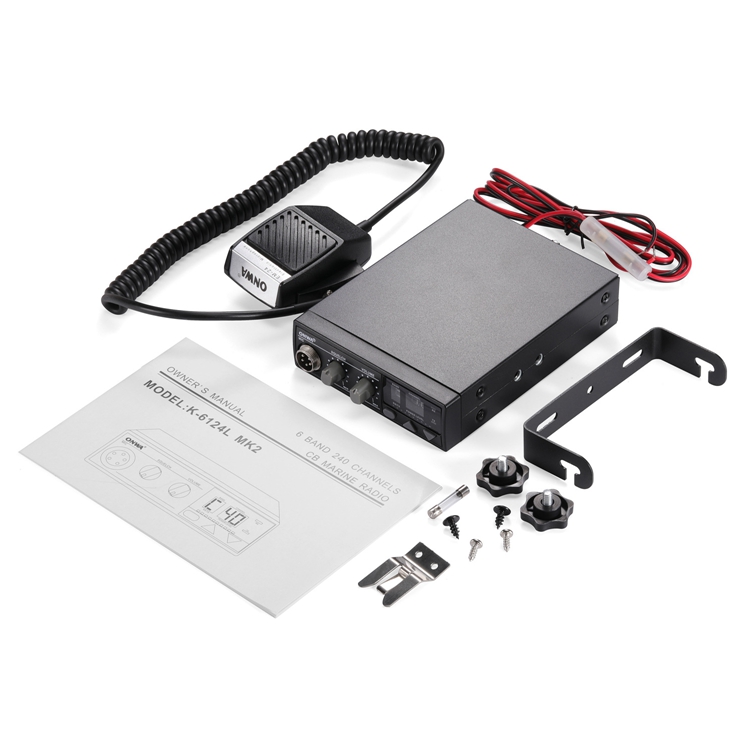

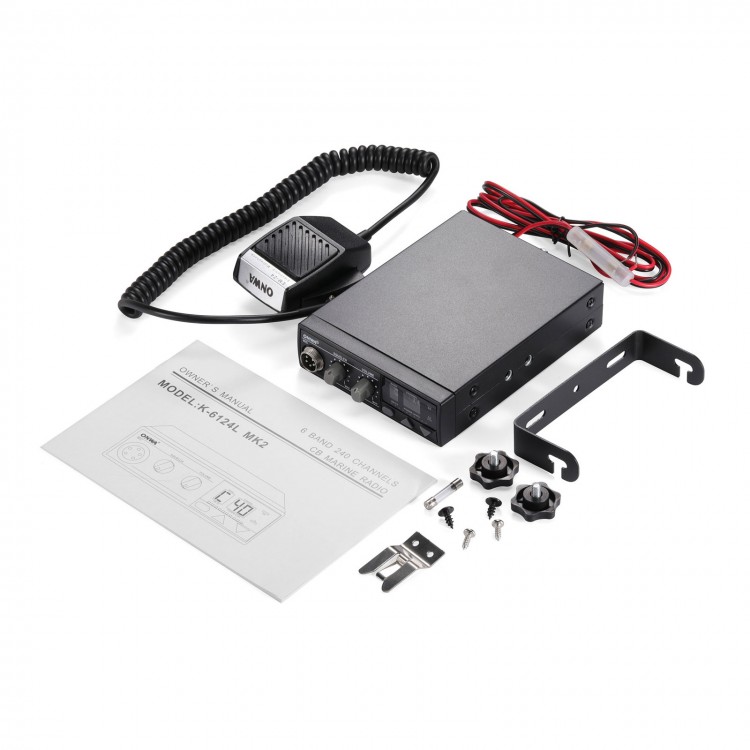

Package Included:
- 1 x CB Marine Radio
