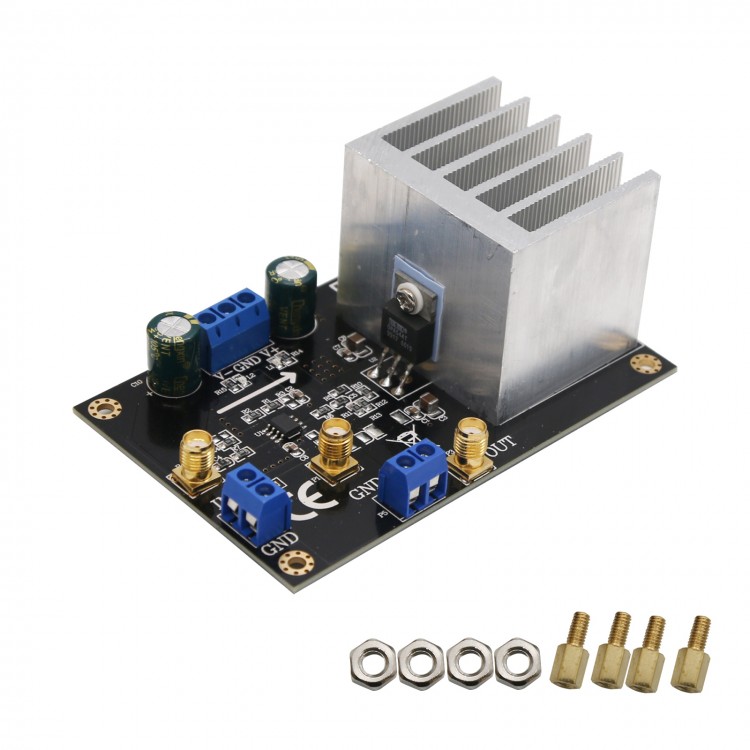

OPA544 Power Amplifier Module for Motor Drive Sine Signal Amplification DIY
Specification:
- Name: OPA544 Power Amplifier
- Size: 76*63*51mm
- Voltage: -+10~35V
- Peak voltage: 68Vpp
- Input signal: >500mVpp
- Load current: >=2A
- For motor/speaker/transformer/ultrasonic/infrasonic wave drive
- Triangular wave /square wave /sine wave amplification
- Can drive capacitive load/inductive load
Chip feature:
- High output current: Minimum 2A
- Wide voltage range: -+10V~-+35V
- Slew rate: 8V/us
- Internal current limit
- Thermal shutdown protection
- FET input: IB=100pA MAX
Package List:
- 1 x OPA544 Power Amplifier Module
