Product Description:
- High speed DC motor
- Phone control,handle control
- Open source code to explain the video
- Control board and driver board combination
- Based on 51 microcontroller core
Features:
- Support 6 way servo control
- Support 2 way DC motor control
- Support phone bluetooth control
- Support PS2 handle remote control
- Can connect ultrasonic module
- Can connect 3 way infrared sensor
- Support low voltage alarm
- Convenient wiring connection,simple operation

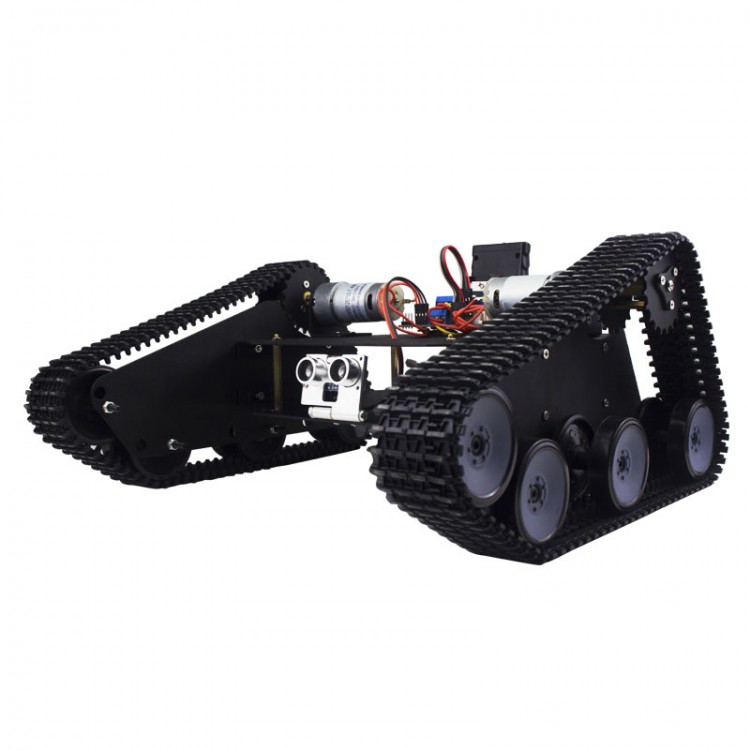

The caterpillar car uses high speed DC motor:
- Voltage range:DC 6V-12V
- Reduction gear ratio: 1:7.48
- No-load rotation:446rmp/min(6V)
- Torque current:4.5A(12V)
- No-load current:320mA(12V);120mA(6V)
Specification:
- Load:1.5kg
- Limit speed:1.7m/s
- PS2 handle control:10m(open air:20m)
- Phone APP control:10m(open air:15m)
- Climbing ability:17 degree(Smooth cardboard box)
- Ultrasonic detection distance:2cm-450cm(accuracy:3mm)
- Working voltage:6.9V~7.4V
- Full electricity endurance:30 minutes
- Full charged time:3-4 hours
- Size:290x300x150mm(LxWxH)
- Weight:1.6kg
Package List:
- 1 x Metal car frame
- 2 x DC Gear motor
- 1 x 7.4V 2200mah LI-battery
- 1 x Charger
- 1 x Chassis robot controller(with bluetooth)
- 1 x Handle and receiver
- 1 x Ultrasonic sensor
