Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $42.69 | $41.82 | $40.51 | $38.77 | Contact US |

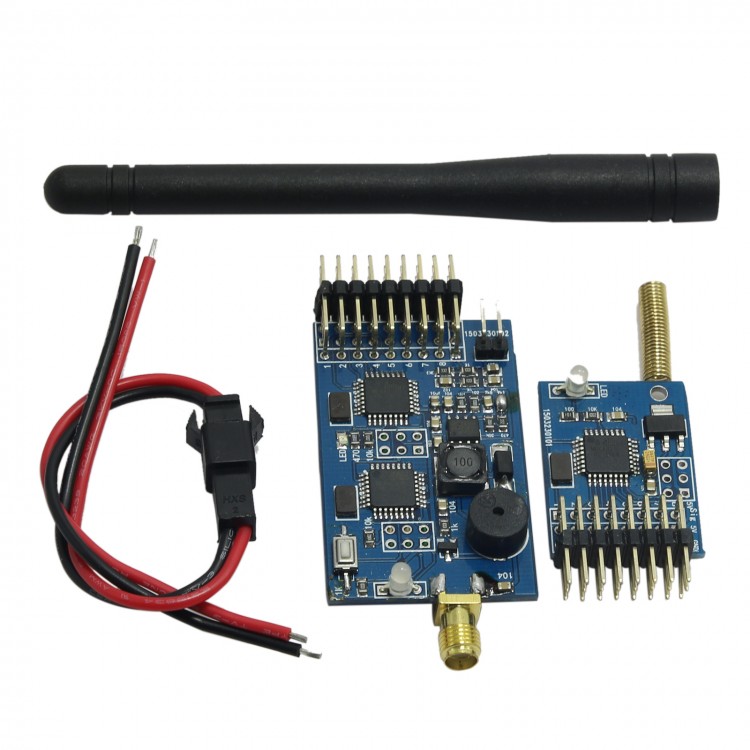

OpenLRS Opensource 433 Extended Range DIY Kits Support PPM PWM Input 433MHZ
Match frequency:
- Do not power on receiver
- Pressing maching code/ out of control button on transmitter
- Power on
- After hearing the Di sound, release the pressing button
- TX starts to buzz every 5 secs, it gets to matching frequency state
- Power on RX
- When TX stops buzzing, it means the matching frequency has finished
- Note: green light will be on if it is successed. Otherwise, there is no signal red light will be on
Out of control protection:
- Open flight control, power on TX, then power on RX
- Change each channel to the state that you want when out of control protection is on
- Press TX output of control button
- Release the button after you hearing Bi sound, then it is all set
Description:
- Adopting Open Long Range System OpenLRS
- Orange-433 high frequency head
- Can directly plug into JR, FUTABA PPM signal, or use 2.4G receiver
- TX uses 1W module
- FPV adopts 433 remote control system
- Note: this is opensource DIY kits
