Tags: Binocular Vision Camera
Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $143.33 | $140.40 | $136.01 | $130.16 | Contact US |
Product Description:

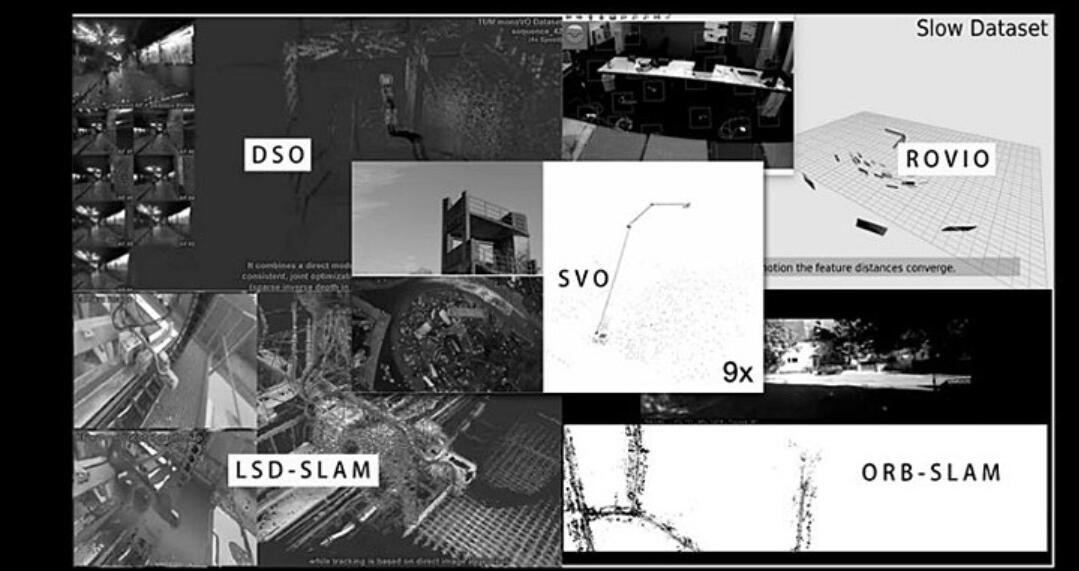

- Binocular cameras,accurate calibration,hardware synchronization,feature detection,position tracking,map building.
- OPTER is a general vision sensor for robot vision algorithm developers.Abundant hardware control interface and data interface,providing reliable image data and inertial navigation data.

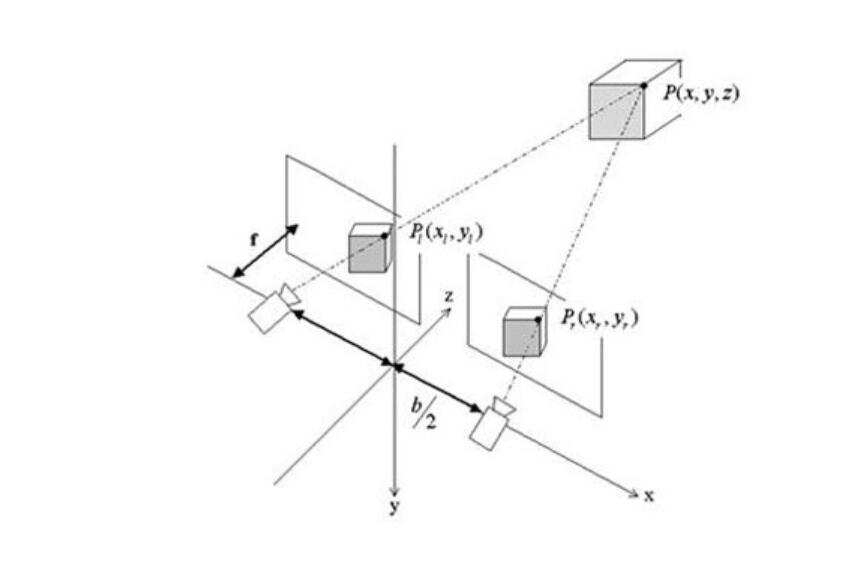

- Binocular stereo vision:We produce parallax with observation object through eyes distances,so we get depth and distance information
Loitor inertia camera--hardware pecification:
CMOS:
- Mode:MT9V034
- Exposure mode:global shutter
- Control IC:CY68013
- Frame rate:24-65fps
- Image resolution:320x240;640x480;752x480.
- Hardware firmware update mode:can update program & camera firmware update through Windows firmware
- Binocular baseline length:10cm
- Lens interface specification:M2 lens interface
- Lens specification:2.1mm/150 degree wide angle+6mm/60 degree narrow viewing angle(@752x480 resolution)
- Data interface:USB2.0
- Data transmission delay:1000ms/current frame rate
- Frame synchronization mode:SDK software auto control trigger left right eyes frame synchronization,accurate to 40 microseconds.
IMU:
- Mode:MPU-6050
- Control IC:STM-32
- Frame rate:200fps
- Data transmission delay:100us
- Frame synchronization mode:microsecond timestamp
Package List:

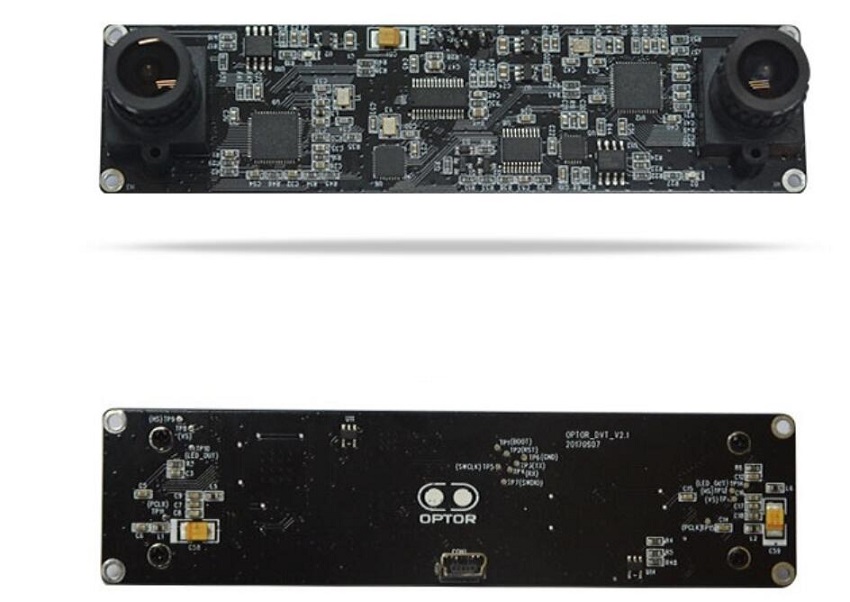

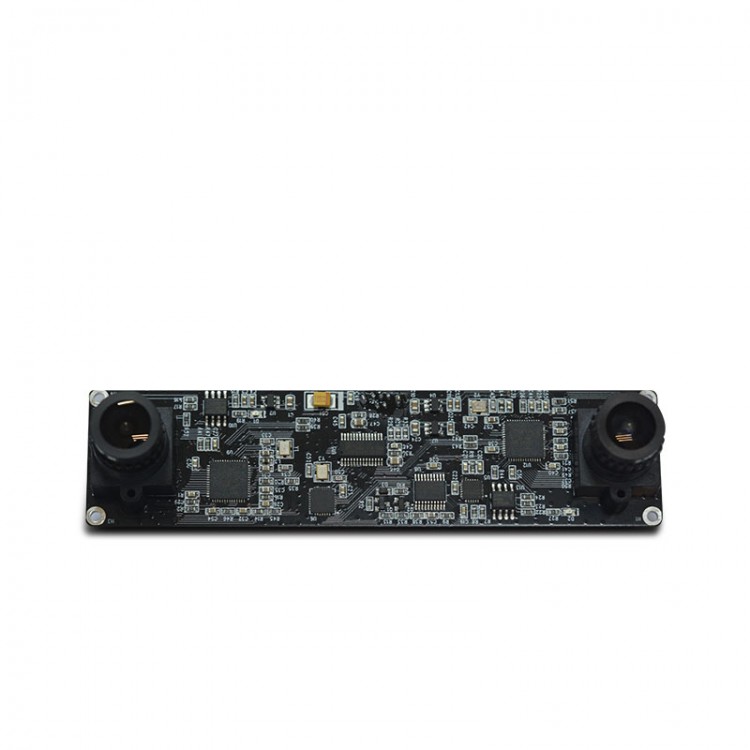

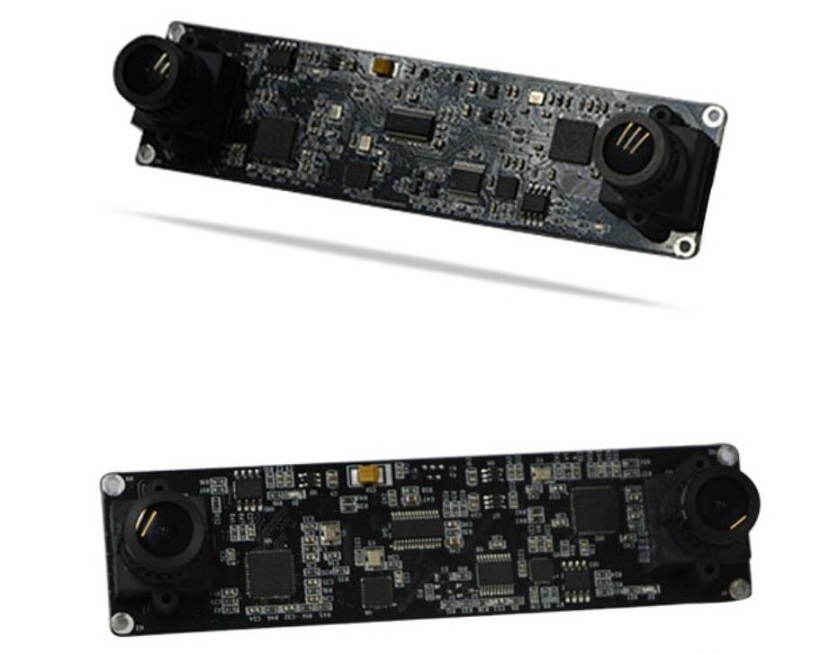

- 1 x Binocular Inertia Vision Camera Board
- 1 x User manual
