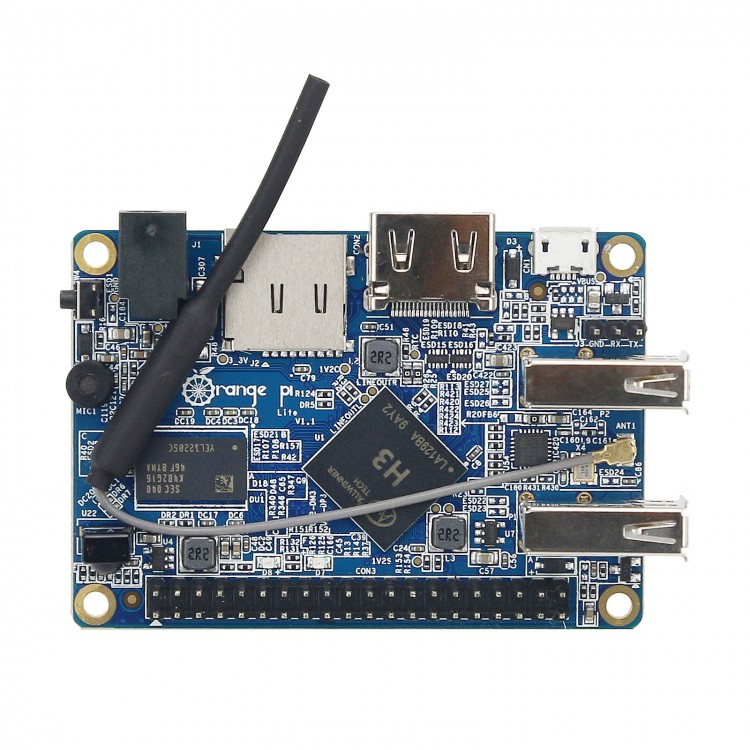

Orange Pi Lite with Quad Core 1.2GHz 512MB DDR3 WiFi Mini PC raspberrypi
| Hardware specification | |
| CPU |
H3 Quad-core Cortex-A7 H.265/HEVC 4K |
| GPU |
·Mali400MP2 GPU @600MHz
·Supports OpenGL ES 2.0 |
| Memory (SDRAM) | 512MB DDR3 (shared with GPU) |
| Onboard Storage | TF card (Max. 64GB) / MMC card slot |
| Wifi Antenne | Yes |
| Video Input | A CSI input connector Camera: Supports 8-bit YUV422 CMOS sensor interface Supports CCIR656 protocol for NTSC and PAL Supports SM pixel camera sensor Supports video solution up to 1080p@30fps |
| Audio Input |
MIC |
| Video Outputs |
Supports HDMI output with HDCP Supports HDMI CEC Supports HDMI 30 function |
| Audio Output |
HDMI |
| Power Source | DC input, USB OTG input don't supply power |
| USB 2.0 Ports | Three USB 2.0 HOST, one USB 2.0 OTG |
| Buttons | Power Button |
| Low-level peripherals | 40 Pins Header,compatible with Raspberry Pi B+ |
| GPIO(1x3) pin | UART,ground. |
| LED | Power led & Status led |
| Key |
POWER |
| Supported OS | Android Lubuntu, Debian, Rasberry Pi Image |
| Interface definition | |
| Product size | 69mm × 48mm |
| Weight | 36g |
| Power supply | 5V 3A |
| Operating Temperature | -10 ~ 65℃ |
| Orange Pi™ is a trademark of the Shenzhen Xunlong Software CO., Limited | |
