Original CRS305-1G-4S+IN 5-port Network Switch 10Gbps Gigabit Switch Dual System for MikroTik

Original CRS305-1G-4S+IN 5-port Network Switch 10Gbps Gigabit Switch Dual System for MikroTik

Description:

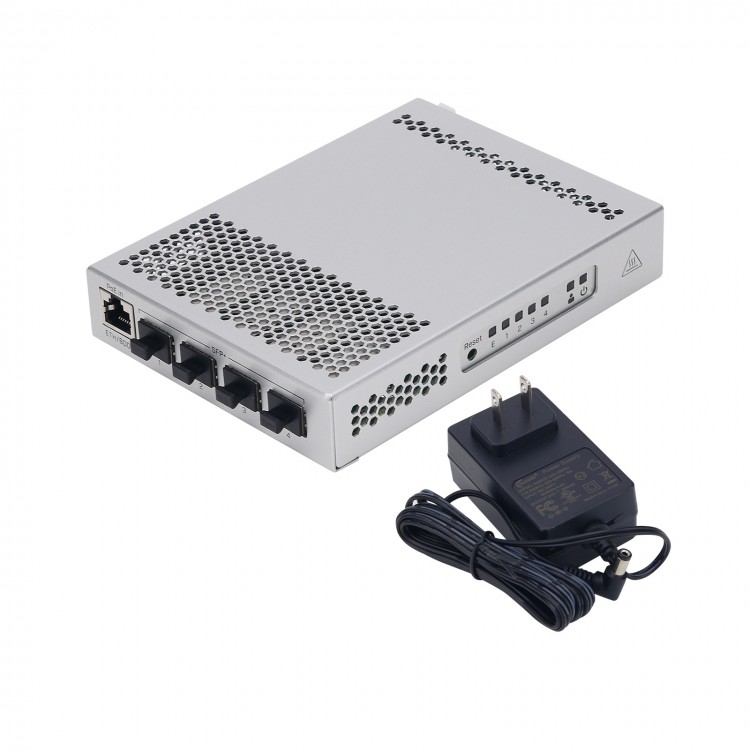

- CRS305-1G-4S+IN is a five-port desktop switch with one Gigabit Ethernet port and four SFP+ 10Gbps ports.
- It is a compact yet very powerful switch, featuring four SFP+ ports, for up to 10 Gbit per port. The device has a 1 Gbit copper ethernet port for management access or regular traffic forwarding and two DC jacks for power redundancy. The device is a very sleek and compact metallic case without any fans, for silent operation.
- The device has a "Dual boot" feature that allows you to choose between two operating systems - RouterOS or SwOS. If you prefer to have a simplified operating system with only switch specific features, use SwOS. If you would like the ability to use routing and other Layer 3 features in your CRS, use RouterOS. You can select the desired operating system from RouterOS, from SwOS or from the RouterBOOT loader settings. All the feature set comes with a disruptive price, providing the best price/performance on the market.

Precaution (no warranty coverage):
- The appearance has been modified or changed, and unauthorized modification of software is not guaranteed. Products that have been disassembled internally and are damaged due to the use of third-party firmware are not guaranteed.
- Non warranty for misuse, abuse, negligence, or abnormal physical, electromagnetic, or electrical stress, including lightning strikes, water ingress into static equipment, and accidents.
- Failure to provide product MAC address, absence of original factory label, or loss of original factory label.
- All products burnt out due to incorrect installation methods such as non ESD or ungrounded cables will not be guaranteed.
- Accessories such as antennas, power supplies, and brackets are not covered by warranty.
- Pay attention to the correct use of network cables according to the 568B standard. The order of network cables is orange white, orange, green white, blue, blue white, green, brown white, and brown. Please follow relevant laws and regulations when using wireless products.

Package Included:
- 1 x Switch
- 1 x Power adapter

For Mikrotik Support:
- For Mikrotik series router basic IPv4 networking configuration (dial-up, dynamic IP, static IP)
- Intranet PPPOE server configuration (only creating speed limit configuration files and dial-up account information)
- DDNS configuration (only supports for Mikrotik cloud DDNS)
- Port mapping configuration, UPNP configuration, interface ARP address setting, and port aggregation configuration
- Dual line access PCC load balancing (only supports the same access broadband, the effect of different operators is subject to actual measurement)
- Simple queues and PCQ speed limits
- Basic vlan division
- Intranet DNS hijacking configuration, intranet multi IP access isolation configuration
- Domain name based interception configuration (such as prohibiting 3389 web games)
- CAPsMAN Unified Wireless Management Configuration
- Bridge peer-to-peer and peer-to-peer wireless link configuration
- Wireless Relay and WDS Networking Configuration

UBNT Supported:
- Basic IPv4 networking configuration for Edge routers (dial-up, dynamic IP, static IP)
- Edge router dual line load balancing configuration
- Edge Router Multi VLAN Gateway Configuration
- Edge router port mapping, UPNP, Hardware acceleration configuration
- Edge System Multi VLAN+SSID WiFi Networking Configuration
- AmpliFi MESH System Networking Configuration
- Basic networking configuration of UniFi system
- UniFi system multi VLAN+SSID WIFI networking configuration
- AirFiber and AirMAX Bridge Connection Configuration
- Edge router, Unifi switch and AP, airFiber and airMAX flash
