Original LimeSDR Mini Software Radio Development Board Bandwidth 30.72MHz Acrylic Shell (Full Kit)
LimeSDR Mini VS LimeSDR:
The LimeSDR and LimeSDR Mini are members of the same family of software-defined radios. One does not replace the other. Rather, they are complementary.

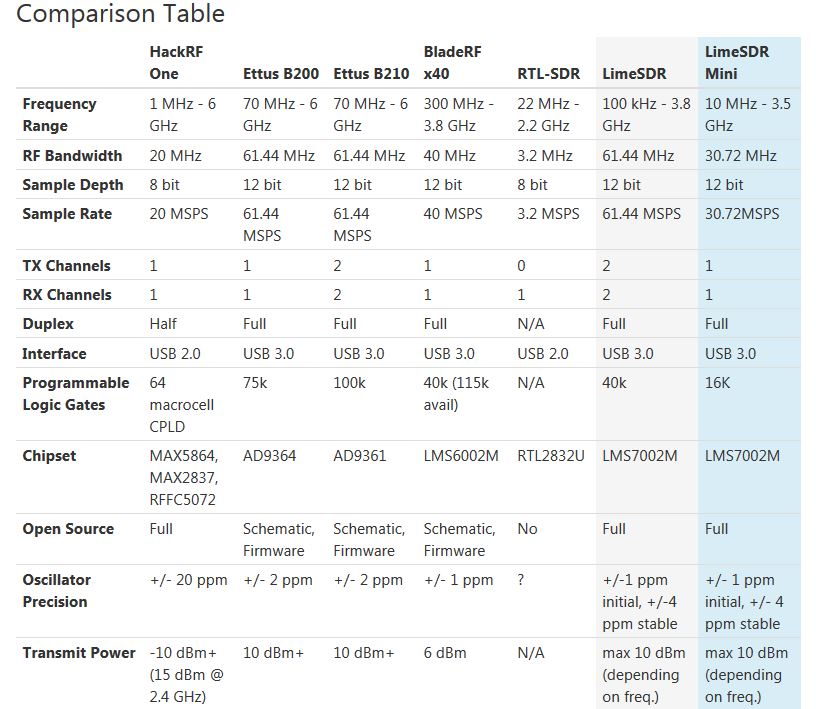

Simply put, the LimeSDR Mini is a smaller, less expensive version of the original LimeSDR. However, it still packs a punch - at its core, the LimeSDR Mini uses the same LMS7002M radio transceiver as its big sibling. The Mini has two channels instead of four, and, by popular demand, SMA connectors instead of micro U.FL connectors. Check out the comparison table below for more details.
Technical Parameters:
- Bandwidth: 30.72MHz
- Frequency Range: 1MHz-3.5GHz
- RF Connector: SMA Connectors*2
- Memory: 1*4MB Flash Memory For Date
- Multiple-Input Multiple-Output: None
- FPGA: Altera MAX10
- Oscillator: Rakon 30.72MHz VCTCXO
- USB3.0 Controller: FTDI FT601
- Output Power: <10dbm
- RF Transceiver: LMS7002M FPRF
- Power Supply Port: USB
- Status Indicator: None
- Size: 69 x 31.4mm

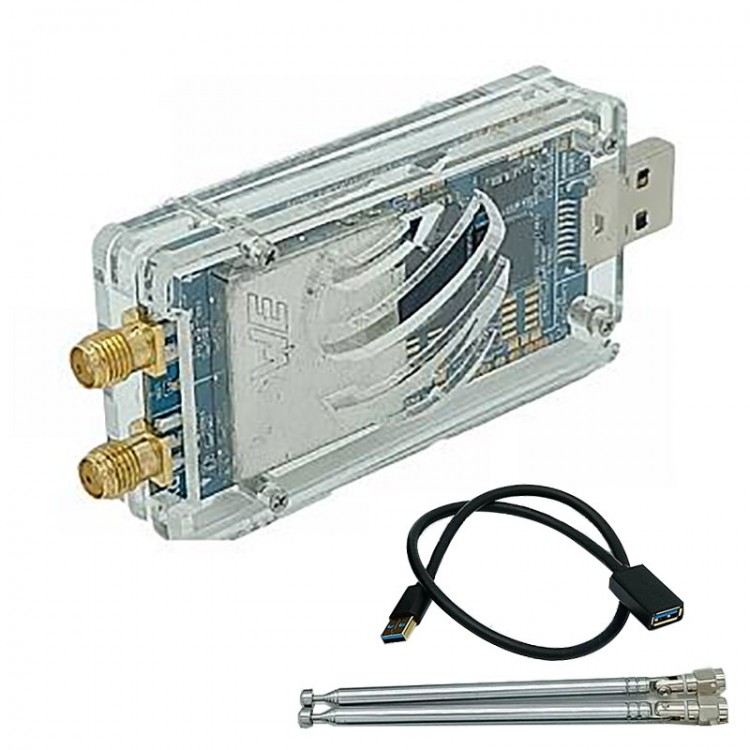

Package Included:
- 1 x LimeSDR Mini Board
- 1 x Acrylic Shell
- 1 x Premium Data Cable
- 2 x Antennas
