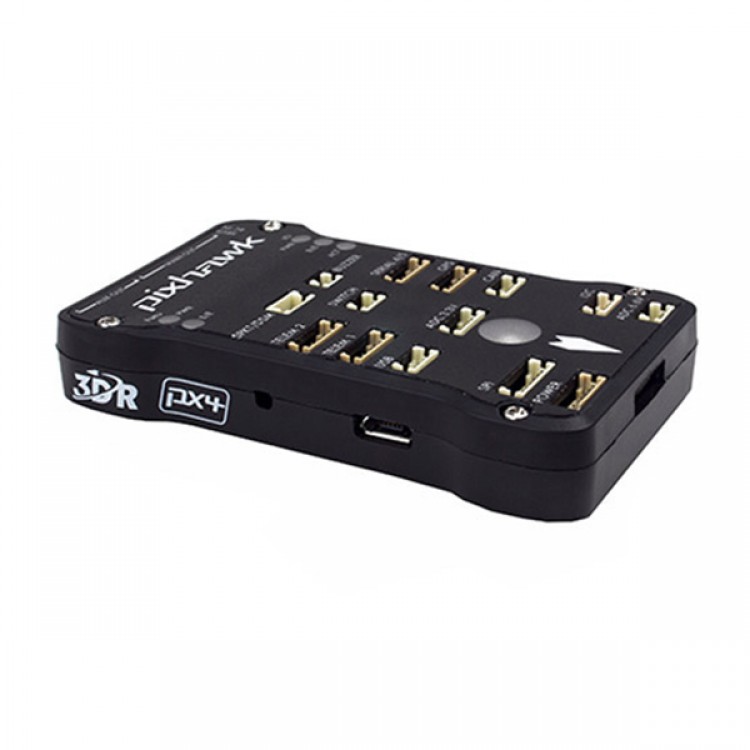

3DR Pixhawk

NOTE: Please note that this is listing is for Pixhawk flight controller only,and may takes 2-5 days to process order

Pixhawk is an advanced autopilot system designed by the PX4 open-hardware project and manufactured by 3D Robotics. It features advanced processor and sensor technology from ST Microelectronics® and a NuttX real-time operating system, delivering incredible performance, flexibility, and reliability for controlling any autonomous vehicle.

The benefits of the Pixhawk system include integrated multithreading, a Unix/Linux-like programming environment, completely new autopilot functions such as Lua scripting of missions and flight behavior, and a custom PX4 driver layer ensuring tight timing across all processes. These advanced capabilities ensure that there are no limitations to your autonomous vehicle. Pixhawk allows existing APM and PX4 operators to seamlessly transition to this system and lowers the barriers to entry for new users to participate in the exciting world of autonomous vehicles.

The flagship Pixhawk module will be accompanied by new peripheral options, including a digital airspeed sensor, support for an external multi-color LED indicator and an external magnetometer. All peripherals are automatically detected and configured.

Pixhawk orders will begin shipping in late October 2013.

Features

    Advanced 32 bit ARM Cortex® M4 Processor running NuttX RTOS
    14 PWM/servo outputs (8 with failsafe and manual override, 6 auxiliary, high-power compatible)
    Abundant connectivity options for additional peripherals (UART, I2C, CAN)
    Integrated backup system for in-flight recovery and manual override with dedicated processor and stand-alone power supply
    Backup system integrates mixing, providing consistent autopilot and manual override mixing modes
    Redundant power supply inputs and automatic failover
    External safety button for easy motor activation
    Multicolor LED indicator
    High-power, multi-tone piezo audio indicator
    microSD card for long-time high-rate logging



Specifications

Microprocessor:

    32 bit STM32F427 Cortex M4 core with FPU
    168 MHz/256 KB RAM/2 MB Flash
    32 bit STM32F103 failsafe co-processor

Sensors:

    ST Micro L3GD20H 16 bit gyroscope
    ST Micro LSM303D 14 bit accelerometer / magnetometer
    MEAS MS5611 barometer

Interfaces:

    5x UART (serial ports), one high-power capable, 2x with HW flow control
    2x CAN
    Spektrum DSM / DSM2 / DSM-X® Satellite compatible input
    Futaba S.BUS® compatible input and output
    PPM sum signal
    RSSI (PWM or voltage) input
    I2C®
    SPI
    3.3 and 6.6V ADC inputs
    External microUSB port

Power System:

    Ideal diode controller with automatic failover
    Servo rail high-power (7 V) and high-current ready
    All peripheral outputs over-current protected, all inputs ESD protected

Weight and Dimensions:

    Weight: 38g (1.31oz)
    Width: 50mm (1.96")
    Thickness: 15.5mm (.613")
    Length: 81.5mm (3.21")
