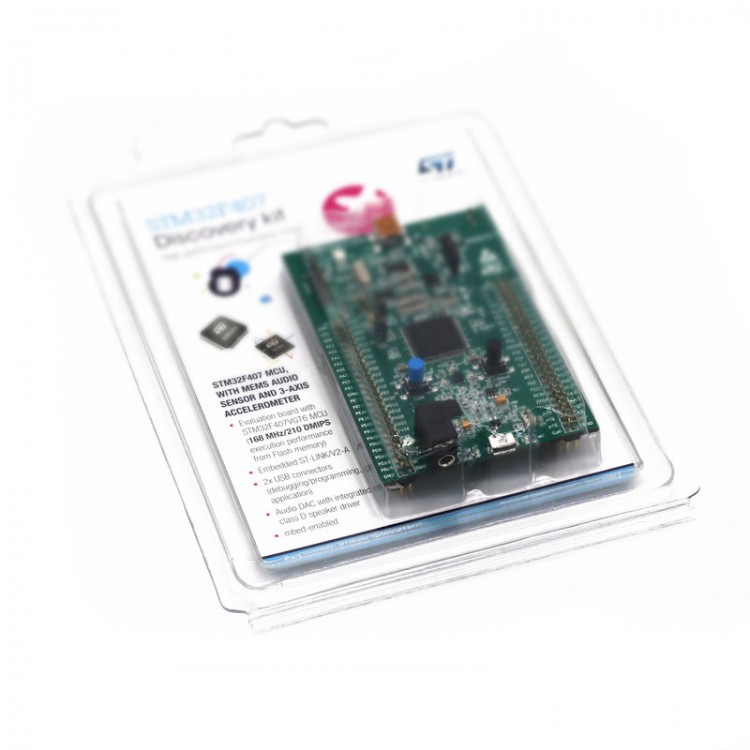

Original STM32F407G-DISC1 STM32F4DISCOVERY STM32F407VGT6 Microcontroller Development Board for ST

Original STM32F407G-DISC1 STM32F4DISCOVERY STM32F407VGT6 Microcontroller Development Board for ST

Description:
The STM32F4DISCOVERY Discovery kit leverages the capabilities of the STM32F407 high-performance microcontrollers, to allow users to develop audio applications easily. It includes an ST-LINK/V2-A embedded debug tool, one ST-MEMS digital accelerometer, one digital microphone, one audio DAC with integrated class D speaker driver, LEDs, push-buttons, and a USB OTG Micro-AB connector.

Specialized add-on boards can be connected by means of the extension header connectors.

All Features:
- STM32F407VGT6 microcontroller featuring 32-bit for Arm Cortex-M4 with FPU core, 1-Mbyte Flash memory and 192-Kbyte RAM in an LQFP100 package
- USB OTG FS
- MEMS 3-axis accelerometer for ST
- ST-MEMS audio sensor omni-directional digital microphone
- Audio DAC with integrated class D speaker driver
- User and reset push-buttons
- Eight LEDs: LD1 (red/green) for USB communication; LD2 (red) for 3.3 V power on; Four user LEDs, LD3 (orange), LD4 (green), LD5 (red) and LD6 (blue); Two USB OTG LEDs, LD7 (green) VBUS and LD8 (red) over-current
- Board connectors: USB with Micro-AB; Stereo headphone output jack; 2.54 mm pitch extension header for all LQFP100 I/Os for quick connection to prototyping board and easy probing
- Flexible power-supply options: ST-LINK, USB VBUS, or external sources
- External application power supply: 3V and 5V
- Comprehensive free software including a variety of examples, part of STM32CubeF4 MCU Package, or STSW-STM32068 for using legacy standard libraries
- On-board ST-LINK/V2-A debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
- Support of a wide choice of Integrated Development Environments (IDEs) including for IAR Embedded Workbench, MDK-ARM, and STM32CubeIDE

Package Included:
- 1 x Discovery Kit
