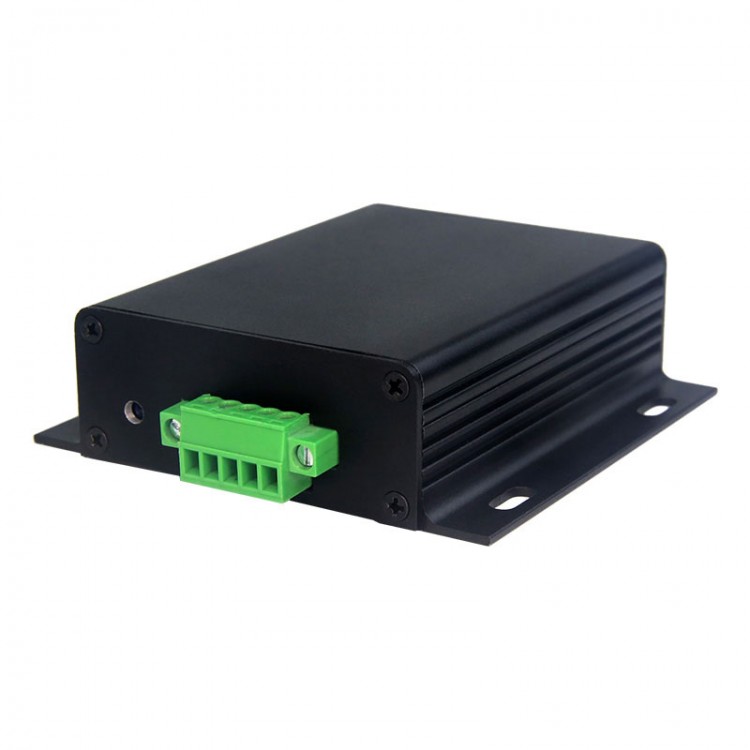

P0 10-15V to 5V Step-down Converter Vehicle Isolated Power Supply DC Power Supply (P0a w/ 5V Output)

P0 10-15V to 5V Step-down Converter Vehicle Isolated Power Supply DC Power Supply (P0a w/ 5V Output)

Features:
Power Supply Filtering
* The application of the filter circuit also directly affects the efficiency and sound quality of the entire system. It can reduce the damage to equipment that may be caused by high-frequency interference. In situations of power fluctuations or load changes, the filter capacitor can provide the necessary amount of electricity to maintain a stable output voltage and dynamic response.

BC Capacitors
* They work in conjunction with an inductor to smooth the power supply signal, ensuring the output signal is pure and clear.

Power Isolation Module
* It reduces ripple, with a metal shielding cover.

Output Filter Circuit
* It improves dynamic response.

Power Supply Interface
* 3-wire input or 2-wire output. The input is equipped with an ACC interface.

Filter Capacitor For Vishay
* The filter capacitor enhances the purity of the power supply.

EMC Flat Copper Inductor
* High conduction capacity, high current density, low magnetic leakage, impedance balance, and low DC resistance

ACC Start-up Circuit
* The device powers on 10 seconds after the car starts.

High-power Relay Protection
* It solves car ignition shock.

Product Parameters:
* Model: P0
* Dimensions: 80mm (Length) × 84mm (Width) × 25mm (Thickness)
* Weight: 158 grams
* Power Supply Interface: Plug-and-play, fixed with screws (5-wire)
* Input Voltage: 10V-15V wide-voltage, DC
* Input Definition: Positive, ACC, GND (Negative)
* Output Definition: Negative, Positive (from left to right)
* Output Current: >2A (Non-constant current)
* Output Voltage: 5V or 12V (Contact customer service for other voltages)
* Output Mode: Isolated type, constant voltage, non-constant current
* Delay / Noise Reduction: <0.07us / >50dB
* Operating Temperature: -20°C to 80°C
* Shell material: Aluminum alloy

Packing List:
* 1 x Power supply main unit
* 1 x Certificate of conformity
* 1 x Warranty card

Packaging Details:
* Weight: 0.32kg

Note:
* The electronic components are subject to adjustment and may vary slightly.
* The product pictures are for reference only and do not represent the actual shipment. Please refer to the actual product.
* Please contact us for the electronic instruction manual after purchasing. Thank you!
