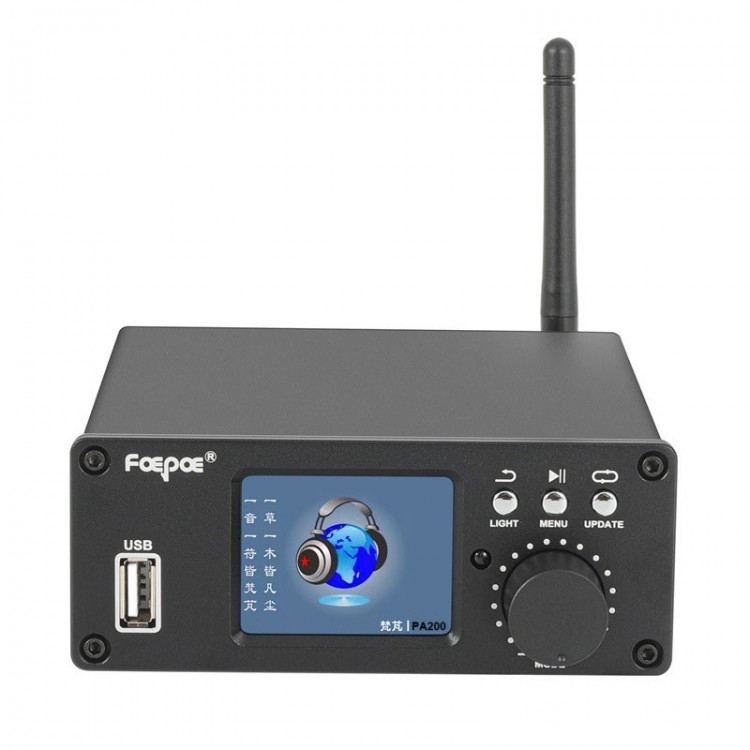

PA200 200W Stereo Power Amplifier Digital Broadcast Bluetooth5.3 Audio Decoder with 2-inch Color Screen

PA200 200W Stereo Power Amplifier Digital Broadcast Bluetooth5.3 Audio Decoder with 2-inch Color Screen

Features:

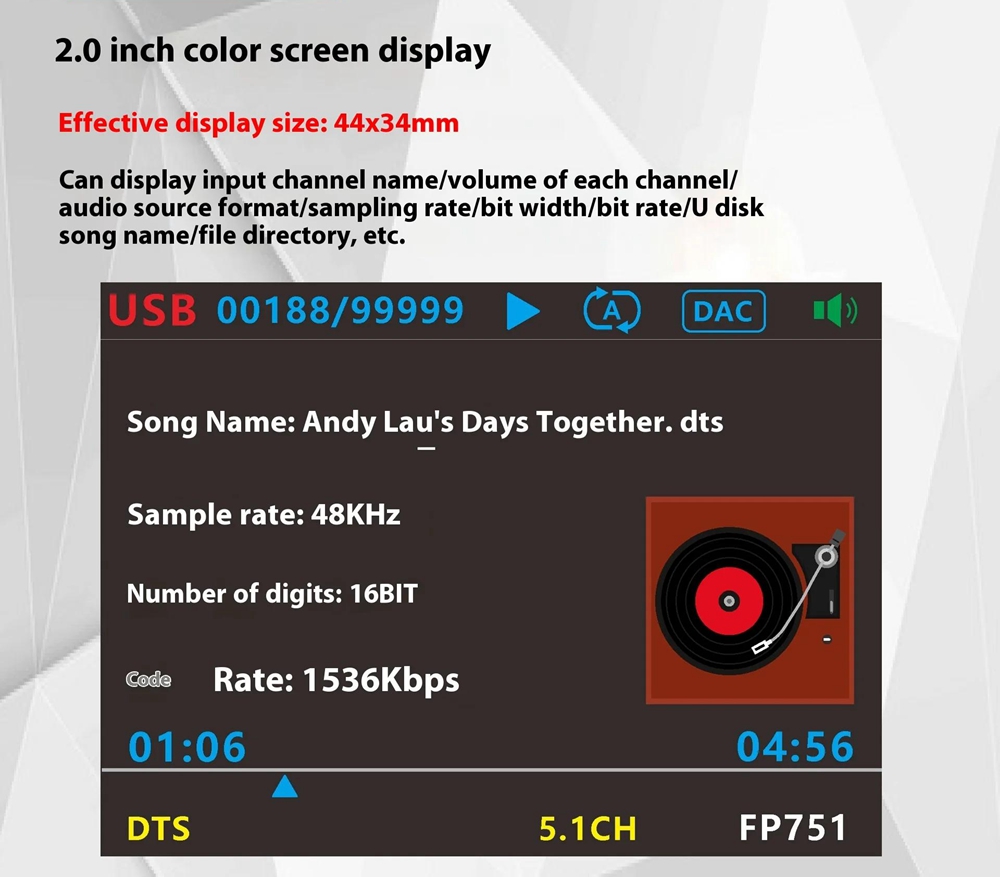

- 2.0-inch color screen display, effective display size: 44x34mm, can display input channel name/volume of each channel/audio format/sampling rate/bit width/bit-rate/USB song name/file directory, etc.

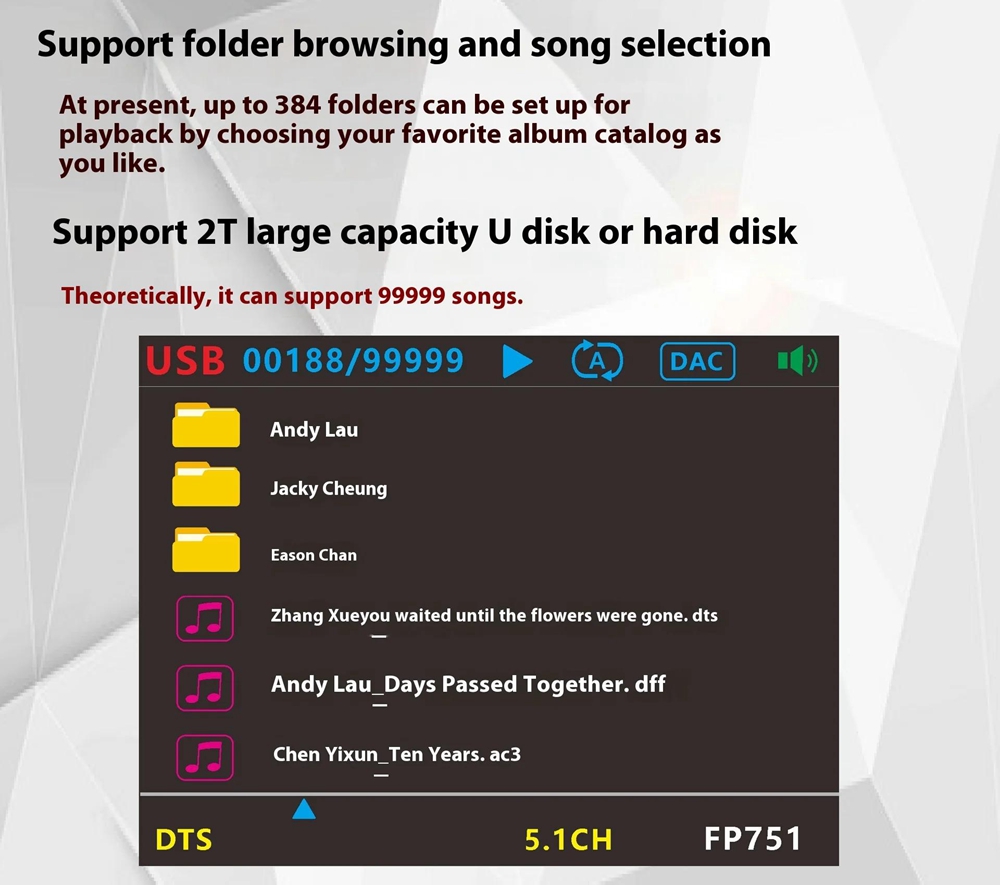

- Support folder browsing and song selection, freely choose your favorite album catalog to play. At present, up to 384 folders can be created, supporting 2T high-capacity USB or hard drives, and theoretically supporting 99999 songs.

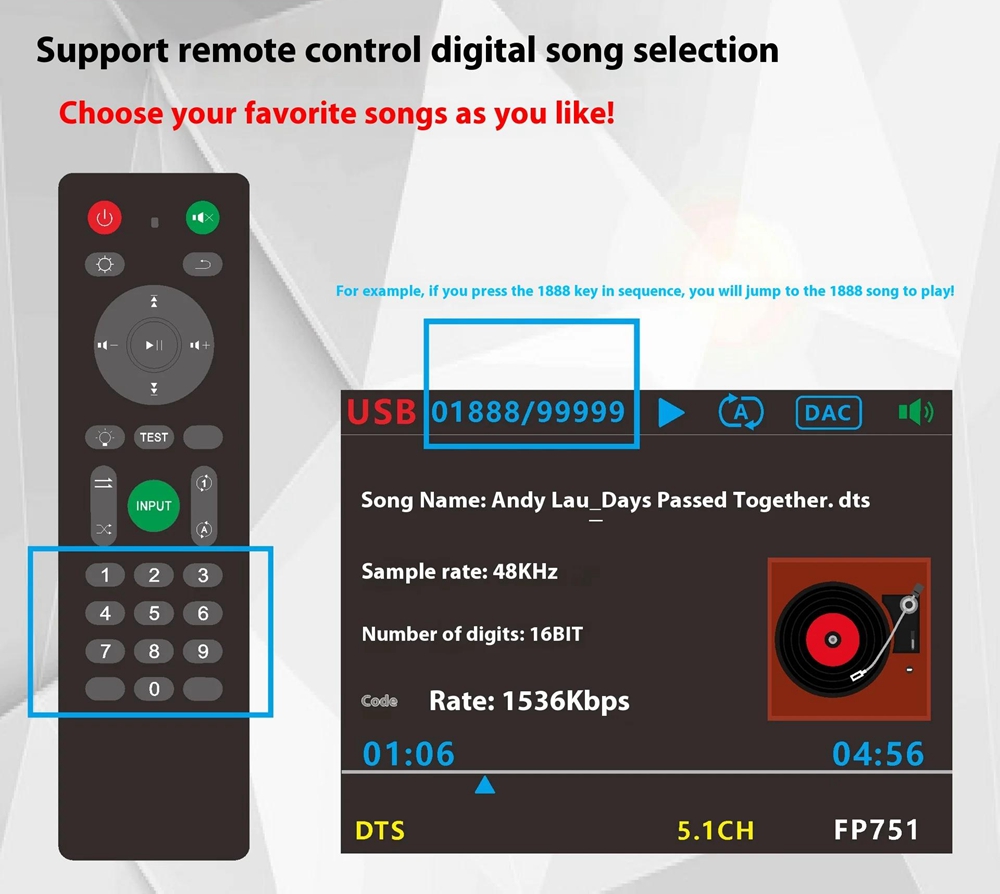

- Support remote control digital song selection.
- Dual volume adjustment: The volume of the front-end decoder is fine tuning, and the volume of each channel can be adjusted separately to achieve one's own "emperor position" in different occasions. The volume of the back-end amplifier is coarse tuning, with 7 selectable levels: -10dB/-5dB/0dB/+5dB/+10dB/+15dB/+20dB.
- USB flash drive/hard drive supports exFAT/FAT32 file system; DSD maximum DSD256/1BIT, supports DFF/DSF/DST formats; PCM sampling rate bit width up to 384Khz/32BIT; Supports playing multiple audio formats such as ISO/DSD/WAV/FLAC/APE/DTS/AC3/AAC/OGG/M4A/MP3; Supports for DTS/Dolby audio decoding and outputting 2.0 channels.
- The characteristics of Bluetooth5.3 version are short distance, fast speed, stable signal, lower latency and stronger anti-interference. The transmission rate is as high as 48Mbit/s, providing a better experience than lower versions! The protocol supports for LC3/ACC/SBC, among which LC3 is a new generation Bluetooth encoding algorithm with the advantages of simplicity, low latency, low power consumption, and high efficiency.
- ARC audio feedback function: If the HDMI-compatible port of the TV or projector supports ARC function, connect it to this amplifier through an HDMI-compatible cable to easily achieve a cinema level audio experience.
- Two digital amplifier chips, one chip for each channel, directly drive 3-8ohms passive speakers; Adopting digital DSP technology, fully digital transmission, eliminating background noise; The signal-to-noise ratio (SNR) is as high as 114dB; the total harmonic distortion+noise (THD+N) is ≤ 0.03%; Small signal bass enhancement technology.

Specification:
- Input interface: ARC + coaxial + optical + Bluetooth5.3 + USB play
- Output interface: 2 channels 100W power amplifier output (banana connector)
- USB flash drive play format: iso/dsd/dts-es/dts/ac3/flac/ape/wav/ogg/aac/m4a/mp3 etc.
- USB flash drive play ability: support DSD256/1bit, PCM support 384kHz/32bit
- USB flash drive operation: support previous/next/single loop/folder loop/play/pause, etc.
- USB song selection operation: support folder browsing and remote control digital selection
- Power amplifier max. output power: 2 x 100W at 4ohms
- SNR: 112dB
- THD+N: ≤0.03%
- Bluetooth version: 5.3/SBC and AAC

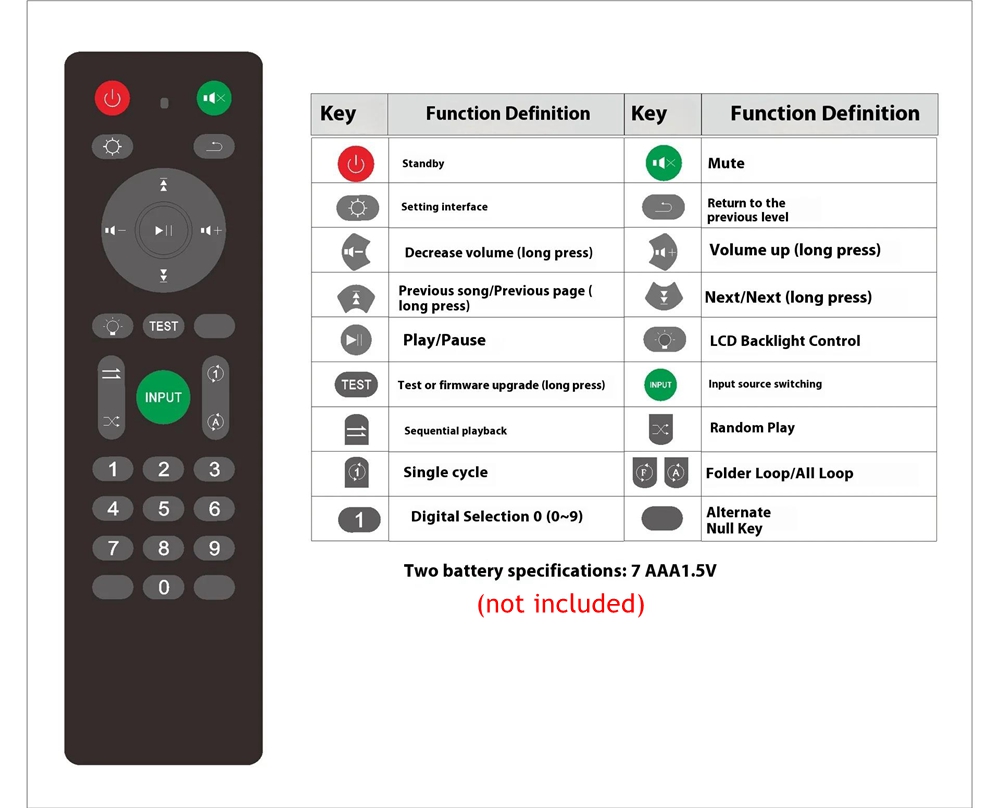

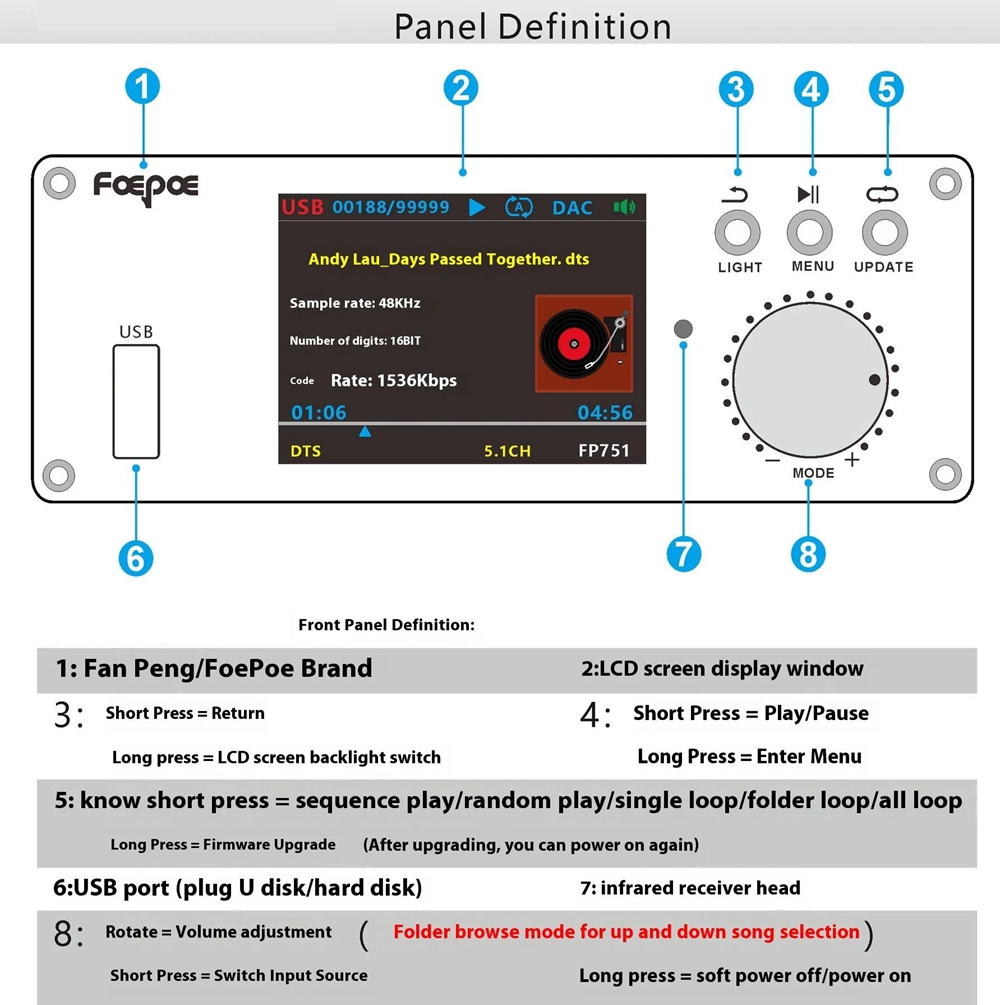

- Operation control: support input mode switch/volume adjustment/setting/song selection through buttons and remote control
- Power-off memory: support input mode memory, volume memory, song selection memory and setting memory
- Volume adjustment: support total volume adjustment and mono volume adjustment
- LCD display: support 2.0-inch color screen display, support backlight switch
- Power supply: DC24V/5A
- Product size: 160 x 122 x 48mm
- Net weight: 0.45kg

Package Included:
- 1 x Power Amplifier
- 1 x Remote Control
- 1 x DC24V/5A Power Adapter
- 1 x Optical Cable
- 1 x Bluetooth Antenna
- 1 x User Manual
