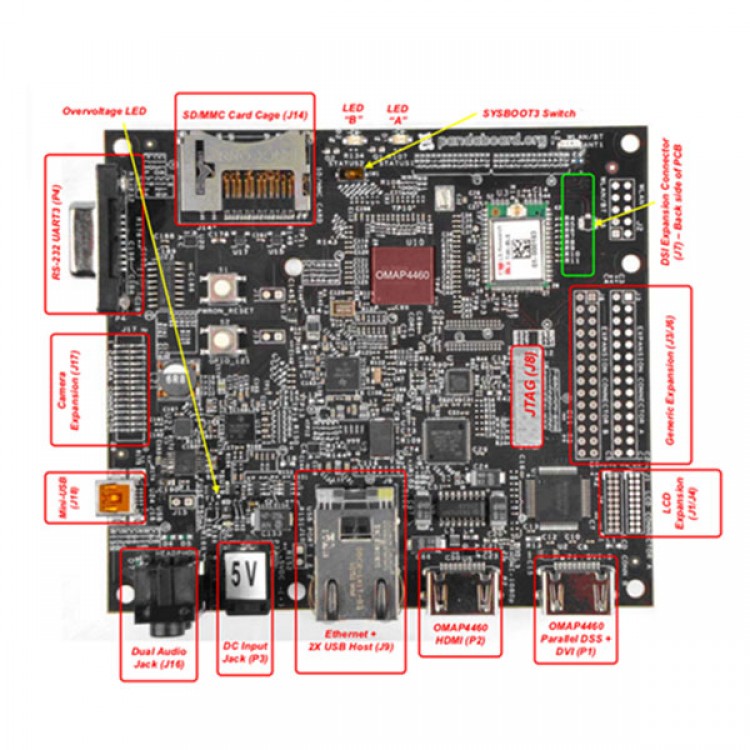

Pandaboard ES Board ARM Cortex-A9 Development Board OMAP4460
Information
- Pandaboard ES uses OMAP4460 as the core processor. OMAP4460 uses dual core ARM ® Cortex ™ -A9 symmetrical structure, and built-in graphics accelerator PowerVR ™ SGX540, is a high performance processor, provide the symmetric multiprocessing (SMP) performance and multimedia graphics with 3D rich support. Pandaboard ES also supports WLAN and Bluetooth (Bluetooth ®) connection technology, the ideal is a platform in the mobile power budget within the project to ensure the full play of their function
OMAP4460
1) Dual core ARM Cortex-A9 MPCore (each core runs at 1.2GHz)
2)DSP kernel based on TI C64x
3) Dual core ARM Cortex-M3 MPCore
4) 2D/3D graphics accelerator PowerVR ™ SGX540
Multi-Media
1)IVA3 multimedia accelerator, support full HD, 1080p@30fps HD recording and broadcasting standard
2) POWERVR ™ SGX540 graphics core, supports almost all major API including OpenGL ® ES V2.0, the frame to improve the picture effect, optimization, lower power consumption
3) Integration image signal processor (ISP)
Memory
1) 1GB LPDDR2 SDRAM
2) SD/SDIO/MMC Media Card Cage
Wireless connection
WiLink ™ 6 (802.11b/g/n, Bluetooth, v2.1+EDR)
Display
1) HDMIv1.3 connector
2) DVI-D connector
3) support synchronous dual display
Extension
1) Two USB Host terminal
2) One USB OTG
3) One 100M Ethernet port
4) One DB9 RS232 interface
5) LCD interface
Support
1) Open source hardware design, open principle diagram, PCB diagram, BOM list
2) Software open source, has released the Android, Ubuntu, Linux, other systems are being issued in
Shipping list
1* PandaboardES Board
