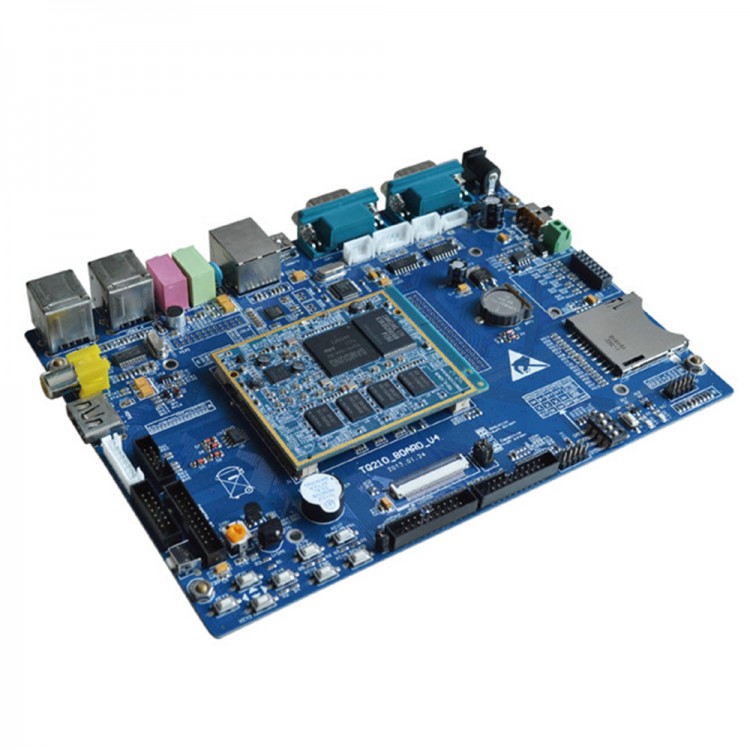

S5PV210 Core Board Cortex A8 Development Module Embedded ARM 1G DDR2 1G Nandflash for Android

Availability: In stock, usually dispatched in 1 business day

  • Price:$76.88
  • Price in reward points: 769 Reward Points: 8
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $75.34 $73.80 $71.50 $68.42 Contact US
Quantity:

S5PV210 Core Board Cortex A8 Development Module Embedded ARM 1G DDR2 1G Nandflash for Android

Specification:

- Core board size: 63*53*7mm
- Pin: 280 pin, B2B interface
- Core borad: 10 layers
- CPU:  Samsung S5PV210 Cortex A8
- Main frequency: 1Ghz
- DDR2: 1G,DDR2 128M*8pcs
- Nandflash:1G, SLC(K9K8G08) can be expended to 2G
- PMU: TPS659101
- Board power:  1.5W (5V-300mA)

Android kernel function:
- For s5pv210 hardware decoding and encoding drive
- Image rotary flip driver
- Digital camera driver
- Acceleration sensor driver
- Infrared receiving driver
- Temperature sensor driver
- Support for dynamic adjustment of the support of the LCD parameters
- Support virtual touch screen
- Capacitive screen drive
- HDMI audio and video synchronization

TQ210 PDA conventional drive:
- YAFFS file system (Android 2.3)
- EXT4 file system (Android 4)
- RTC driver
- IIC driver
- LCD driver
- Backlight driver
- Resistance screen drive
- ADC driver
- PWM driver
- Sound card driver
- 100M network card driver
- USB driver
- 4 serial port driver
- User key driver
- SD card driver
- WIFI SDIO driver
- 3G driver

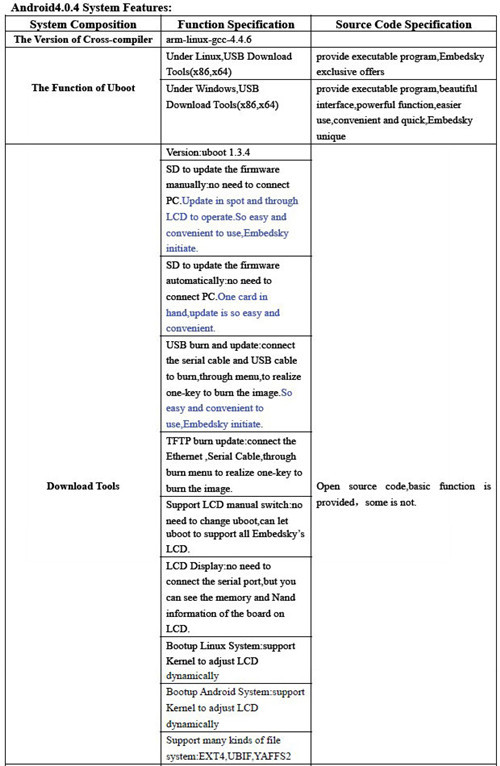

Linux 3.0.8:
- Cross compiler: Gcc-4.4.6
- Download tool: Linux:USB download tool (x86,x64) (provide program);Windows: USB  download tool(x86,x64)

Uboot function:
- SD upgrades firmware: Can be upgraded manually without computer ( inactive)
- SD pgrades firmware: Can be upgraded automatically without computer
- USB programming upgraded: Connect seriel port line to the USB cable
- TFTP programming upgraded: Link with net, seriel port
- Support LCD manually switching
- Start Linux system
- Start Sndroid system
- Multi-format: EXT4,UBIF,YAFFS2

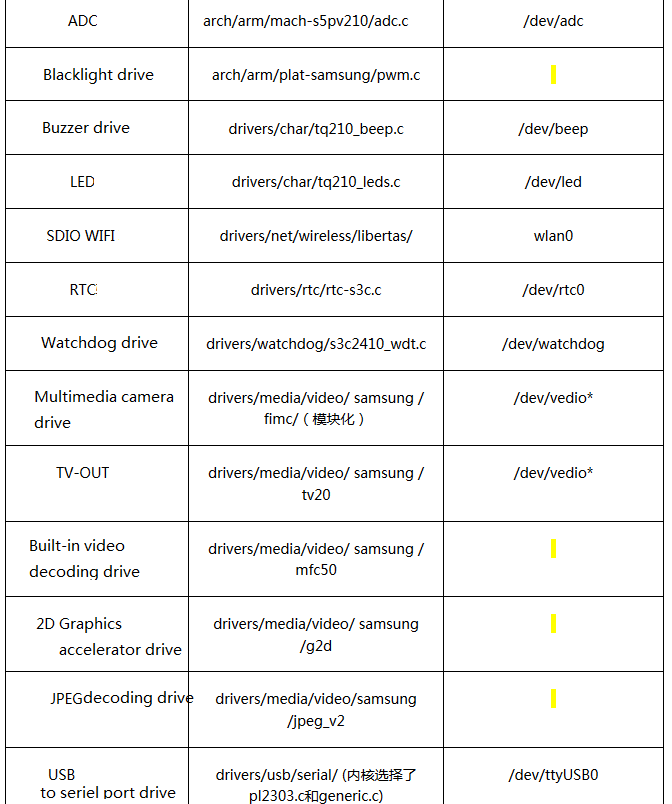

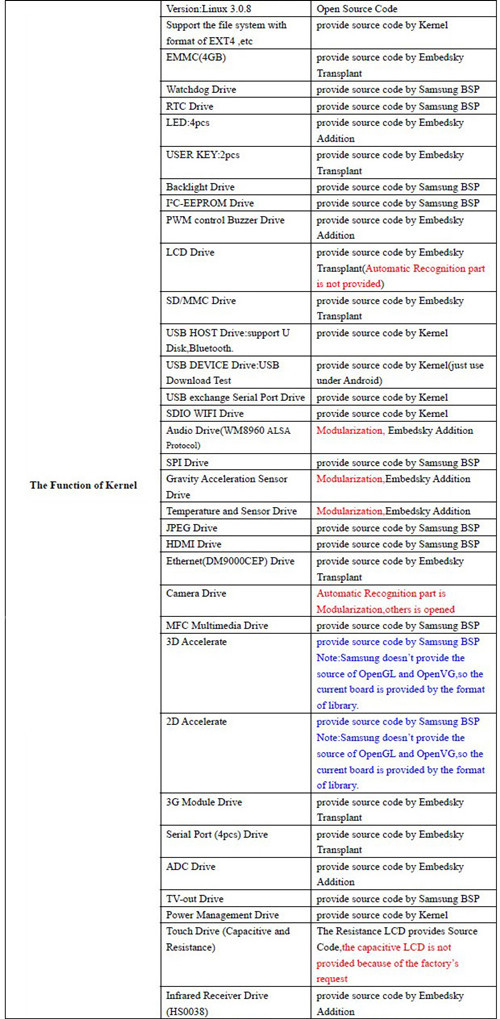

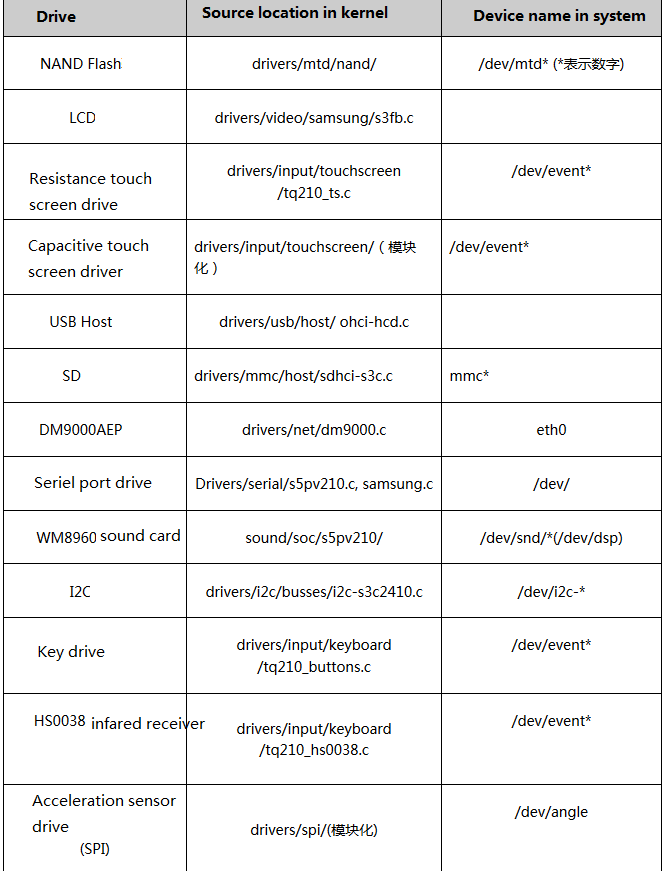

System kernel support function:
- Version: Linux 3.0.8 (active)
- Support YAFFS2/CRAMFS/NFS/UBIFS/FAT32 etc.
- NAND FLASH:1G SLC(k9k8g08uob)
- Watchdog drive
- RTC drive
- LED:2
- USER KEY: 8
- Blacklight drive
- IIC-EEPROM drive
- PWM control buzzer drive
- LCD drive
- SD/MMC drive
- USB HOST drive: Support U-disk, bluetooth
- USB DEVICE drive: USB download debugging
- USB to seriel port drive
- SDIO WIFI drive
- Audio drive(WM8960,OLSA protocol)
- SPI drive
- Acceleration driven by gravity
- Temperature sensor drive
- FIMC drive
- JPEG drive
- HDMI drive
- Ethernet (DM9000CEP)
- Camera interface drive
- Camera drive: OV9650(3640)
- MFC multimedia drive
- 3D accelaration
- 2D accelaration
- 3G module drive
- Seriel port drive:4
- ADC drive
- TV-out drive
- Power management drive
- Touch drive
- HS0038 infared receiver drive




Package List:
- 1 x S5PV210 Core Board
