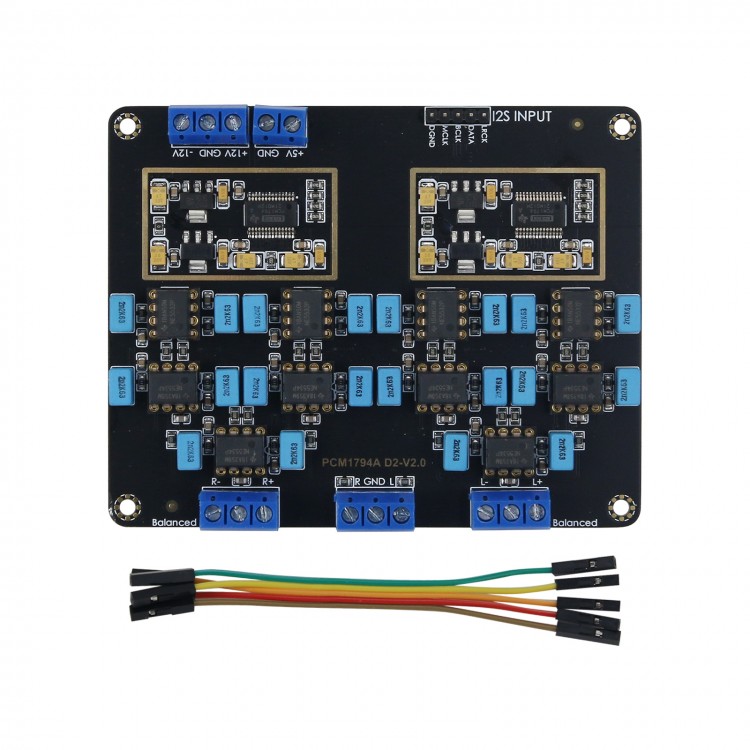

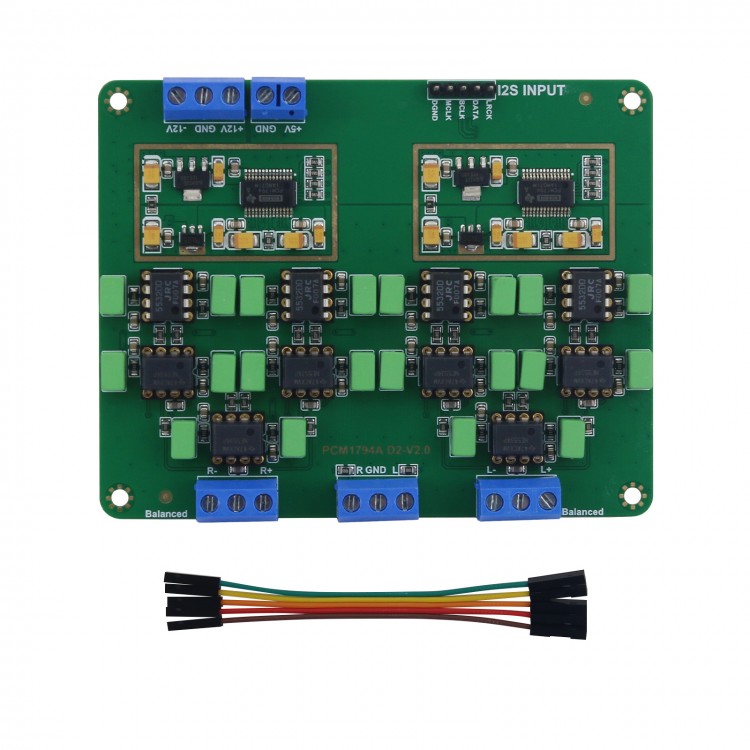

PCM1794A DAC Decoder Board Balanced HiFi Parallel Board 24Bit 192KHz Gold-plated Finished
Description:
Integrated 5V core power supply IC, parallel PCM1794A dynamic range and signal to noise ratio are greatly enhanced, the sound is more pleasant, sound density is also enhanced.
Parameters:
- Digital Power supply: 5-12V DC
- Analog Power supply: ± 12V DC
- Input Type: IIS Bus
- Output Amplitude:
RCA Output: 2.1V RMS
Balanced Output: 5.4V RMS
- SNR: 132dB
- Sampling Rate: 24-Bit, 192-kHz
- Output Type: balanced output, single-ended output
Package Included:
- 1 x Finished PCM1794A DAC Board
Note: Wiring in strict accordance with the board marked operation, or it will cause damage!
