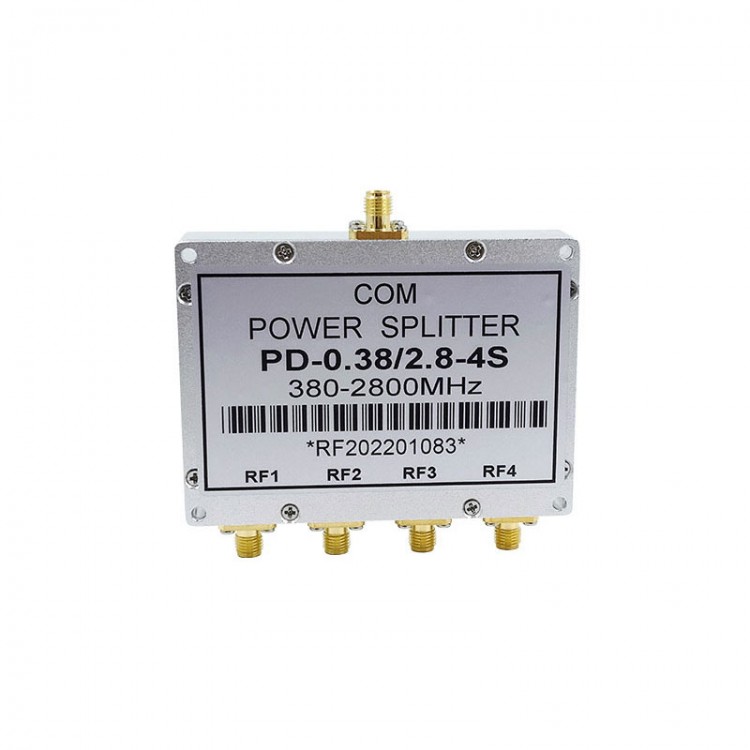

PD-0.38/2.8-4S 380-2800MHz Microstrip 4-Way Power Splitter with SMA Female to Female Connectors
Features:
* Microstrip 4-way power splitter
* 380-2800MHz power divider
* With SMA female to female connectors
* Aluminum housing with sandblasted finish
* The product undergoes rigorous testing before shipment
Technical Parameters:
* Frequency range: 380-2800MHz
* Insertion loss (including power split ratio): ≤7.0dB
* Isolation: ≥20dB
* Input VSWR: ≤1.4
* Output VSWR: ≤1.3
* Amplitude balance: ≤0.3dB
* Phase balance: ±5°
* Impedance: 50Ω
* Connector type: SMA female to female connector
* Power capacity: Forward: 10W (Avg.) and 100W (Peak); Reverse: 2W (Avg.) and 30W (Peak)
* Operating temperature: -30 to 70°C
Application Scenarios:
* Ideal for situations where indoor GPS signal is weak but GPS testing or experimentation is required, such as positioning tests for electronic devices like smartphones and tablets.
* It can be used for GPS signal splitting, WiFi signal splitting, RF signal power distribution, and laboratory experiments.
Packing List:
* 1 x Power Divider
Packaging Details:
* Weight: 0.2kg
