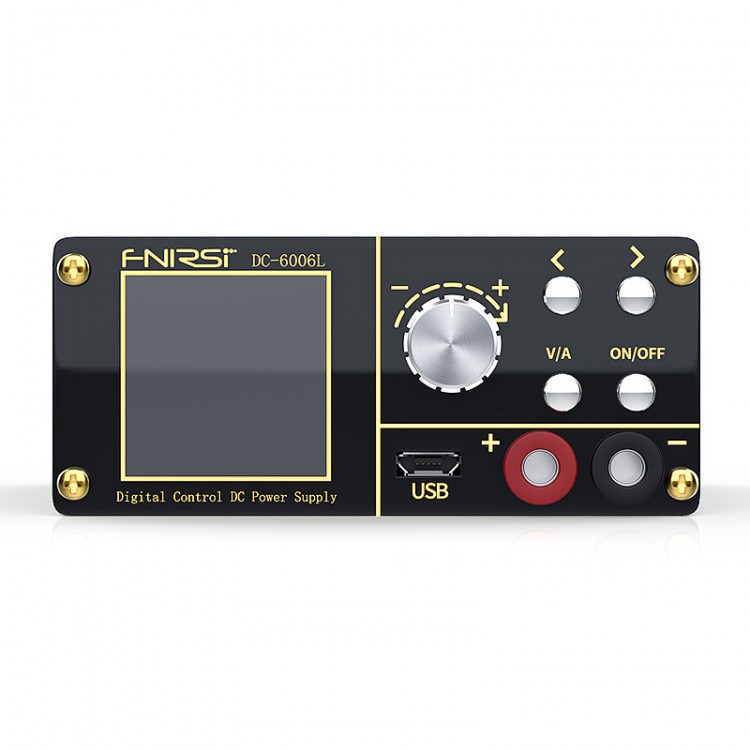

Description:
-
FNIRSI DC6006L programmable digital controlled step-down DC adjustable
power supply is small in size, comprehensive in input interface, stable
in performance, high in accuracy and high in efficiency, and contains a
variety of humanized system settings. It adopts a 1.44-inch LCD
high-definition display, which displays a variety of data on one screen,
and the page is simple and rich.
Features:
- 1.44-inch
high-definition color screen, comprehensive information, clear at a
glance: basic voltage, current, power parameters, temperature, running
time, equipment status.
- Comprehensive input interface: DC, PD,
banana head interface (two or more interfaces are prohibited from being
connected at the same time).
- Stable output, accurate, safe and efficient.
- The screen can be rotated, and the device can be placed horizontally or vertically.
-
Intelligent temperature control, powerful heat dissipation performance:
real-time detection of device temperature and power, when the
temperature is greater than 40 degrees Celsius and the power is greater
than 100W, the fan starts automatically.
- PC connection control, comprehensive functions, more convenient control.
-
Comprehensive protection, safe and reliable: input anti-reverse
connection, in the protection interface, adjustable over voltage
protection (OVP), over current protection (OCP), over power protection
(OPP), over temperature protection (OTP), overtime protection (OHP) and a
series of protection measures, once the protection measures are
triggered, the output will be automatically stopped.
- Lightweight, compact, mini size and portable.
- One key to turn off the screen, making the design more user-friendly.
Specifications:
- Material: ABS
- Color: black
- Input voltage: 6V-70V
- Output voltage: 0-60V (Note: ensure that the input voltage is greater than 1.1 times the output voltage)
- Output current: 0-6A
- Output power: 0-360W
- Voltage resolution: 0.01V, accuracy: ±0.3%+3 counts
- Current resolution: 0.001A, accuracy: ±0.5%+5 counts
- Output ripple: 100mV peak-to-peak value typical
- Item size: 100 * 85 * 37mm / 3.9 * 3.3 * 1.5in
- Package size: 130 * 100 * 60mm / 5.1 * 3.9 * 2.4in
- Package weight: 260g / 9.2ounce
Packing List:（The following is the basic package）
1 * FNIRSI DC6006L
1 * USB Data Cable
1 * Pair of Crocodile Cables
