Specification:
- TCP/RS485 serial communication convert module TCP485-DIN,support 255 pcs networking
- Mode:PD4-DIN Pro.(Leading edge dimmer)
- Controlled loop:4 channel controlled light adjusting output
- Button:4 switch buttons
- Power module:12V DC 1A
- Communication port:RS485
- Working voltage:120V~250V(110V/220V) 50/60Hz
- Operation temperature/humidity:0-45℃/20%~93%RH
- Storage temperature/humidity:-45-55℃/10%~93%RH
- 4-channel output,single channel 2.5A current,10A in total
- 35mm guide rails install
- Install:guide rails

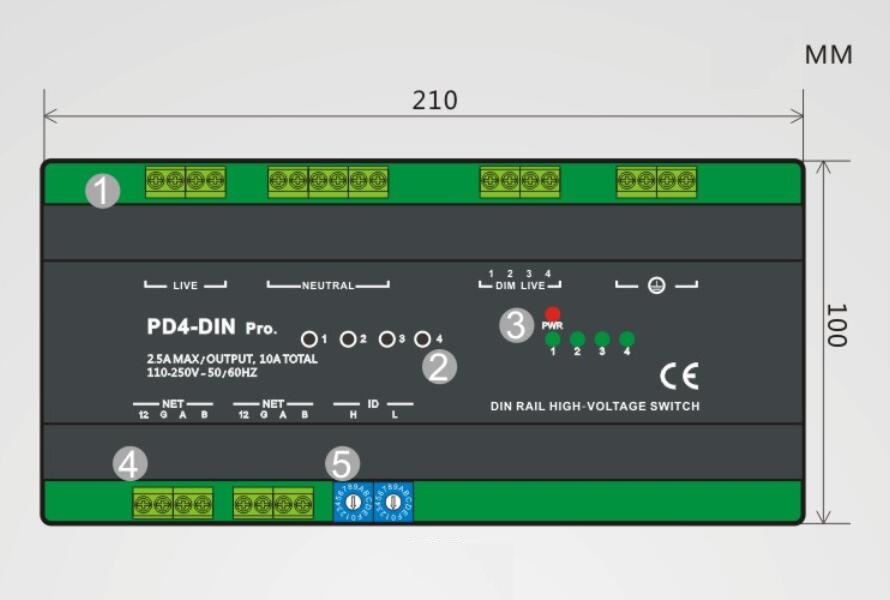

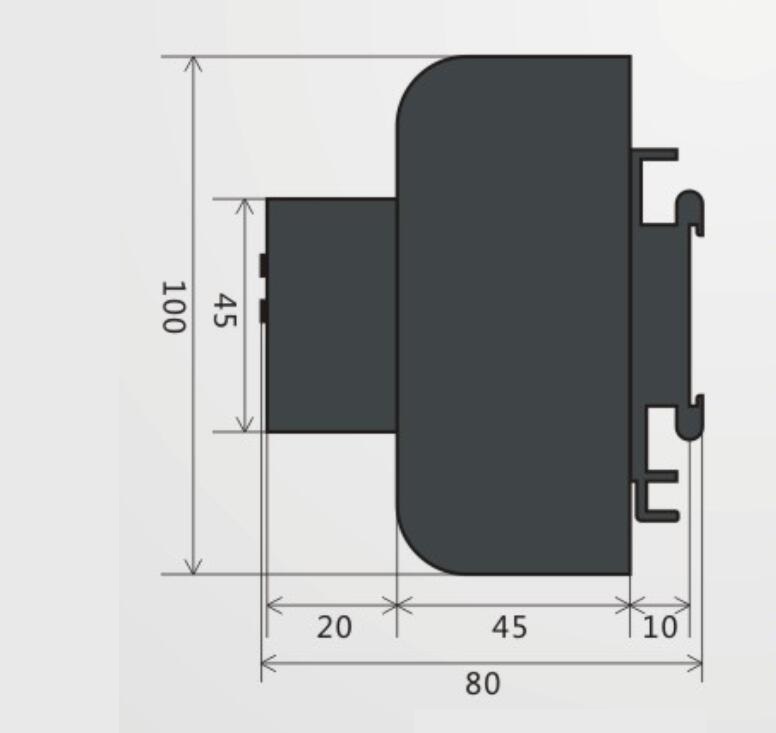

- Size:210x100x80mm(LxWxH)
Package List:
- 1 x PD4-DIN Pro RS485 Dimming module
- 1 x User manual
