8 Channel Programmable RS485 Serial Port Relay Board Smart Home Lighting Control Module Modbus Switch Input and Output

Availability: In stock, usually dispatched in 1 business day

  • Price:$140.87
  • Price in reward points: 1409 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $138.05 $135.24 $131.01 $125.37 Contact US
Quantity:

8 Channel Programmable RS485 Serial Port Relay Board Smart Home Lighting Control Module Modbus Switch Input and Output


Product description

This product is an intelligent programmable controller that does not require a gateway. The output uses 8 imported Omron 16A high-power relays, 8 optically isolated inputs, standard 485 and network cards. It is a smaller size among similar products on the market at present, accounting for only 4 open positions, the same layer of guide rails are free of wire splicing, and a variety of networking methods are suitable for smart homes, commercial lighting, smart agriculture and other automated fields.


1. The ultra-small volume only occupies 4 open positions, which is a powerful tool for small electric boxes in smart homes.

2. Humanized design, the same layer of guide rails can realize wire-free splicing expansion

3. Free programming through the host computer software, all internal resources are open

4. Use a variety of communication methods to make the module more compatible.

5. Cooperate with the voice module.

6. Support API control to facilitate connection with third-party platforms.

7. Support protocol conversion, protocol transparent transmission, wireless to 485, network to 485, etc.

8. The built-in high-precision clock chip can realize local timing control

9. Built-in wireless receiving module, which can be controlled by remote control and free sticker switch

10. Adopt the code switch address setting, which is convenient and quick.

11. Built-in clock chip can realize local timing control.

12. Support 99% of 485 switches on the market, dry contact switches, and sensor linkage



Support multiple communication modes

Support 485 protocol, MODBUS protocol, TCP/IP protocol, UDP protocol, MQTT protocol and other communication interfaces RS485 bus, RJ45 network cable, WIFI, GPRS, 315M, 433M

PRODUCT PARAMETERS

【Appearance size】92.5*76.2*60.5mm

【Installation method】 Standard DIN35 rail installation

【Working voltage】 DC12V (5-24V can be customized)

【Load current】 resistive load>16A, inductive load>8A, capacitive load>8A

【Environment temperature】-20°C~80°C

【Number of output channels】8

【Number of input channels】8

【Communication mode】 485 bus, RJ45 network cable, WiFi, GPRS, 315M, 433M, etc.

【Communication protocol】485 protocol, modbus protocol, TCP/IP protocol, UDP protocol, MQTT protocol, etc.

【Programming mode】PC software

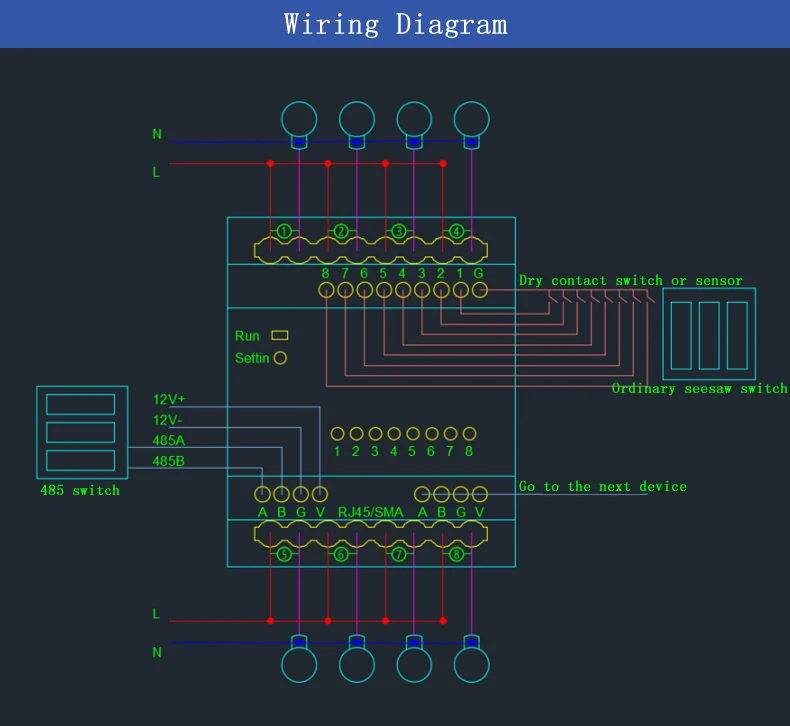

1. Relay 1-4 output

2. Dry contact input G and 1-8 short contact hair

3. Operation and network indicator

4. Button reserved

5. Relay status indicator

6. Relay 5-8 output

7. Power supply and 485, a=485a+, b=485b-, g=12V-, v=12v+


Device ID

Address setting

There is a 4-position side switch on this module. The factory address defaults to 0, and the address can be set to 0-15.


Note: The newly set ID address will take effect after the device is powered off and restarted



Control instruction

[Baud rate] 9600 [Check digit] N [Data bit] 8 [Stop bit] 1

All hexadecimal commands

Among them, "ID" represents the set ID address, and 0x00 is the broadcast code

Eight-way relay


Close the first road 55 00 12 00 00 00 01 68

Close the second road 55 00 12 00 00 00 02 69

Close the third road 55 00 12 00 00 00 03 6A

Close the fourth road 55 00 12 00 00 00 04 6B

Close the fifth road 55 00 12 00 00 00 05 6C

Close the sixth road 55 00 12 00 00 00 06 6D

Close the seventh road 55 00 12 00 00 00 07 6E

Close the eighth road 55 00 12 00 00 00 08 6F


Disconnect the first road 55 00 11 00 00 00 01 67

Disconnect the second road 55 00 11 00 00 00 02 68

Disconnect the third road 55 00 11 00 00 00 03 69

Disconnect the fourth road 55 00 11 00 00 00 04 6A

Disconnect the fifth road 55 00 11 00 00 00 05 6B

Disconnect the sixth road 55 00 11 00 00 00 06 6C

Disconnect the seventh road 55 00 11 00 00 00 07 6D

Disconnect the eighth road 55 00 11 00 00 00 08 6E


Flip the first way 55 00 20 00 00 00 01 76

Flip the second way 55 00 20 00 00 00 02 77

Flip the third way 55 0020 00 00 00 03 78

Flip the fourth way 55 00 20 00 00 00 04 79

Flip the fifth road 55 00 20 00 00 00 05 7A

Flip the sixth way 55 00 20 00 00 00 06 7B

Flip the seventh road 55 00 20 00 00 00 07 7C

Flip the eighth way 55 00 20 00 00 00 08 7D
