• Pixhawk PRO PX4 32 Bit Flight Controller with GPS OLED Module for Autopilot RC Quadcopter Airplanes

Pixhawk PRO PX4 32 Bit Flight Controller with GPS OLED Module for Autopilot RC Quadcopter Airplanes

Availability: In stock, usually dispatched in 1 business day

  • Price:$142.75
  • Price in reward points: 1428 Reward Points: 14
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $139.90 $137.04 $132.76 $127.05 Contact US
Quantity:

Pixhawk PRO PX4 32 Bit Flight Controller with GPS OLED Module for Autopilot RC Quadcopter Airplanes

Description:

Pixhawk PRO supports the latest official firmware for Ardupilot and PX4.

Features:
- Advanced 32-bit high-performance processors (2MB flash) for ARM CortexM4 can run RTOS real-time operating system for NuttX.
- 14 PWM / servo output
- Bus interface (UART, I2C, SPI and CAN)
- The integrated backup power and backup controller fails, the primary controller fails over to the backup control is safe
- Provide automatic and manual modes
- Provide redundant power input and fail-over
- Multi-color LED lights
- Provide multi-tone buzzer interface
- Micro SD recording flight data
- Type-C USB port
- GH1.25 port

Interfaces:
- 5 high voltage compatible UART 1 and 2 with hardware flow control
- 2 CAN
- Spektrum DSM / DSM2 / DSM-X satellite receiver compatible input
- For Futaba SBUS compatible inputs and outputs
- PPM signal input
- RSSI (PWM or voltage) input
- I2C
- SPI
- 3.3 and 6.6VADC input
- External type-c USB interface

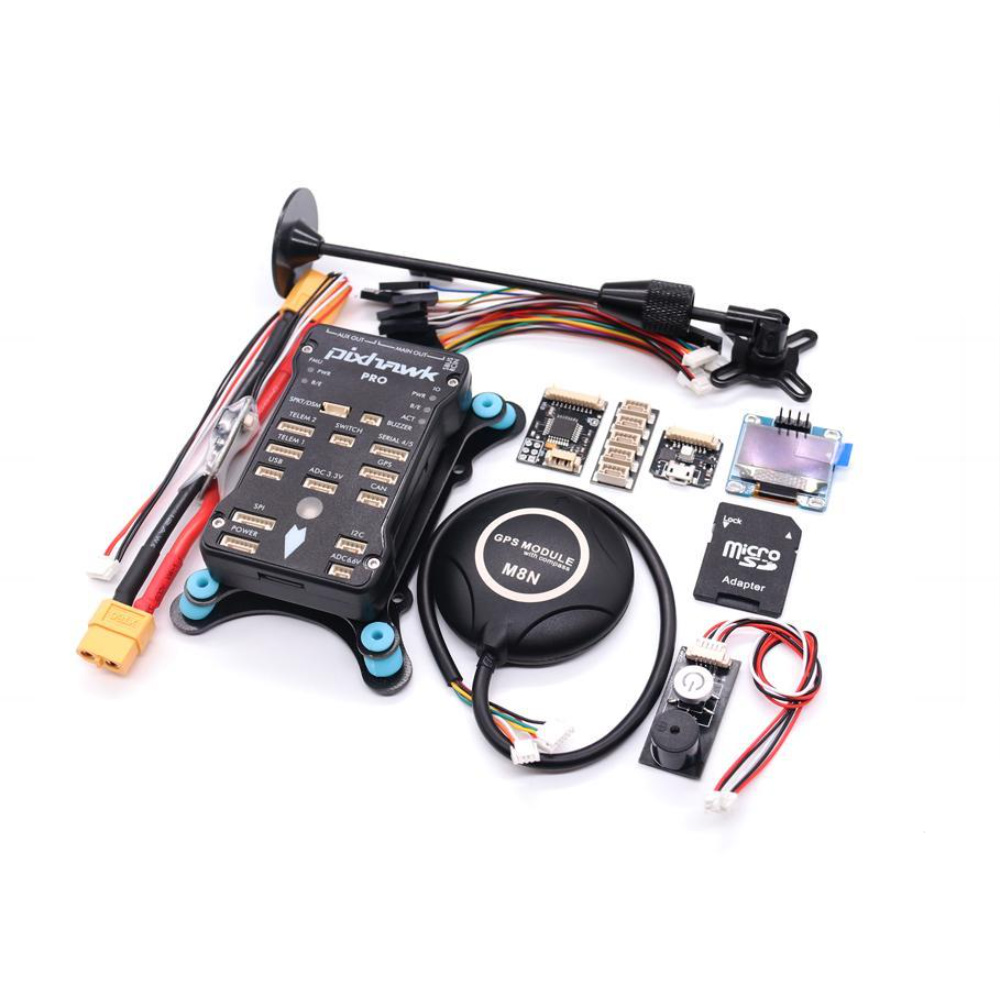

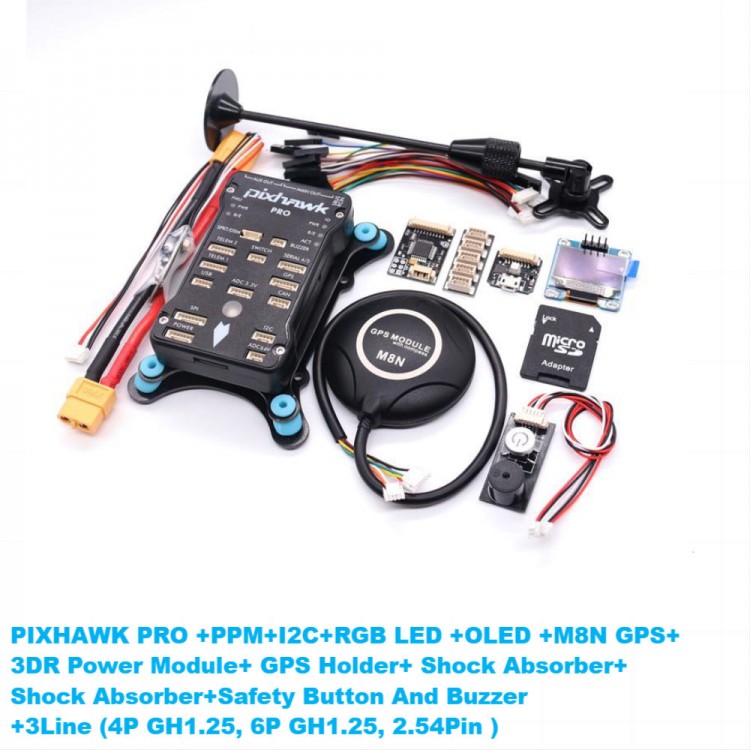

Package Included:
- 1 x Pixhawk PRO
- 1 x PPM board
- 1 x I2C board
- 1 x RGB LED module

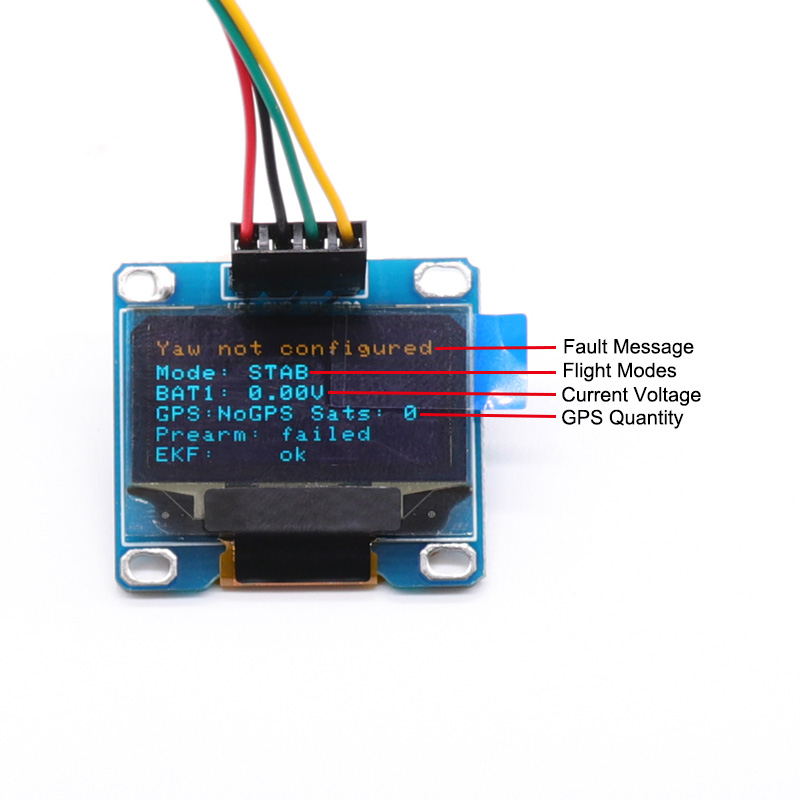

- 1 x OLED module
- 1 x Safety button and buzzer
- 1 x TF card and SD card adapter
- 1 x Vibration damper plate for flight controller
- 1 x 3DR power module
- 1 x GPS holder
- 1 x M8N GPS
- 3 x Cables (4P GH1.25, 6P GH1.25 and 2.54Pin)
- Other cables pictured
