Pixhawk PX4 2.4.6(2.4.5) 32 bit ARM Flight Controller & NEO-6M GPS & 8G TF Card for RC Multicopter

Availability: In stock, usually dispatched in 1 business day

  • Price:$99.99
  • Price in reward points: 1000 Reward Points: 10
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $97.99 $95.99 $92.99 $88.99 Contact US
Quantity:

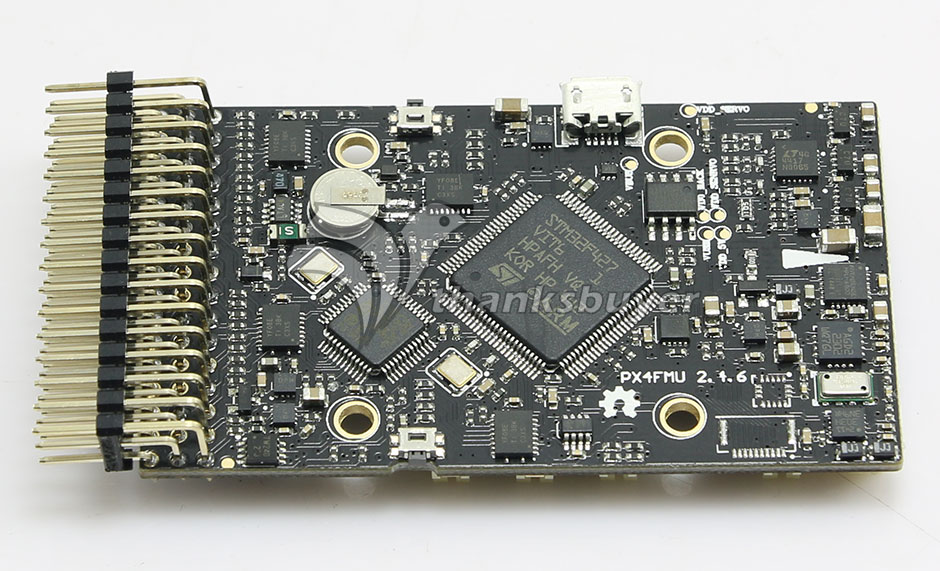

Pixhawk PX4 2.4.6 32 bit ARM Flight Controller & NEO-6M GPS & 8G TF Card for RC Multicopter

Pixhawk 2.4.6 Description:
Compare to the old version 2.4.5, this newest version make several improvements.

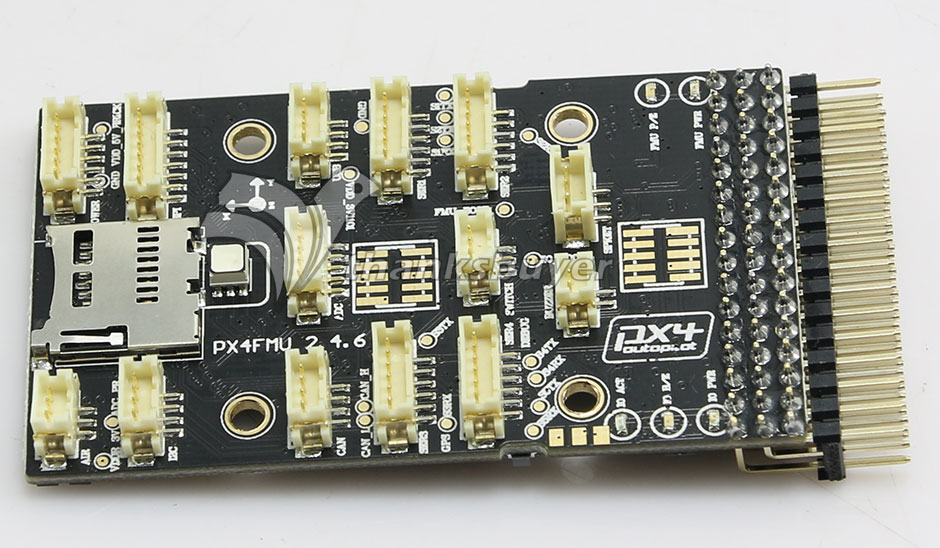

- SD card base adopts deadlock function. SD card will not be easily taken out unless press the SIM
- The front jacks all adopts imported the gilded needle, has better contact resistance, more stable and reliable
- NEC original tantalum capacitor is added in back compass and main power supply, making each sensor has stable power supplying and lesser possibility of aircraft crashing
- The same matte black gold plate as the original version, high quality
- PIXHAWK intergrated the newest 32 bit chip technology and sensor technology, get rid of the dilemma of having only 8 bit CPU of APM, and CPU occupancy being too high





Features:
- with external LED -Dual Size full angle LED
- Advanced 32 bit ARM CortexM4 high performance processer, can operate NuttX RTOX real time operation system
- 14 PWM/ Servo Output
- Bus interface(UART,I2C,SPI,CAN)
- Intergrated back up power and lose efficacy controller, main controller lose efficacy can safely alter to back up control
- Providing automatic and manual mode
- Providing redundant power supply input and failover
- Multicolor LED light
- Providing multi sound buzzer interface
- Micro SD records flying data

Hardware parameters

Processor:
- 32 bit 2M flash memory STM32F427 Cortex M4, with hardware floating point processing unit
- Main frequency: 168MHZ,256K RAM
- 32 bit STM32F103 back up processor

Sensor:
- L3GD20H 3 axis digital 16 bit gyroscope
- LSM303D 3 axis 14 acceleration/magnetometer
- MPU6000 6 axis acceleration/magnetometer
- MS5611 high precision barometer

Interface:
- 5 UART, one compatible high voltage, two have hardware flow control
- Two CAN
- Spektrum DSM/ DSM2/ DSM-X satellite receiver compatible input
- Futaba SBUS compatible input and output
- PPM signal input
- RSSI(PWM or voltage) output
- I2C
- SPI
- 3.3 and 6.6VADC input
- External MICRO USB interface

NEO-6M GPS Specification: (6M GPS for Pix Link)
- Inner chip UBLOX NEO 6M
- With EEPROM memory funcion
- Baud rate 4800-115200
- Refresh rate 1-5Hz
- Cable length 25cm
- Support rod length: 12cm
- Red cable- VCC
- Black cable- GND
- Yellow cable- TXD
- Green cable- RXD

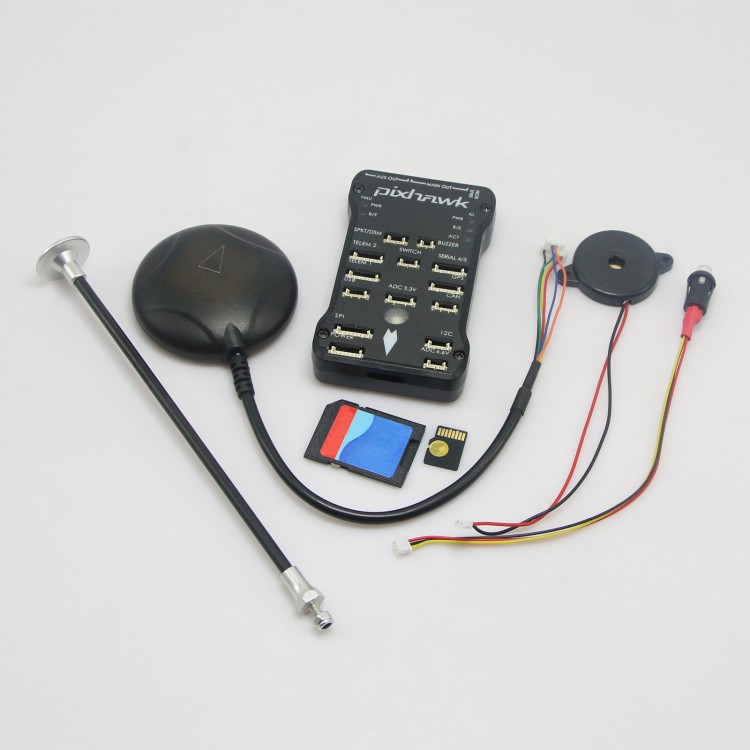

Package List:
- Pixhawk px4 2.4.6 32 bit ARM Flight Controller   X  1pcs
- Original shell  X  1pcs
- Buzzer  X  1pcs
- Safety button  X  1pcs
- NEO-6M GPS for Pixhawk PX4  X  1pcs
- 8G TF Card (IO firmware has written)  X  1pcs
