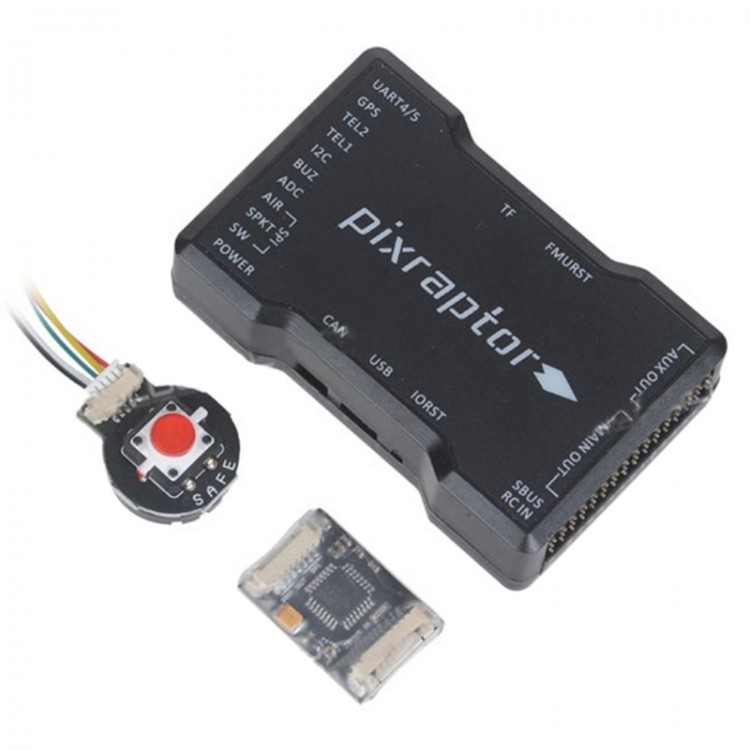

Pixraptor Flight Controller with Buzzer Safe Switch PPM Coder for RC

Availability: In stock, usually dispatched in 1 business day

  • Price:$121.95
  • Price in reward points: 1220 Reward Points: 12
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $119.51 $117.07 $113.41 $108.54 Contact US
Quantity:

Pixraptor Flight Controller with Buzzer Safe Switch PPM Coder for RC

Pixraptor flight controller

Sensor configuration:
- ST Micro L3GD20H 16 gyroscope
- InvenSense MPU6000 six-axis gyro accelerometer
- ST Micro LSM303D 14 accelerometer / magnetometer
- MEAS MS5611 barometer

Interface configuration:
- 5-channel UART serial port, serial port 1 supports high power output, serial port 1 and 2 support hardware flow control
- 2-way CAN bus output (CAN1 has an internal 3.3V transceivers on the serial interface CAN2 complex 3 in)
- Compatible Spektrum DSM / DSM2 / DSM-X® satellite receiver input
- Compatible with Futaba S.BUS bus input and output
- PPM PPM signal input
- RSSI signal strength indicator input (supports PWM mode or voltage mode)
- 1 Road I2C output, via breakout board for multiple extensions
- 1-way SPI output
- 1-way and one-way 3.3V 6.6V ADC input

Power and protection measures
- LTC4417 Triple priority power control system, superior to conventional simple diode scheme
- Servo interface supports high voltage and high current (up to a maximum 7V)
- All outputs are equipped with overcurrent protection, input interface is provided with anti-static ESD protection

Size:
- Weight: 63 g (with built-in only 8 g shock counterweight)
- Dimension: 78*49*21mm

Buzzer safe switch:
- Integrated design , just need to stick it double-sided adhensive

Package included:
- 1 * Pixraptor Flight Controller
- 1 * Buzzer safe swithc
- 1 * PPM Encoder
