Pixy CMUcam5 Sensor Smart Vision For Lego Version EV3 NXT

Availability: In stock, usually dispatched in 1 business day

  • Price:$146.39
  • Price in reward points: 1464 Reward Points: 15
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $143.46 $140.53 $136.14 $130.29 Contact US
Quantity:

Pixy CMUcam5 Sensor Smart Vision For Lego Version EV3 NXT

Features:

- Pixy uses a hue-based color filtering algorithm to detect objects. Pixy calculates the hue and saturation of each RGB pixel from the image sensor and uses these as the primary filtering parameters
- Pixy remembers up to 7 different color signatures. If you need more than seven, you can use color codes (see below)
- Pixy can find literally hundreds of objects at a time
- Pixy processed an entire 640x400 image frame every 1/50thof a second
- You can get a complete update of all detected objects’ positions every 20 ms
- Pixy is unique because you can physically teach it what you are interested in sensing

PixyMon

PixyMon is an application that runs on your PC or Mac. It allows you to see what Pixy sees, either as raw or processed video. It also allows you to configure your Pixy, set the output port and manage color signatures. PixyMon communicates with Pixy over a standard mini USB cable.

What’s a "color code"?
A color code (CC) is two or more color tags placed close together. Pixy can detect and decode CCs and present them as special objects. CCs are useful if you have lots of objects you want to detect and identify (i.e. more than could be detected with the seven separate color signatures alone).

Specifications:

- Processor: NXP LPC4330, 204 MHz, dual core
- Image Sensor: Omnivision OV9715, 1/4”, 1280x800
- Lens Field-of-view: 75° horizontal, 47° vertical
- Lens Type: standard M12 (several different types available)
- Power Consumption: 140 mA typical
- Power Input: USB input (5V) or unregulated input (6V TO 10V)
- RAM: 264K bytes
- Flash: 1M bytes
- Available Data Outputs: UART serial, SPI, I2C, USB, digital, analog
- Dimensions: 2.1” x 1.75” x 1.4”

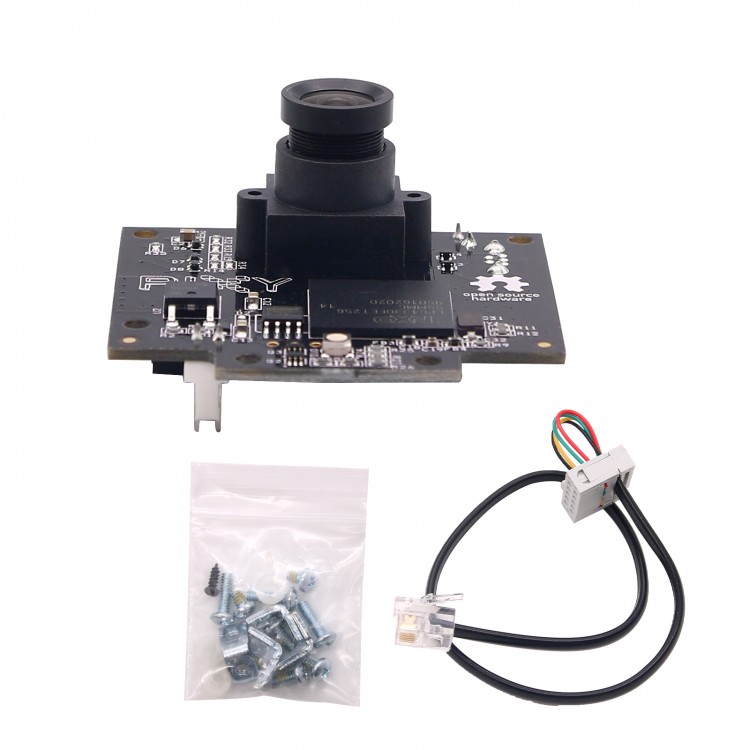

Package Included:
- 1 x Pixy CMUcam5 Sensor
