| Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
|---|---|---|---|---|---|
| Price /Unit | $443.80 | $434.75 | $421.16 | $403.05 | Contact US |
Rated DC output（0-40 degree）
- Voltage:0-75V
- Current:0-5A
- Over-voltage protection:0.1~80V
- Over-current:0.1~5.5A
Voltage output:
- Power effect:<=0.01%+3mV
- Load effect:<=0.01%+3mV(1<=3A)/<=0.02%+5mV(1>3A)
- Recovery time:<=100us(50% load change,minimum load 0.5A)
- Ripple & Noise:<=1mVrms(1<=3A)(5Hz~1MHz)/<=2mVrms(1>3A)(5Hz~1MHz)
- Temperature coefficient:<=100ppm/degree
- Setting precision:+-(0.03% of reading+10mV)(25+-5degree)
- Setting resolution:2mV
Current output:
- Power effect:<=0.2%+3mV
- Load effect:<=0.2%+3mV(1<=3A)/<=0.2%+5mV(1>3A)
- Ripple & Noise:<=3mArms(1<=3A)/<=6mArms(1>3A)
- Setting precision:+-(0.2% of reading+10mA)(25+-5degree)
- Setting resolution:0.1mA
Display:
- Voltage:5 digits display
- Current:5 digits display
- Voltage resolution:1mV
- Current resolution:0.1mA
- Reading accuracy:+-(0.02% of reading +5mV)(25+-5degree);+-(0.02% of reading +5mA)(25+-5degree);
Other characteristics:

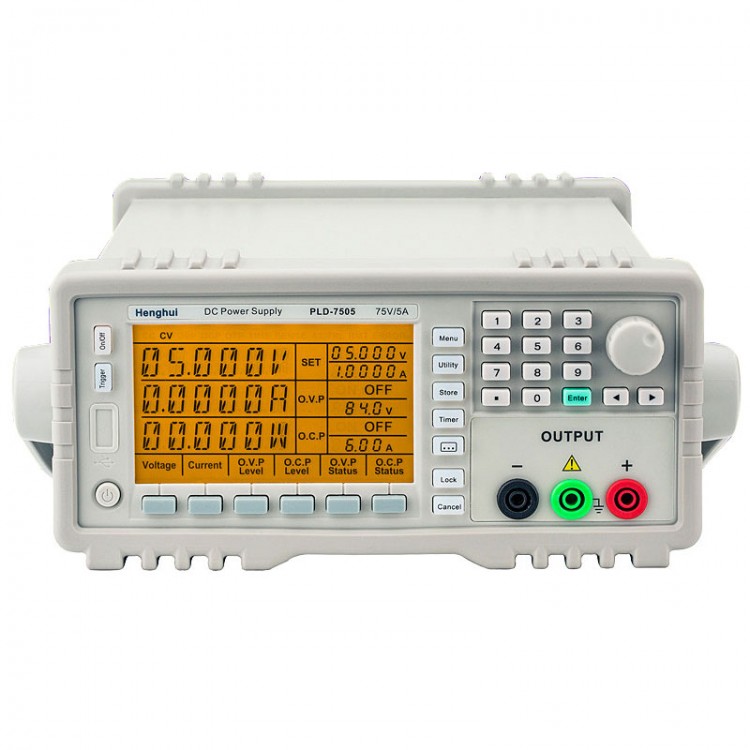

- Model:PLD-7505
- Output range:75V/5A
- Power:375W
- Protection:over-load protection,inverse protection,over voltage protection,over current protection,over temperature protection.
- Interface:standard RS232,support SCPI;analog control interface,optional.
- Power supply:AC 110V/220V+-10%,50/60Hz
- Size:352x215x89mm(DxWxH)
- Weight:8kg
Package List:
- 1 x DC Power Supply
- 1 x Power cable
- 1 x Cable
- 1 x User manual
