Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $9.00 | $8.81 | $8.54 | $8.17 | Contact US |

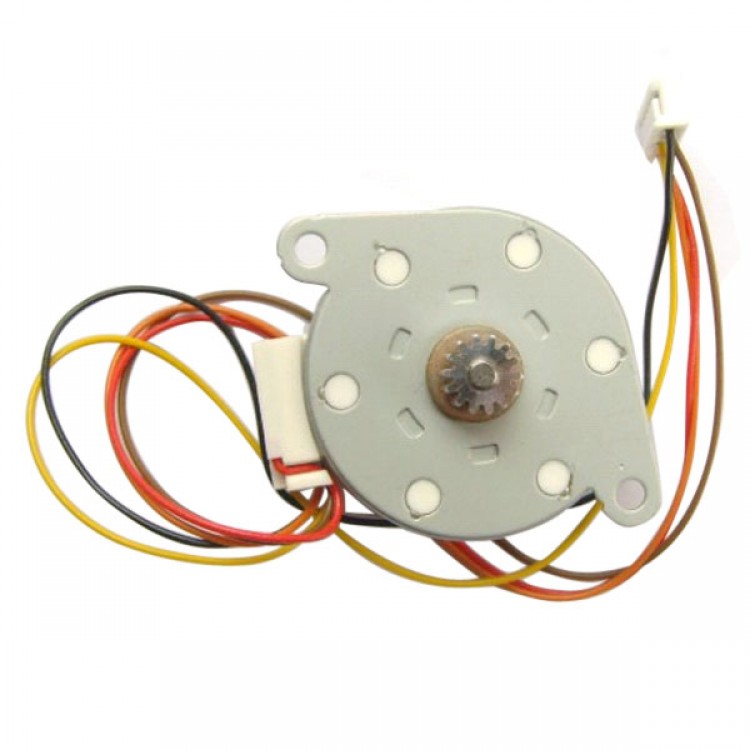

PM35S-048 Stepper Motor 5 Wire Magnet Stepper Motor
Specfications:
Motor Size
|
PM35S-048
|
|
Number of Steps per Rotation
|
48(7.5/Step)
|
|
Drive Method
|
2-2 PHASE
|
|
Drive Circuit
|
UNIPOLAR CONST. VOLT.
|
BIPOLAR CHOPPER.
|
Drive Voltage
|
24[V]
|
24[V]
|
Current/Phase
|
|
600[mA]
|
Coil Resistance/Phase
|
50[]
|
6.6[]
|
Drive IC
|
2SC3346
|
UDN2916B-V
|
Magnet Material
|
Ferrite plastic magnet (MSPL)
Polar anisotropy ferrite sintered magnet(MS50) Nd-Fe-B bonded magnet (MS70) |
|
Insulation Resistance
|
100M[] MIN
|
|
Dielectric Strength
|
AC 500[V] 1[min]
|
|
Class of Insulation
|
CLASS E
|
|
Operating Temp.
|
-10[] ~ 50[]
|
|
Storage Temp.
|
-30[] ~ 80[]
|
|
Operating Hum.
|
20[%] RH ~ 90[%] RH
|
