POELidar-P1 Professional Interactive Radar POE Technology Sturdy Shell Easy Debugging Cut Down Costs

POELidar-P1 Professional Interactive Radar POE Technology Sturdy Shell Easy Debugging Cut Down Costs

Features:
Tailored for the interactive field.

POE technology, one line solves problems.
* POE technology, only one line is needed.
* First to introduce POE technology to radar.
* A network cable provides power supply and data transmission at the same time.
* No need to deploy power strips, power cord conversion modules, data cables, etc.
* In case the wiring is damaged, the POE technology will power off intelligently to ensure safety.
* Simple wiring, so the system is more stable.

Comes with a protective cover, not afraid of trampling damage.
* The protective cover is all metal processing, and can bear the weight of an adult.

Comes with calibration procedures.
* Integrated professional radar interactive software for LidarTouch, you don't need to care about the underlying conditions of the radar, you can use it directly, and the program interface supports almost all mainstream interactive solutions.
* The software has helped thousands of customers and runs stably in a large number of interactive projects.
* The software will continue to be updated, and you will continue to obtain many complex functions for free, and you will also be able to obtain other project functions for free in the future.

Extensive multi-touch interface support.
* Mouse simulation: simulate mouse click, drag and move.
* Multi-touch: support protocol for TUIO, multi-point protocol for Windows, mouse pseudo multi-point function.
* Point support: ①for TUIO protocol, no point limit ②for Windows multi-point support up to 256 points.
* Application interface: for Unity, Flash, Processing, C#, C++ and other interactive content development software.

Support all interactive mainstream programs.
* Interactive area:
  ①Support standard rectangular or square area interaction.
  ②Support interaction in special-shaped areas, such as random shapes such as circles and trapezoids.
  ③Support overlapping coverage of multiple radar scanning areas.
  ④Support plane, L-shape, tri-fold and arc.
* Display devices:
  ①Support projector, single projection or multiple fusion.
  ②Support LED screen, any size screen, splicing screen, floor tile screen, pixel screen, etc.

Stable multi-radar cascade.
* One computer can support more than 20 radars cascaded to work at the same time.
* Many radars use network communication, and use POE technology to facilitate wiring and reliable transmission.
* Professionally solve the mutual interference problem between multiple radars.
* Multi-radar can support curved surface.
* Multi-radar supports overlapping, overlapping, spacing, etc. of radar areas.
* Actual scene support: L-shaped screen, three-fold screen, full room immersion, long corridor, arc cascade, etc. Unless limited by hardware principles, there are basically no scenarios that cannot be done.

Debugging is simple and only takes 10 minutes.
* Concise and easy to use, quick to master.
* It can be debugged even with zero foundation, without on-site support.
* Easily and quickly achieve the desired results.

Long-term stability, reduce costs.
* The radar ranging core used in this professional interactive radar itself has been used extensively in the industry, and with special optimization, it has better stability.
* The POE one-line solution makes the external equipment extremely simple, reduces error links, and further improves stability.
* The integrated software for LidarTouch has good stability and has a large number of users and cases in the industry.
* No or very little maintenance is needed later.

Accurate parameter labeling.

Product Parameters:
Ranging parameters:
- Radius: >5M (practical radius)
- Touch accuracy: typical value <2CM (5M long wall, under the condition of good installation of the radar wall). Typical value <5CM (10M long wall, under the condition of good installation of the radar wall)
- Detection frame rate: 10FPS
- Scanning angle: 200°

Multi-point Interactive Parameters:
- Mouse simulation: simulate mouse click, drag and move
- Multi-touch: for TUIO protocol, windows multi-point protocol, mouse pseudo multi-point function
- Point support: for TUIO protocol no point limit, for windows multipoint support up to 256 points
- Application interface: for UNITY, C#, C++, processing and other software
- Interactive area:
* Support standard rectangular or square area interaction
* Support special-shaped area interaction, including random shapes such as circles, trapezoids, polygons, etc.
* Support multi-radar scanning area overlap coverage
* Support plane, tri-fold, L-shaped and curved surface (realized by multi-radar cascade)
- Multi-radar cascade: one computer can support more than 20 radars cascaded to work at the same time

Interfaces:
- Power supply interface: network port, POE protocol power supply through network cable
- Data interface: network port, POE protocol transmits data through network cable
- Transmission distance: >100M
- POE standard: IEEE 802.3AF
- Network cable requirements: Category 6 network cable or better-quality network cable

Software Auxiliary Functions:
- Playlist: The interactive game program can be called to play repeatedly, and different programs can be set with different protocols and playing duration
- Startup: Run the touch system when the computer is turned on, and the radar will automatically turn off when the computer is turned off

Other Parameters:
- Operating temperature: 0~40°C

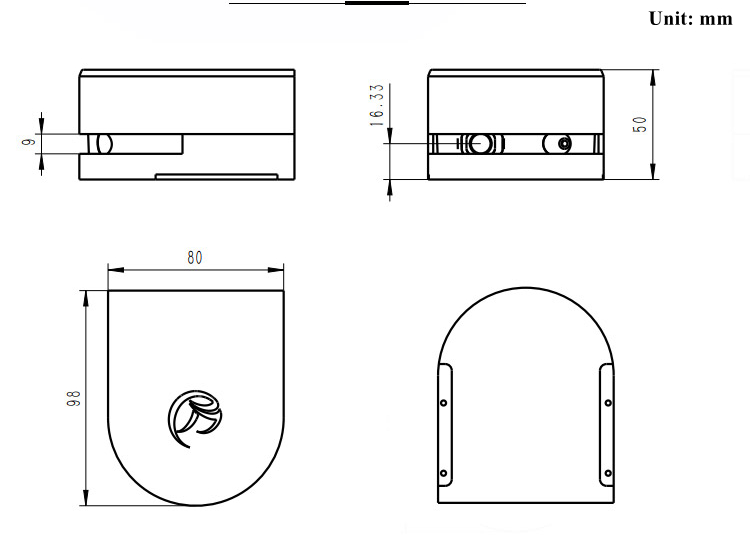

- Product size: 98mm*80mm*50mm
- Shell protection: aluminum alloy shell, can bear the weight of adults
- Weight: 500g
- Storage temperature: 0~50℃

Package Included:
- 1 x Interactive Radar

Note:
- Optional colors: Black, Silver. Please choose the color you want when purchasing. Thank you!
