Portable No Tune End Fed Half Wave Antenna EFHW Antenna Kit Unassembled For Radio Communications

Availability: In stock, usually dispatched in 1 business day

  • Price:$13.57
  • Price in reward points: 136 Reward Points: 1
  • Quantity 3+ units 10+ units 30+ units 50+ units More
    Price /Unit $13.30 $13.03 $12.62 $12.08 Contact US
Quantity:

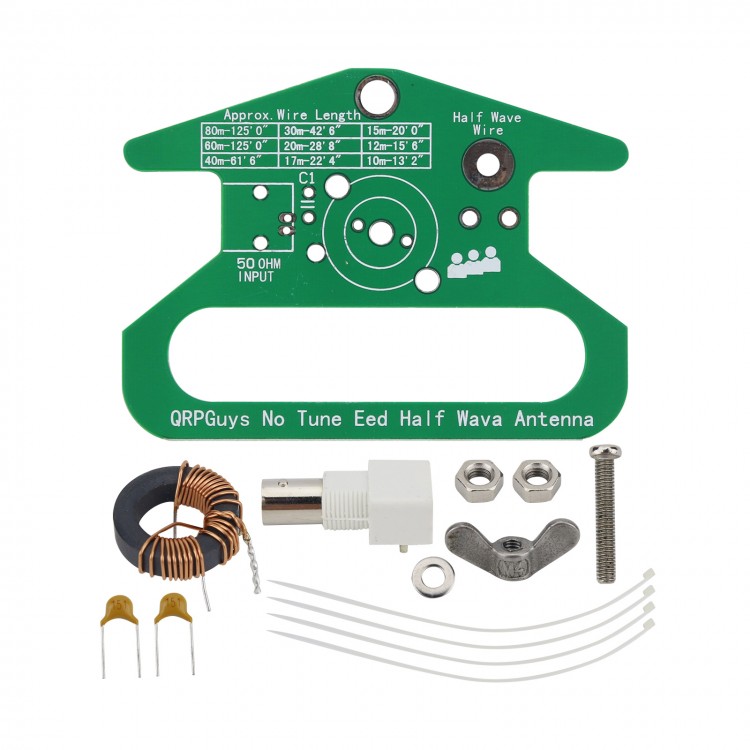

Portable No Tune End Fed Half Wave Antenna EFHW Antenna Kit Unassembled For Radio Communications

Description:

It is a single-band 80m-10m end-fed half-wave linear antenna. It is designed as a highly portable wired antenna that can be easily set up as an inverted V, horizontal, inclined or vertical radiator (in the case of higher frequencies). Your feeder line is essentially balanced, so there is no need for a separate feeder line. The high-impedance half-wave line is matched with your 50-ohm feed point through an integrated impedance matching toroidal transformer, and the rated power is 10W.

Use a high-voltage capacitor on the transformer primary with a specific radiator length to further expand and reduce SWR within the range of 80m-10m.

It is designed to be used without a tuner, and after optimizing the driven element, the SWR of any part of the frequency band is ≤ 1.2.

Specifications:
- Impedance: 50 ohms
- Size: 100*71mm

Package Included:

- 1 x Set of Antenna

Note: Assembling is needed.
