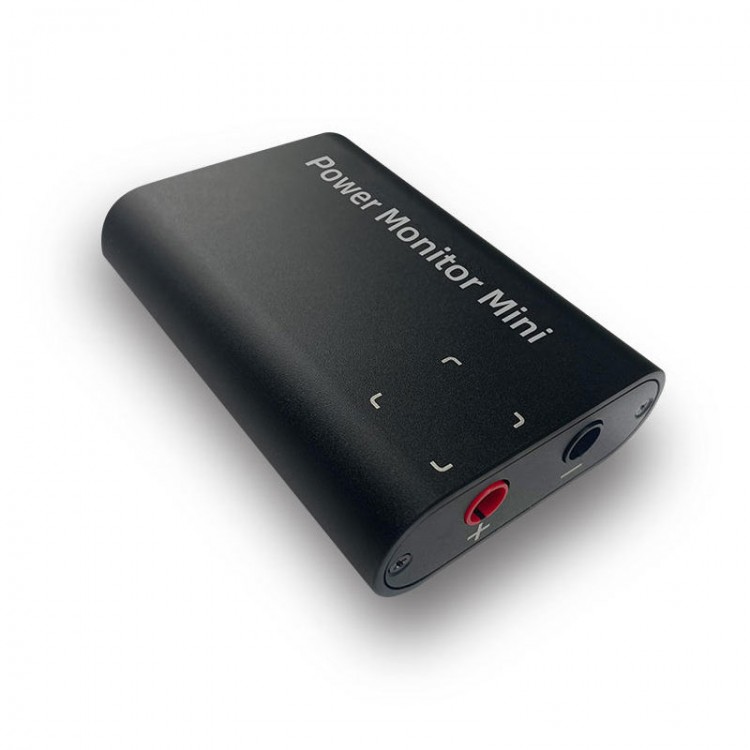

Power Monitor Mini nA/uA Low Power Consumption Analyzer Current Tester Support for Linux/Windows

Power Monitor Mini nA/uA Low Power Consumption Analyzer Current Tester Support for Linux/Windows

Features:
- Secondary development automation testing: supports Linux and Windows systems, provides C # Python, VB, C++ and other routines, and third-party programs can directly call the Windows DLL library.
- Support exporting data to Txt/XIs format or converting third-party power consumption data to egk format.
- Compatible with Esight upper computer, multiple tools can better analyze waveforms.
- Supports simultaneous playback and offset settings for two sets of waveform data, and can display voltage and current waveforms simultaneously.
- Supports Beijing timestamp, making it easy to view the actual testing time at any power consumption point.
- The ruler function is convenient to use, and the interface supports functions such as dragging, zooming, and selecting boxes at will.
- Trigger function, current limiting function, timing function, storage function.
- Application: power consumption evaluation of sensor devices, portable DC power supply scenarios, communication module/evaluation board testing/automation testing, power consumption of battery powered equipment, component selection evaluation, intelligent wearable devices, etc.
- For scenarios with mains sockets, it is recommended to use the standard 9V adapter for power supply; In outdoor scenarios where there is no mains power, a laptop can be used to directly power the Power Mini.
- During the testing process, various situations that may cause damage to the equipment should be fully protected: overcurrent protection, overvoltage protection, and short circuit protection.

Specification:
- DC interface voltage: 9 - 12V
- Type-A interface voltage: 5V
- Power Setting output: 0.6 - 6V
- Voltage ripple: max. 30mVpp
- Load regulation: 5%
- Output power: 25W

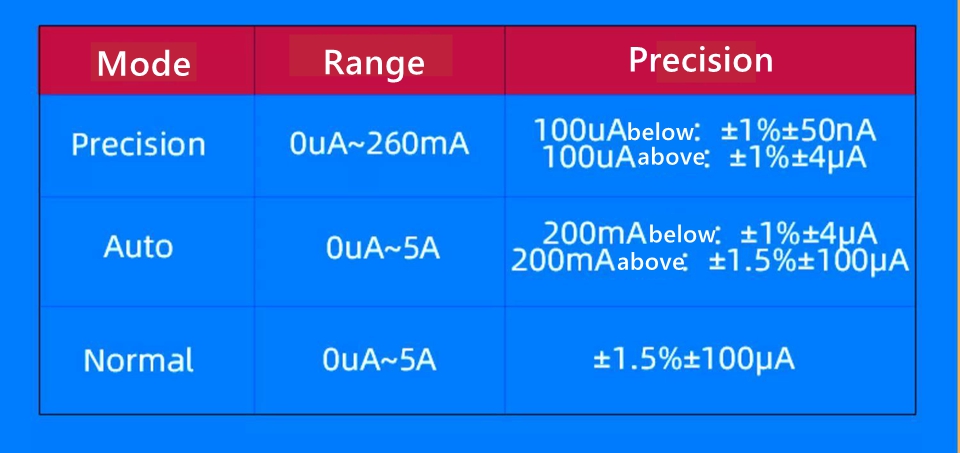

- Current monitoring range: nA - 5A
- Current resolution: nA - uA
- Current sampling rate: 5KHz
- Product size: 103 x 72 x 26mm
- Product weight: appr.180g
- Output protection: support
- Upgrade and optimization: support
- Operating temperature: -10℃ ~ 60℃
- Software tool: Esight (for Win7 and above)
- Communication interface: Type-A USB2.0
- Secondary development: support

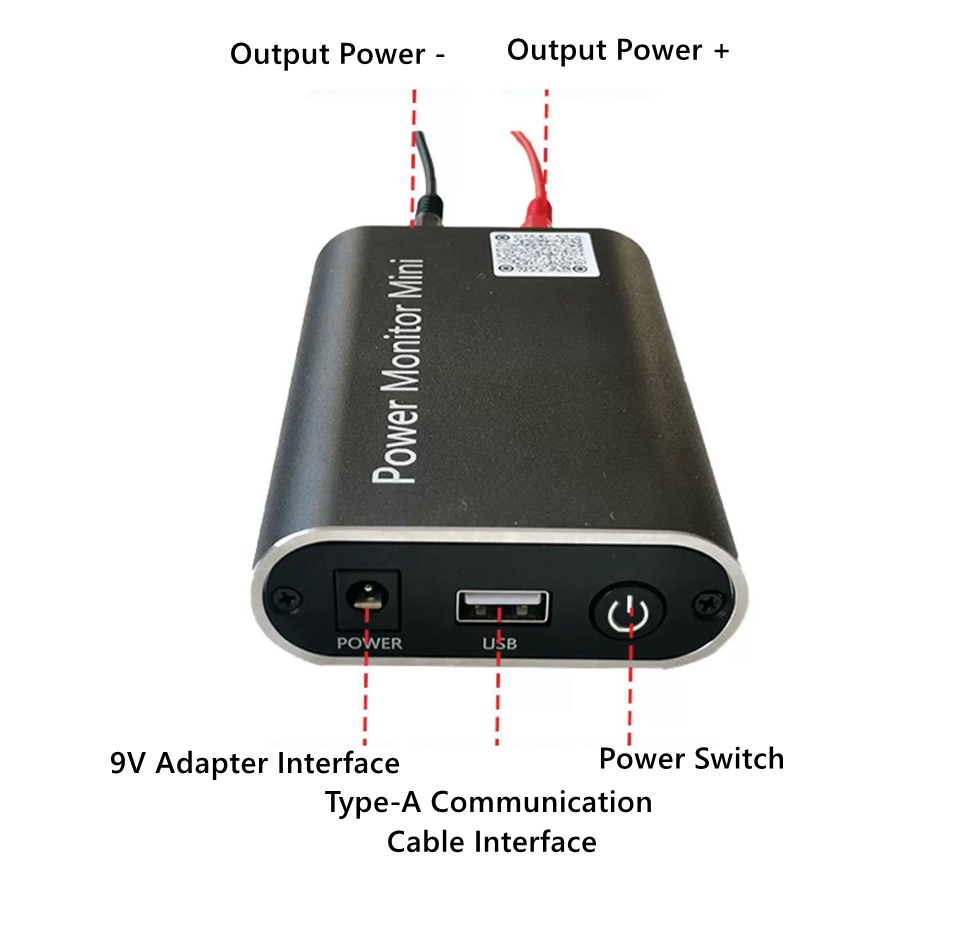

- Power supply mode: 9V power adapter, or Type-A USB power supply
- Main function: 0.6V - 6V power 50mV step adjustable output + current detection

Package Included:
- 1 x Power Monitor Mini
- 1 x Power Adapter
- 1 x Type-A Communication/Power Supply Cable
- 2 x Testing Cable

User Manual and Software:
- https://pan.baidu.com/s/1Efnoj_3gMDn_OJnm2Q9L9w?pwd=fr2k
