Tags: HDS1021M-N, Oscilloscope Multimeter
Quantity | 3+ units | 10+ units | 30+ units | 50+ units | More |
---|---|---|---|---|---|
Price /Unit | $234.90 | $230.10 | $222.91 | $213.32 | Contact US |

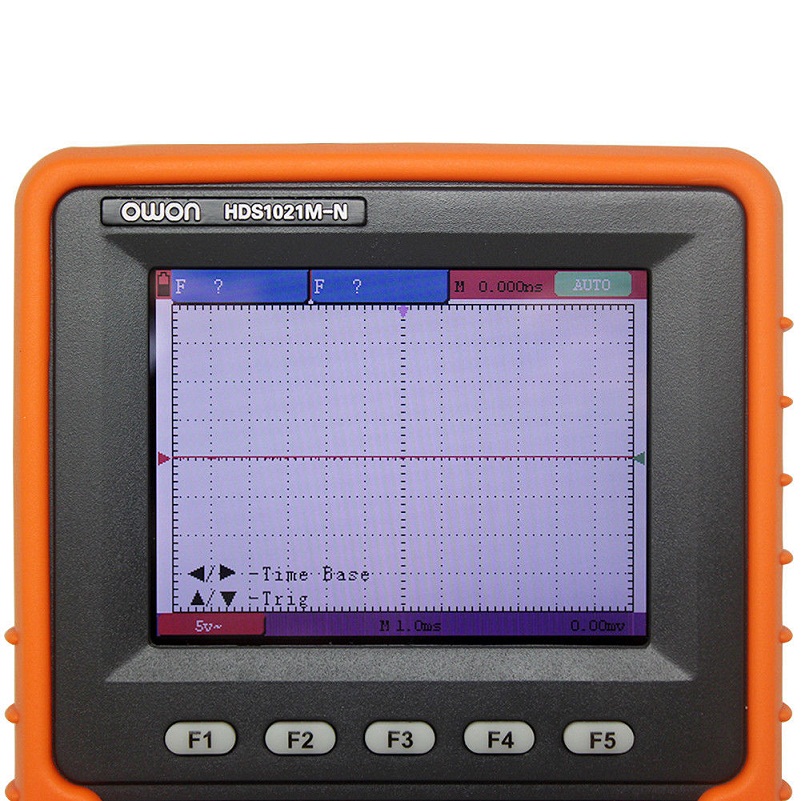

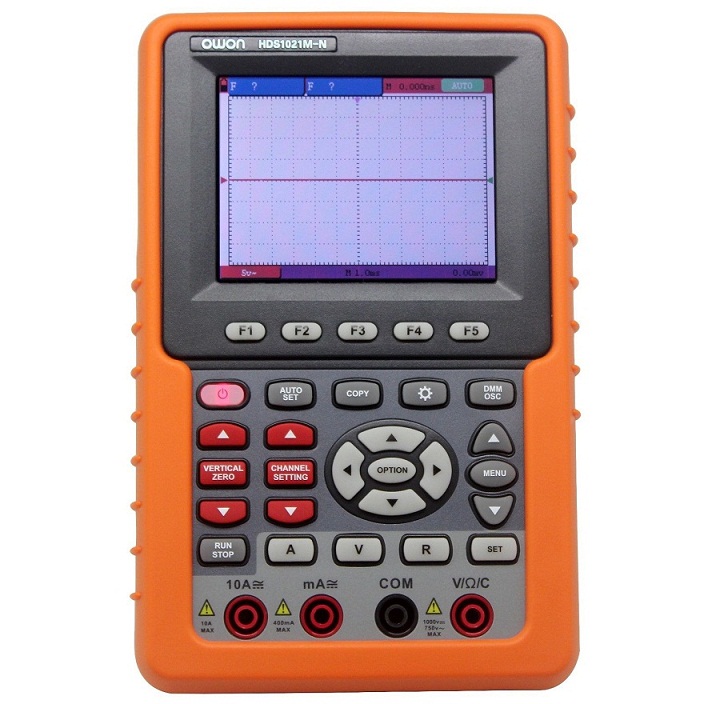

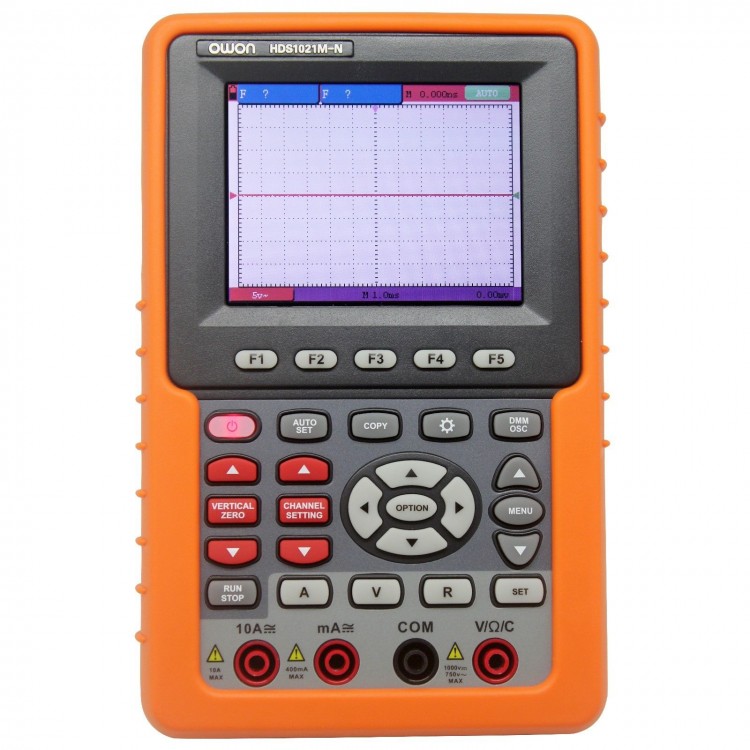

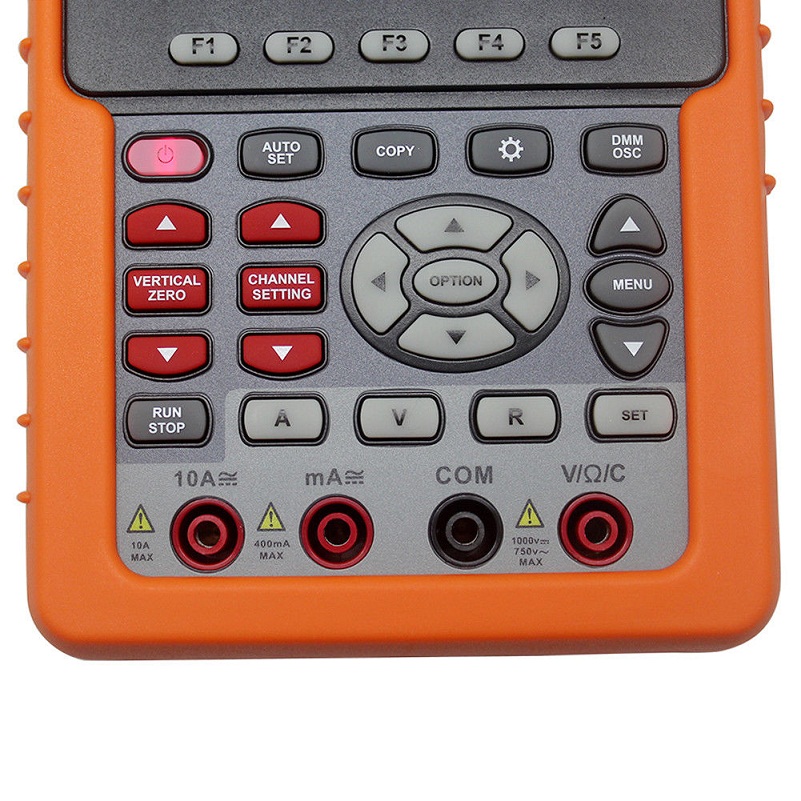

Product Description:
- HDS1021M-N 20MHz Handheld Digital Oscilloscope 2 in 1 Oscilloscope,Multimeter
- OWON HDS-N Series digital oscilloscope
- Product Series:Handheld DSO
Main Features:
- 2 in 1 (DSO + Multimeter)
- Auto-scale Function
- FFT
- 20 group automatic measurement options
- Bandwidth : 100MHz
- USB data transmission supported
- Multimeter newly supported SCPI
- Rechargeable Li-ion battery (6 hours' backup)
- Waveform record & replay
Application:
- Electronic circuit debugging
- Circuit testing
- Design and manufacture
- Education and training
- Automobile maintenance and testing
- Performance Specifications
Performance Specifications:
- Model:HDS1021M-N
- Bandwidth:20MHz
- Sample Rate (real time):250mS/s
- Horizontal Scale (s/div):5ns/div~100s/div, step by 1~2.5~5
- Rise Time (at input, typical):≤ 17.5ns
- Display:3.7 inch color display with TFT panel (640 × 480 pixels, 65535 colors)
- Channel:singel
- Input Impedance:1MΩ ± 2%, in parallel with 15pF ± 5pF
- Record Length:max 6K points on each channel
- Interpolation:sin (x) / x
- Probe Attenuation Factor:1X,10X,100X,1000X
- Input Coupling:DC, AC, and GND
- DC Accuracy (average):average >16: ±(5% reading + 0.05div) for V
- Vertical Sensitivity:5mV/div~5V/div (at input)
- Vertical Resolution (A/D):8 bits (2 channels simultaneously )
- Max Input Voltage:400V (PK - PK) (DC + AC, PK - PK, 1MΩ input impedance, probe attenuation 10 : 1), CAT II
- Trigger Type:Edge, Video, Alternate
- Trigger Mode:Auto, Normal, Single
- Trigger Level:±6 divisions from screen center
- Acquisition Mode:Sample, Peak Detect, and Average
- DC Gain Accuracy:±3%
- Waveform Math:+, -, ×, ÷, invert, FFT
- Waveform Storage:4 waveforms
- Lissajous:Figure
- Bandwidth:full bandwidth
- Phase Difference:±3 degrees
- Communication Interface:USB
- Power Supply:100V-240V AC, 50/60Hz
- Li-ion Battery:7.4V, 6 hours operation
- Dimensions (W × H × D):180 × 115 × 40 (mm)
- Weight (without package):645 g

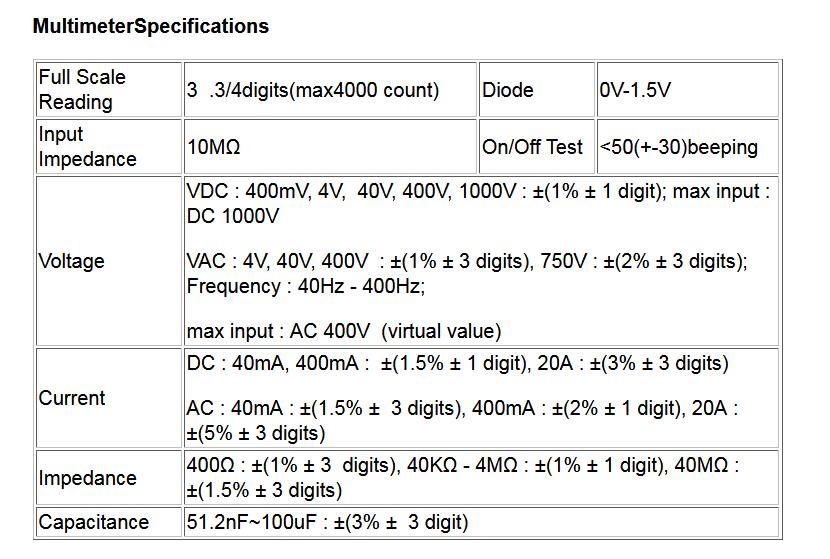

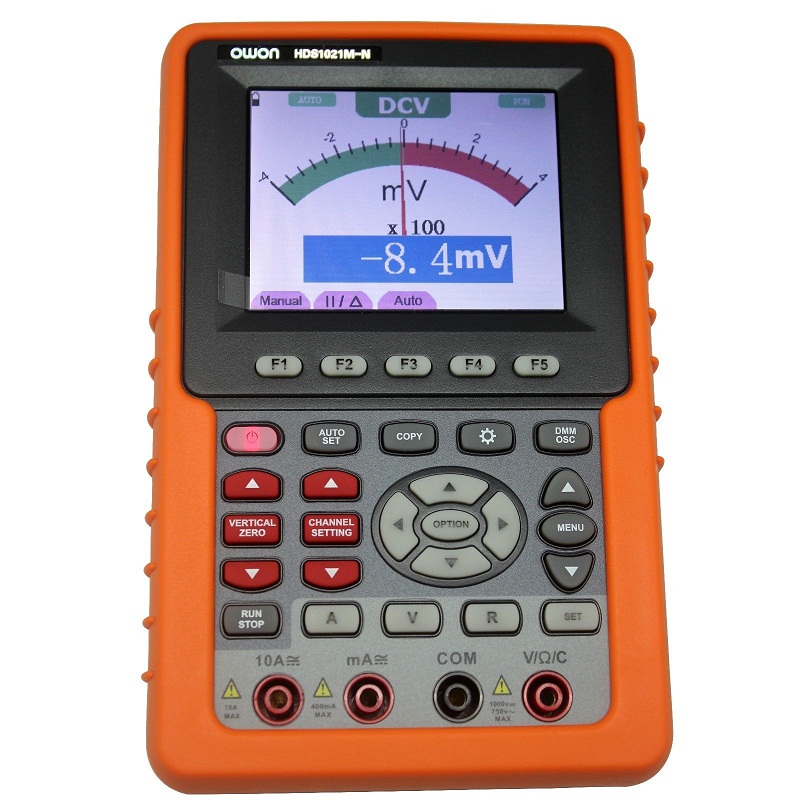

MultimeterSpecifications:
- Full Scale Reading:3 .3/4digits(max4000 count),Diode:0V-1.5V
- Input Impedance:10MΩ,On/Off Test,<50(+-30)beeping
- Voltage:VDC:400mV,4V,40V,400V,1000V: ±(1% ± 1 digit); max input : DC 1000V
VAC:4V,40V,400V: ±(1% ± 3 digits),750V: ±(2% ± 3 digits); Frequency:40Hz - 400Hz;max input:AC 400V (virtual value)
- Current:DC:40mA, 400mA : ±(1.5% ± 1 digit), 20A : ±(3% ± 3 digits);AC:40mA : ±(1.5% ± 3 digits), 400mA : ±(2% ± 1 digit), 20A : ±(5% ± 3 digits)
- Impedance:400Ω : ±(1% ± 3 digits), 40ΚΩ - 4ΜΩ : ±(1% ± 1 digit), 40MΩ : ±(1.5% ± 3 digits)
- Capacitance:51.2nF~100uF : ±(3% ± 3 digit)
Package List:

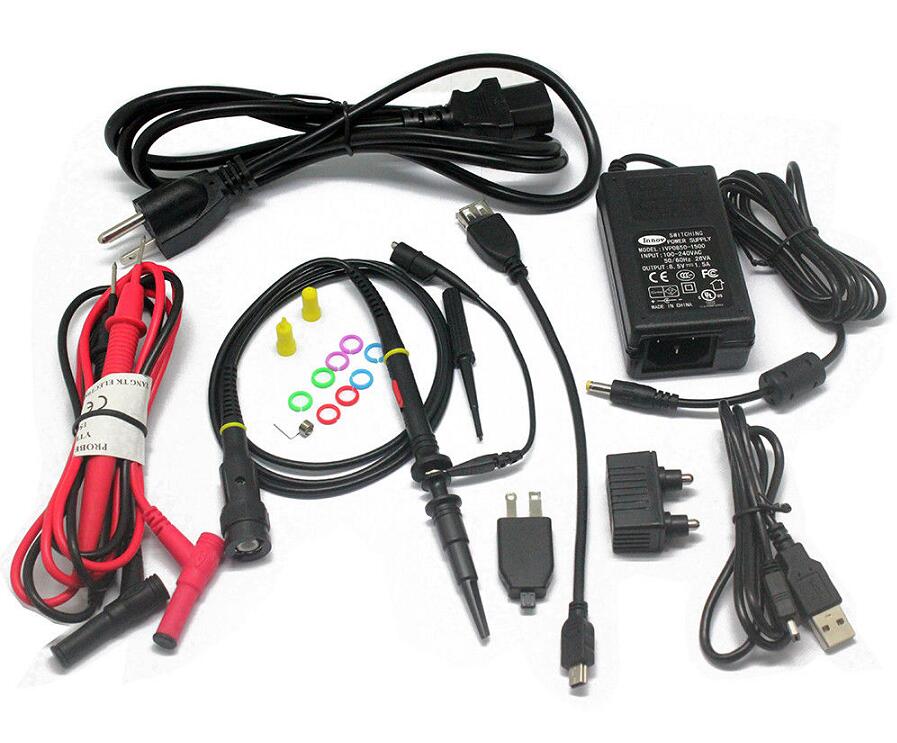

- 1 x HDS1021M-N DSO Digital Oscilloscope Multimeter
- 1 x Accessories
